Century Spring

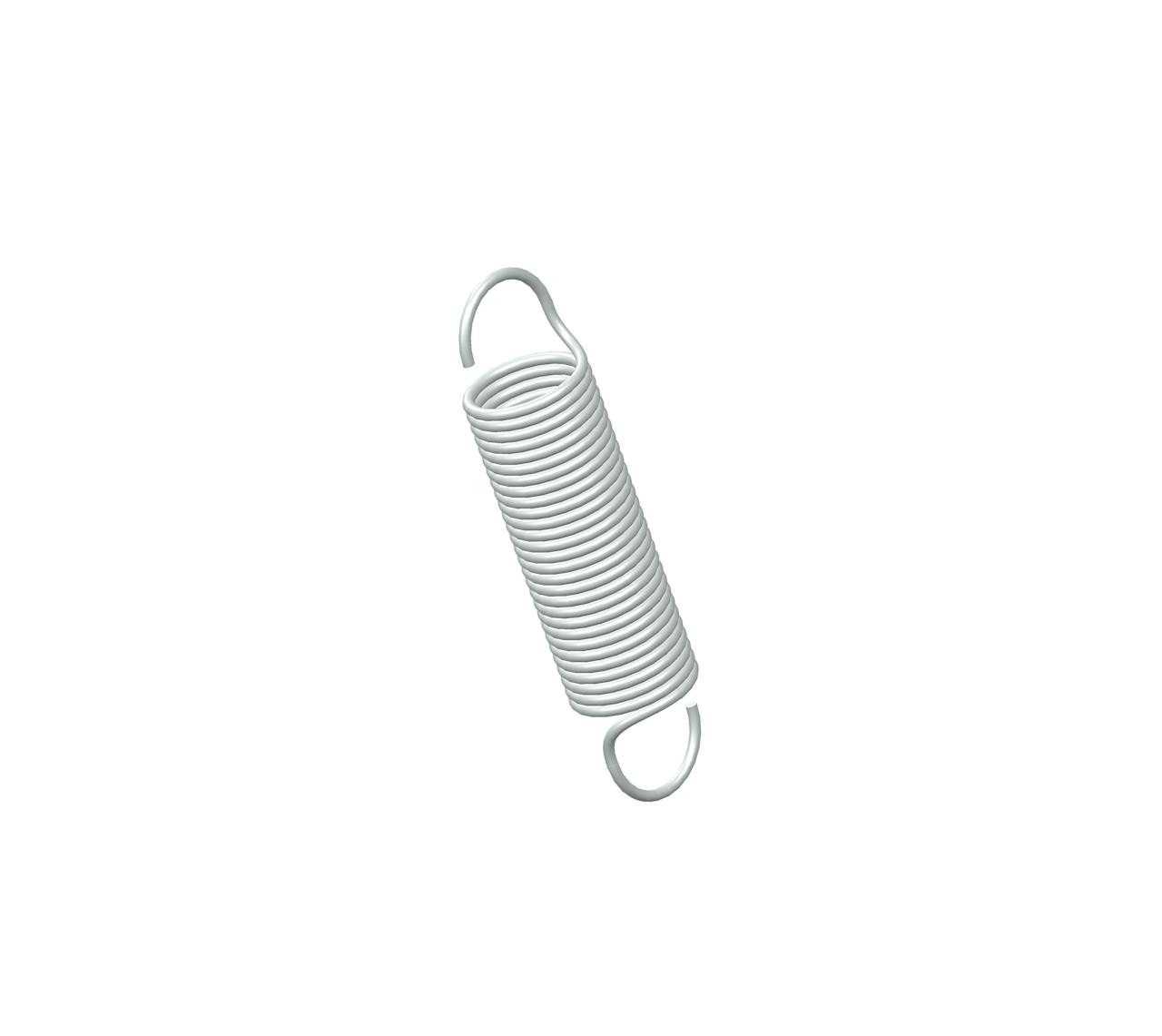

S-574CS - 2 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.437 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-574
Ends Machine Hook
Finish None
Initial Tension 0.7 lb
Length 2 in
Material 302/304 Stainless Steel
Outside Diameter 0.437 in
Part Type Standard
Rate 1.7 lbs/in
SKU S-574CS
Sugg Max Deflection 2.7 in
Sugg Max Load 5.2 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-574
Ends Machine Hook
Finish None
Initial Tension 0.32 kg
Length 50.8 mm
Material 302/304 Stainless Steel
Outside Diameter 11.1 mm
Part Type Standard
Rate 0.3 N/mm
SKU S-574CS
Sugg Max Deflection 68.58 mm
Sugg Max Load 23.13 N
Wind Direction Left
Wire Diameter 1.04 mm
