Century Spring

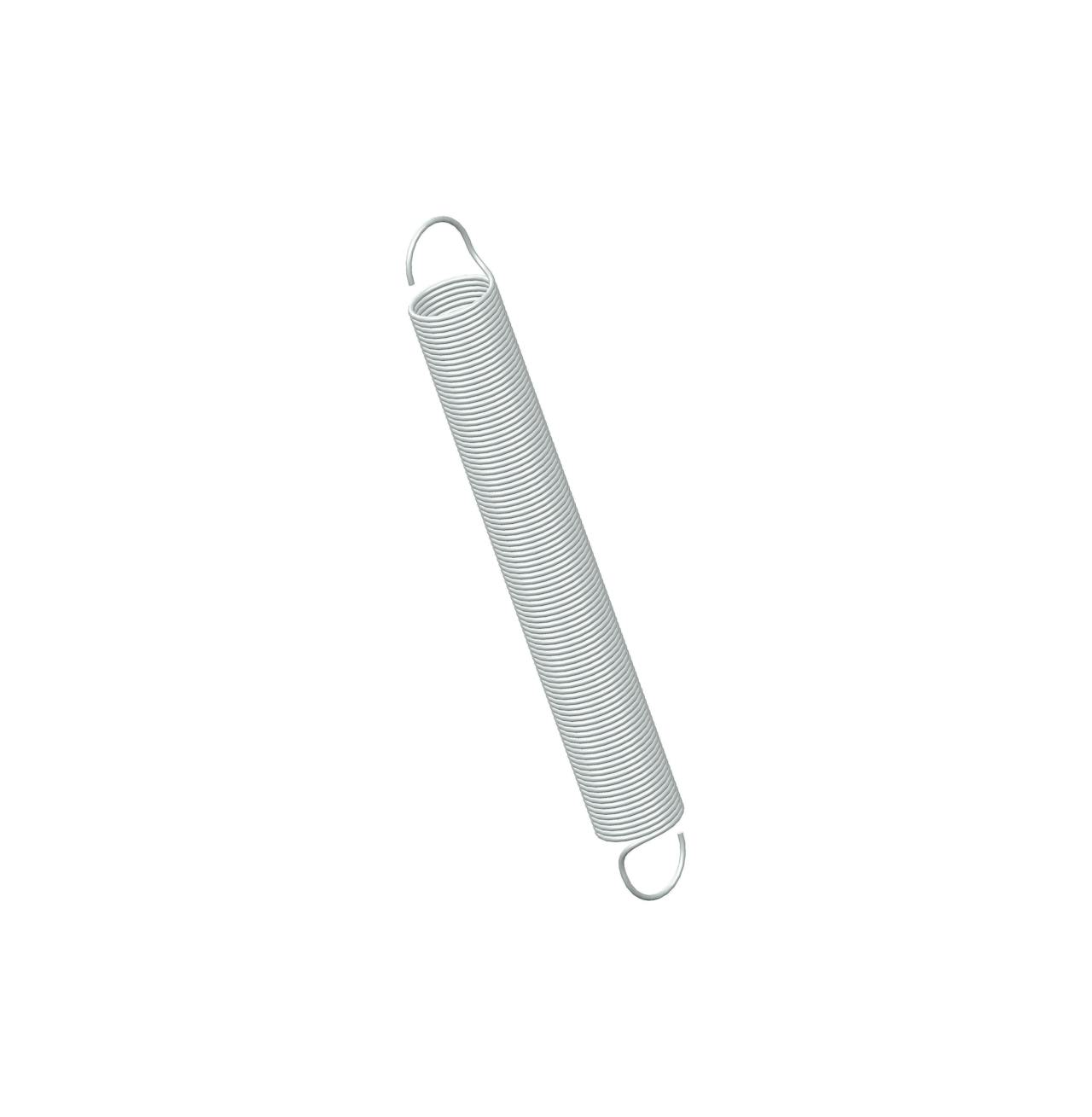

S-542CS - 2.13 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.06 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-542
Ends Machine Hook
Finish None
Initial Tension 0.06 lb
Length 2.13 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 0.08 lbs/in
SKU S-542CS
Sugg Max Deflection 8.3 in
Sugg Max Load 0.7 lbf
Wind Direction Left
Wire Diameter 0.017 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-542
Ends Machine Hook
Finish None
Initial Tension 0.03 kg
Length 54.1 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.01 N/mm
SKU S-542CS
Sugg Max Deflection 210.82 mm
Sugg Max Load 3.11 N
Wind Direction Left
Wire Diameter 0.43 mm
