Century Spring

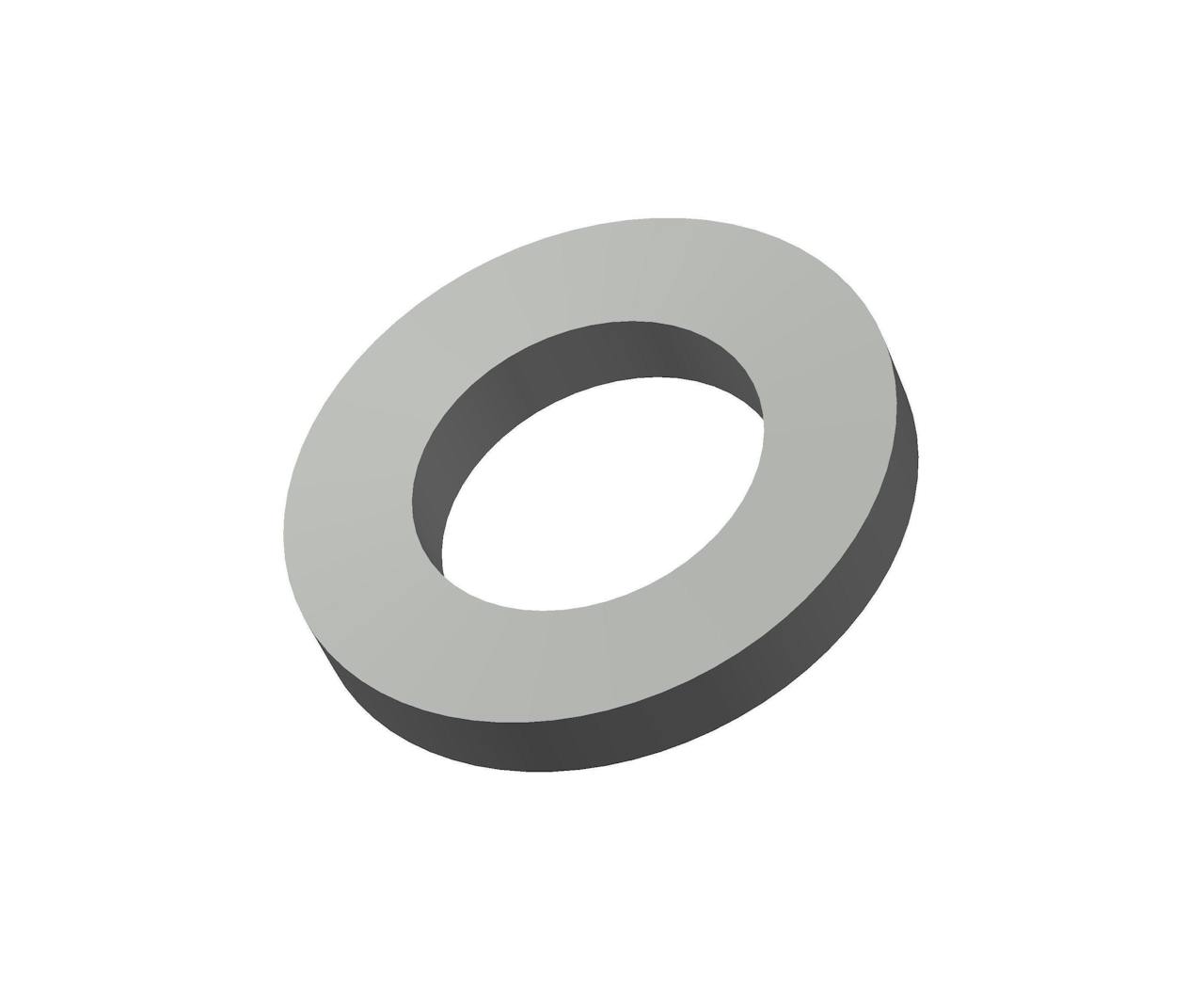

NDS-2-30CS - 0.644 Inch ID 1.148 Inch OD H11/H13 Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from H11/H13 Steel with an inside diameter of 0.644 Inch and an outside diameter of 1.148 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 0.625
Brand Century Spring
Deflection Flat 0.012 in
Display Name NDS-2-30
Finish None
Inside Diameter 0.644 in
Load at Flat 6500 lb
Material H11/H13 Steel
Measurement Units Standard
Outside Diameter 1.148 in
SKU NDS-2-30CS
T 0.152 in
Torque to Flat 342.6613 lbs/in
Specs (in metric)
Label Value
Bolt Size 0.63
Brand Century Spring
Deflection Flat 0.3 mm
Display Name NDS-2-30
Finish None
Inside Diameter 16.36 mm
Load at Flat 2947.85 kg
Material H11/H13 Steel
Measurement Units Standard
Outside Diameter 29.16 mm
SKU NDS-2-30CS
T 3.86 mm
Torque to Flat 60 ft-lb
