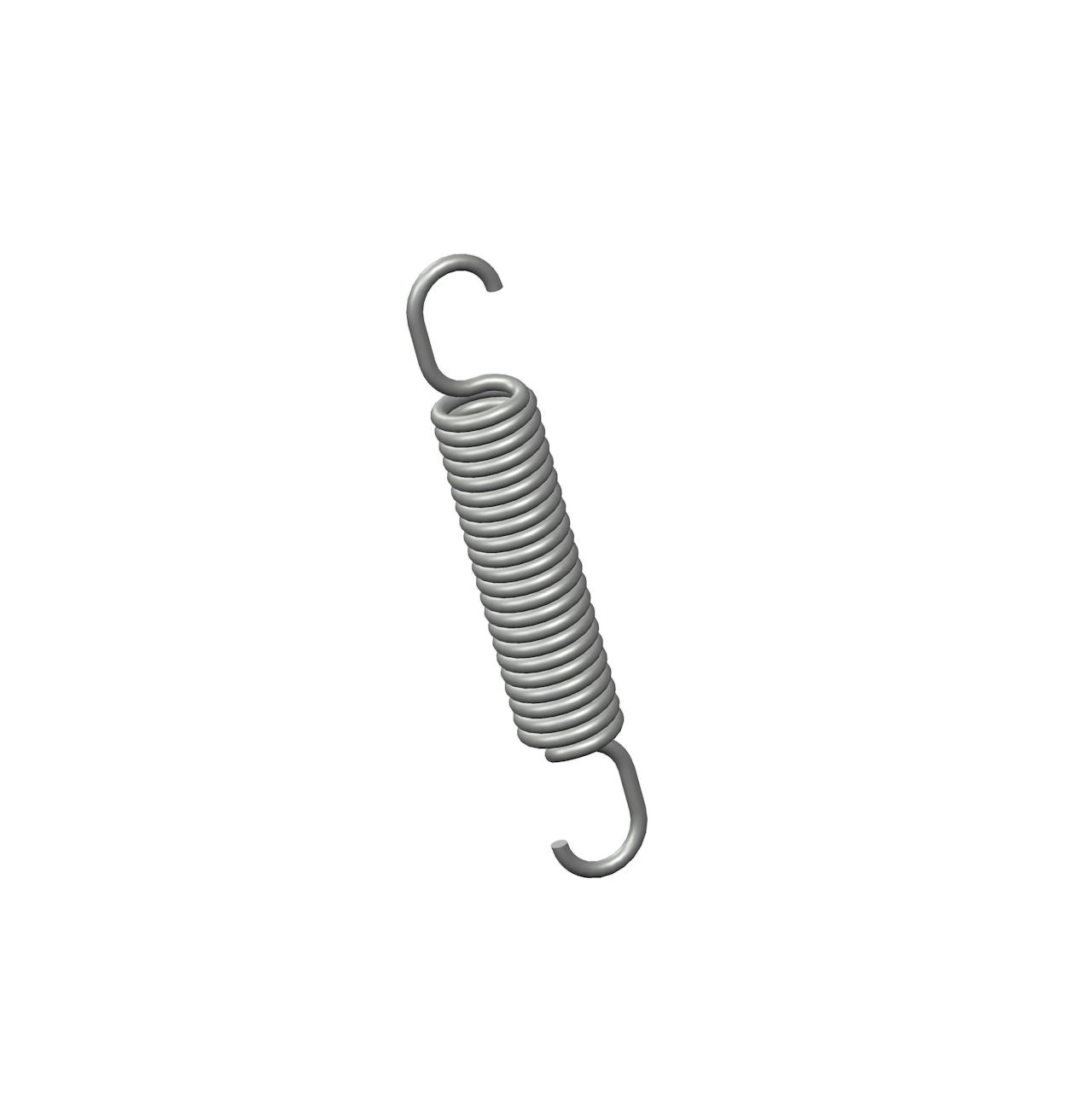

N-114CS - 1.75 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.328 Inch and an initial tension of 4 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-114 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 4 lb |
| Length | 1.75 in |
| Material | Spring Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | N-114CS |
| Sugg Max Deflection | 0.62 in |
| Sugg Max Load | 15 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.052 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | N-114 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 1.81 kg |
| Length | 44.45 mm |
| Material | Spring Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | N-114CS |
| Sugg Max Deflection | 15.75 mm |
| Sugg Max Load | 66.72 N |
| Wind Direction | Left |
| Wire Diameter | 1.32 mm |
