Century Spring

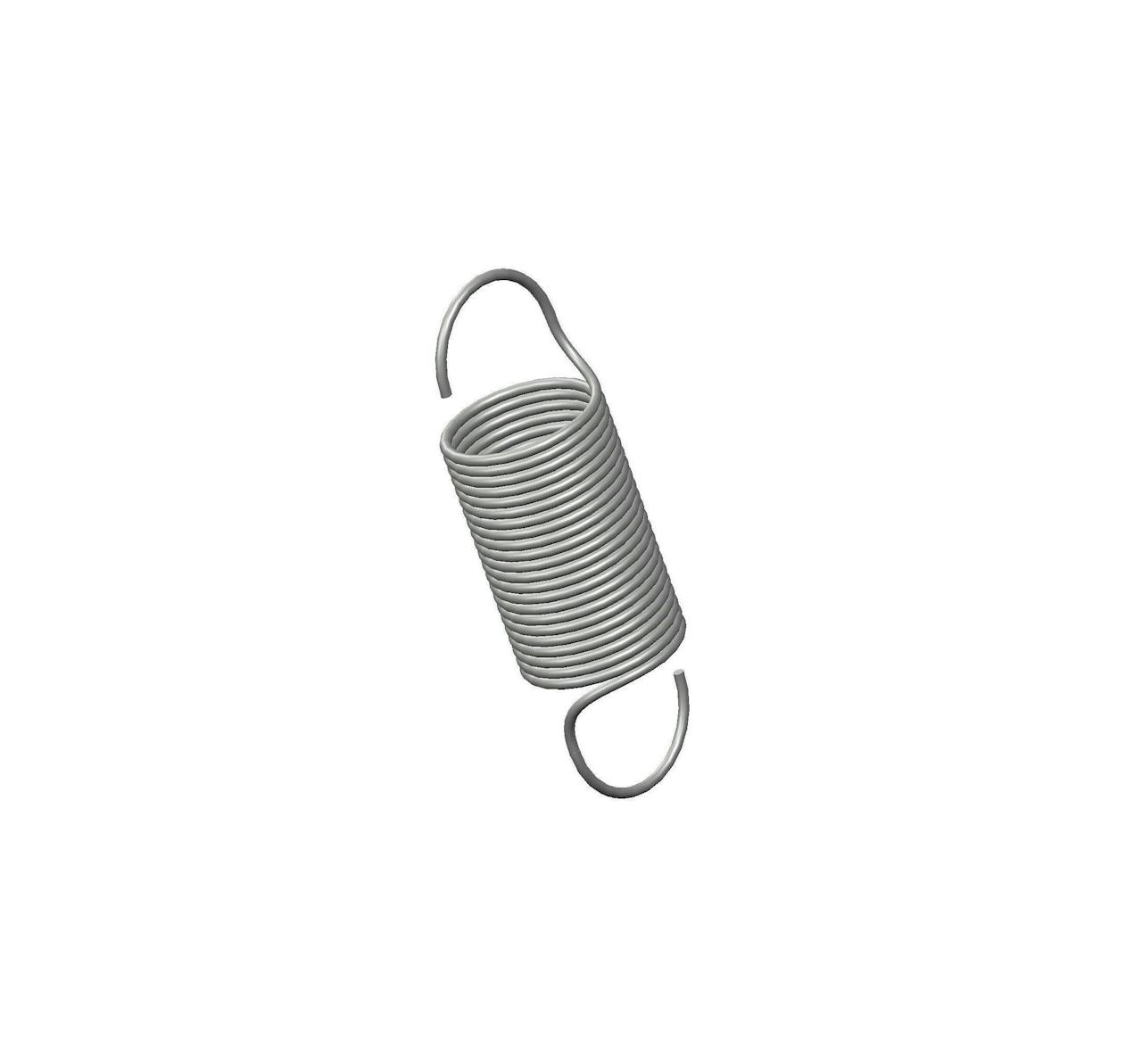

N-113CS - 0.66 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.04 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name N-113
Ends Machine Hook
Finish Zinc
Initial Tension 0.04 lb
Length 0.66 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 0.25 lbs/in
SKU N-113CS
Sugg Max Deflection 2.6 in
Sugg Max Load 0.67 lbf
Wind Direction Left
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name N-113
Ends Machine Hook
Finish Zinc
Initial Tension 0.02 kg
Length 16.76 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.04 N/mm
SKU N-113CS
Sugg Max Deflection 66.04 mm
Sugg Max Load 2.98 N
Wind Direction Left
Wire Diameter 0.33 mm
