Century Spring

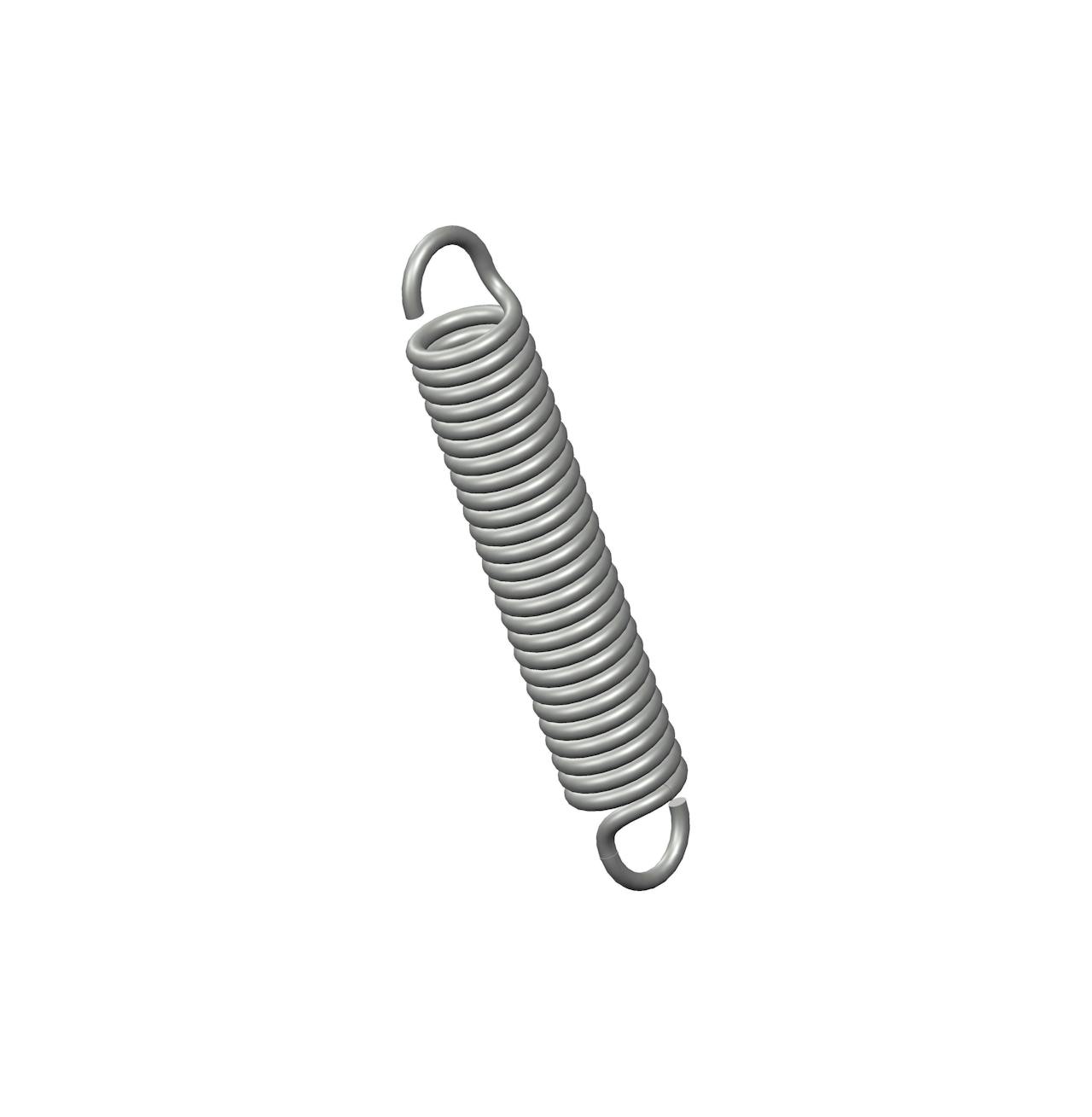

M-64CS - 2 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.328 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-64
Ends Machine Hook
Finish Zinc
Initial Tension 4 lb
Length 2 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 16 lbs/in
SKU M-64CS
Sugg Max Deflection 0.72 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.052 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-64
Ends Machine Hook
Finish Zinc
Initial Tension 1.81 kg
Length 50.8 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 2.8 N/mm
SKU M-64CS
Sugg Max Deflection 18.29 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 1.32 mm
