Century Spring

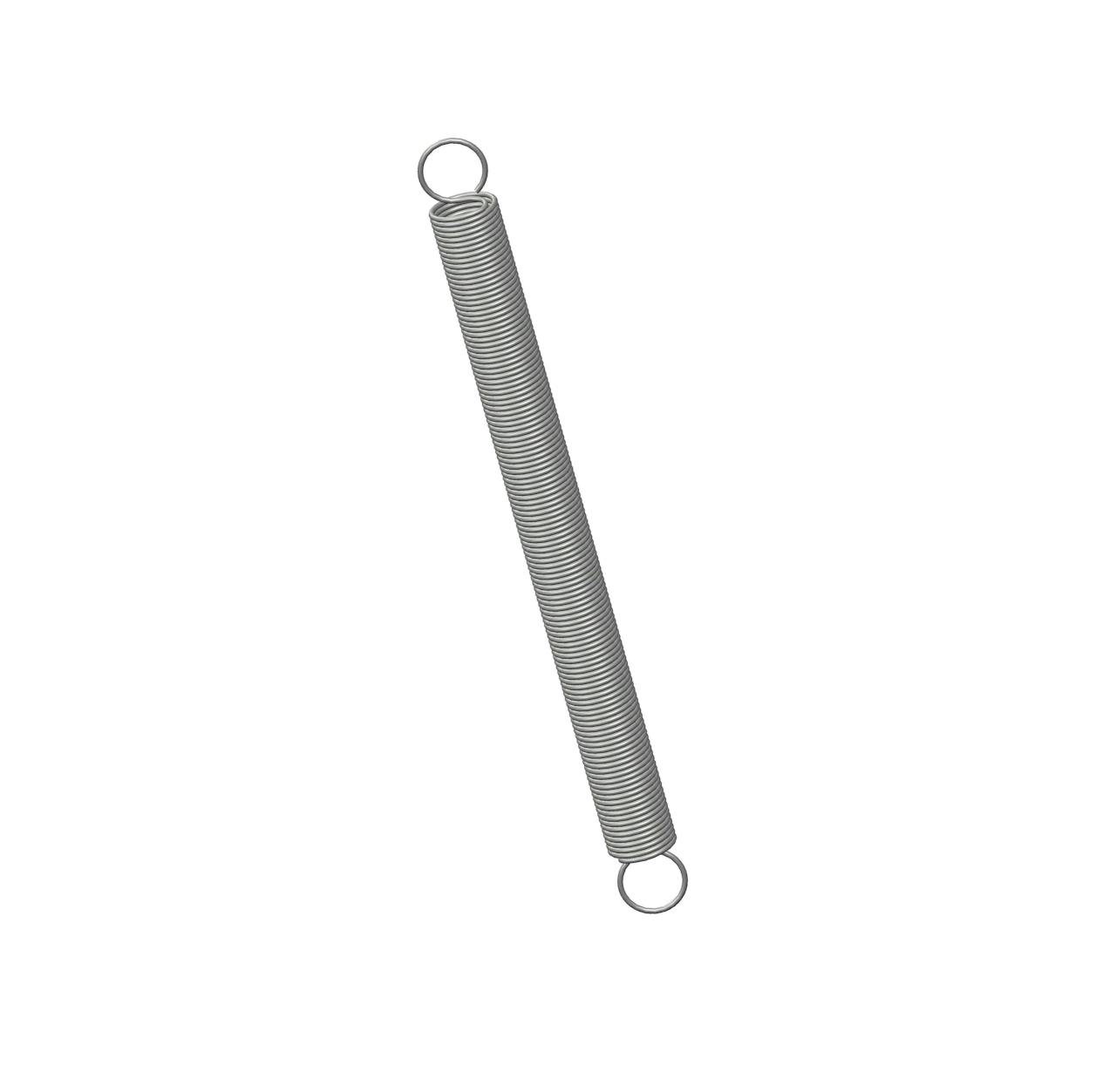

M-122CS - 2.63 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.219 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-122
Ends Full Loop
Finish None
Initial Tension 0.1 lb
Length 2.63 in
Material Music Wire
Outside Diameter 0.219 in
Part Type Standard
Rate 0.14 lbs/in
SKU M-122CS
Sugg Max Deflection 9.2 in
Sugg Max Load 1.4 lbf
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name M-122
Ends Full Loop
Finish None
Initial Tension 0.05 kg
Length 66.8 mm
Material Music Wire
Outside Diameter 5.56 mm
Part Type Standard
Rate 0.02 N/mm
SKU M-122CS
Sugg Max Deflection 233.68 mm
Sugg Max Load 6.23 N
Wind Direction Left
Wire Diameter 0.46 mm
