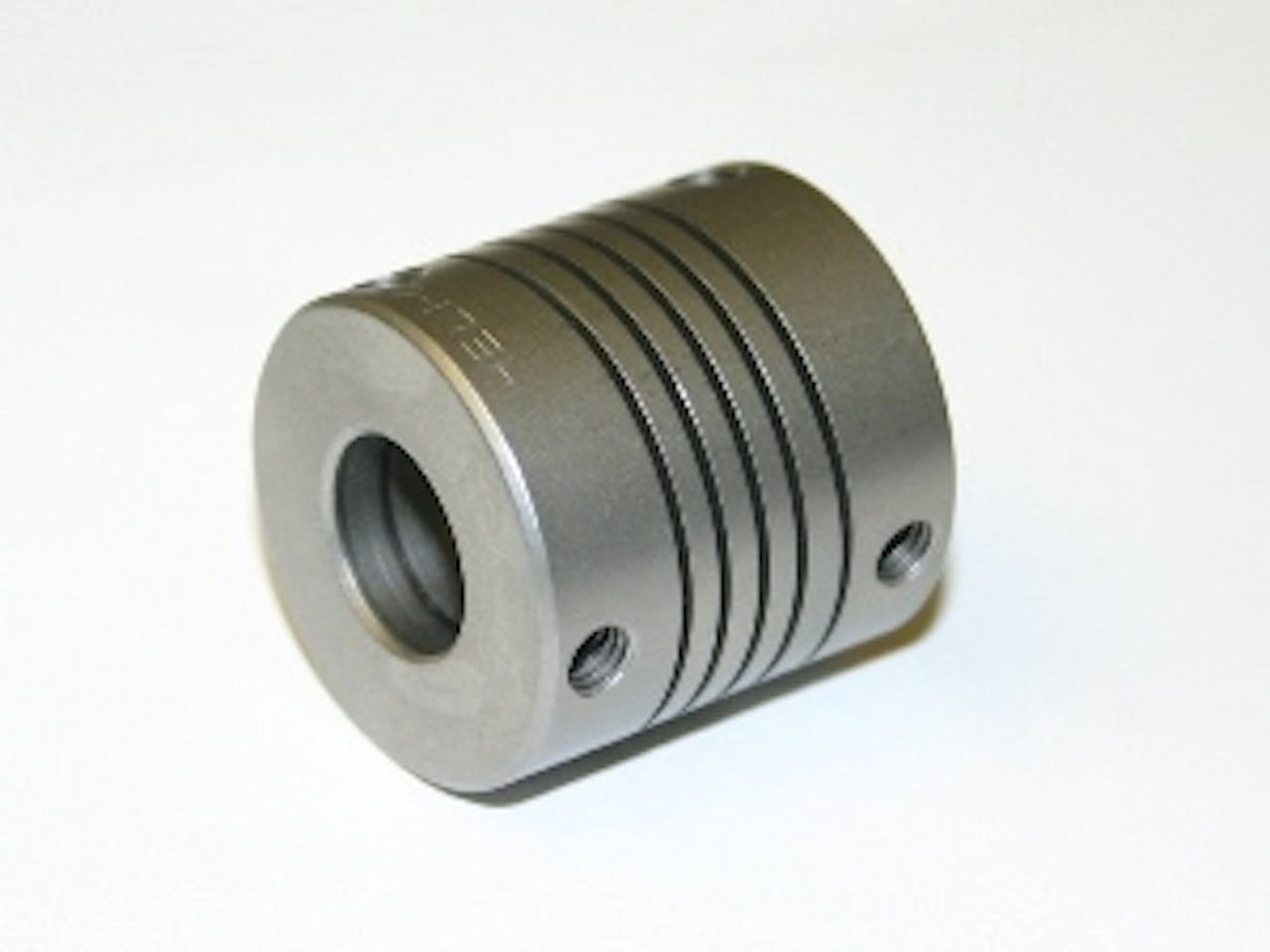

HR112-12-10 - 1.12 Inch 17-4 PH Stainless Steel Flexible Shaft Coupling

Machined coupling manufactured from 17-4 PH Stainless Steel with Set Screw end attachments. This 1.12 Inch flexible shaft coupling has a 1.125 Inch O.D. and 0.313 Inch and 0.375 Inch bores.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.01 in
Bore Size 0.313 in
Bore Size 2 0.375 in
Brand Helical Products
Center Line 0.14 in
Display Name HR112-12-10
End Type Set Screw
Finish None
Hex Size 0.1563 in
Inertia 11.3 lbin/sec sq
Length 1.12 in
Material 17-4 PH Stainless Steel
Max Torque 71 lbs/in
Model Number HR112-12-10
Non-Reversing Torque 36 lbs/in
Operating Temperature 600 F
Outside Diameter 1.125 in
Parallel Offset 0.01 in
Rate (Rotational) 0.061 lbf/deg
Rated Speed 10000 rpm
Reversing Torque 18 lbs/in
SKU HR112-12-10
Screw Size 10-24
Seating Torque 25 lbs/in
Series HR
Specs (in metric)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.25 mm
Bore Size 7.95 mm
Bore Size 2 9.53 mm
Brand Helical Products
Center Line 3.56 mm
Display Name HR112-12-10
End Type Set Screw
Finish None
Hex Size 3.97 mm
Inertia 13.02 kgcm/sec sq
Length 28.45 mm
Material 17-4 PH Stainless Steel
Max Torque 12.43 N-mm
Model Number HR112-12-10
Non-Reversing Torque 6.3 N-mm
Operating Temperature 315.56 C
Outside Diameter 28.58 mm
Parallel Offset 0.25 mm
Rate (Rotational) 0.27 N/deg
Rated Speed 10000 rpm
Reversing Torque 3.15 N-mm
SKU HR112-12-10
Screw Size 10-24
Seating Torque 4.38 N-mm
Series HR
