Maryland Precision Spring

FL-22250 - 1.406 Inch ID 2.45 Inch OD Stainless Steel Disc Spring Washer

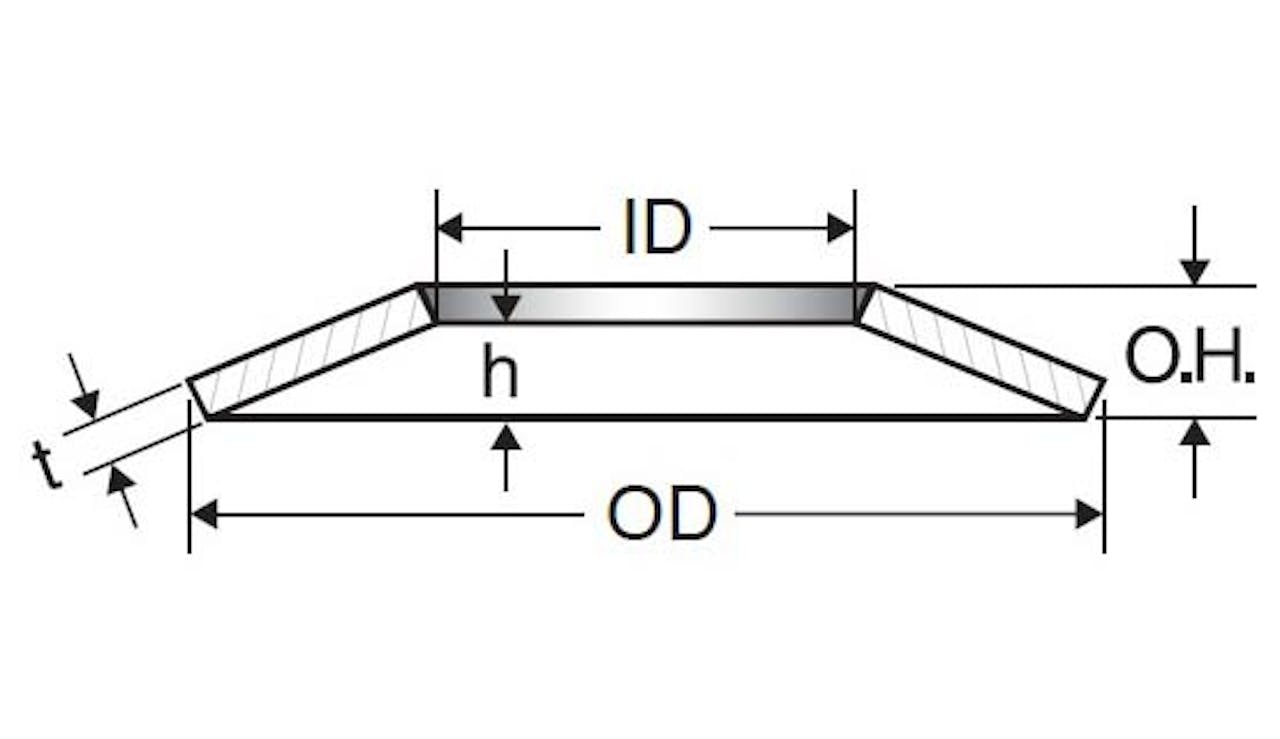

Disc spring manufactured from Stainless Steel with an inside diameter of 1.406 Inch and an outside diameter of 2.45 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 1.375
Brand Maryland Precision Spring
Display Name FL-22250
Finish Plain
Inside Diameter 1.406 in
Load at Flat 23000 lb
Material Stainless Steel
Measurement Units Standard
Outside Diameter 2.45 in
Outside Height 0.29 in
SKU FL-22250
Screw Size M35
T 0.25 in
Torque to Flat 3289.5488 lbs/in
Specs (in metric)
Label Value
Bolt Size 1.38
Brand Maryland Precision Spring
Display Name FL-22250
Finish Plain
Inside Diameter 35.71 mm
Load at Flat 10430.84 kg
Material Stainless Steel
Measurement Units Standard
Outside Diameter 62.23 mm
Outside Height 7.37 mm
SKU FL-22250
Screw Size M35
T 6.35 mm
Torque to Flat 576 ft-lb
