Century Spring

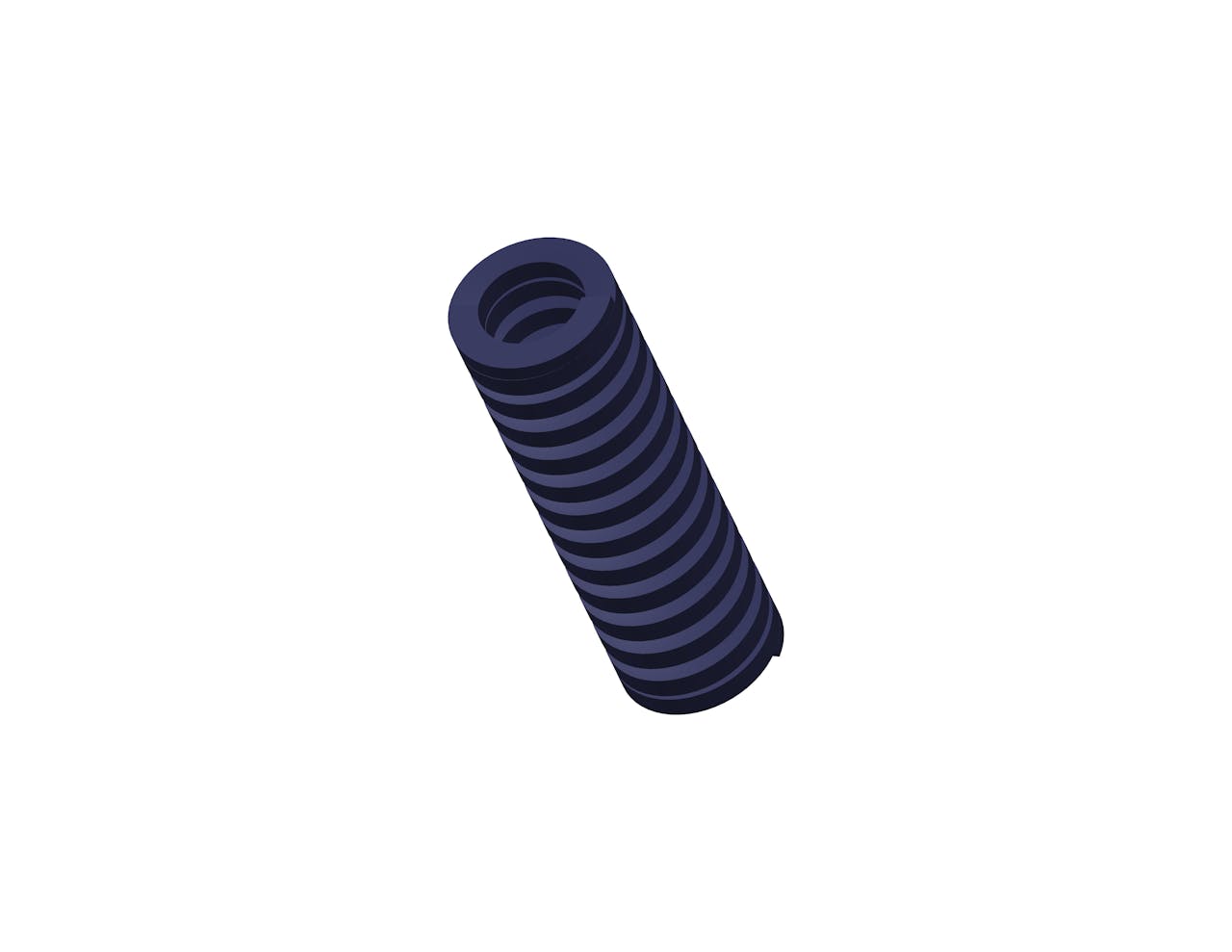

D-9403221CS - 8 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

8 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1099 lb
Brand Century Spring
Deflection For Average Life 2 in
Deflection For Long Life 2.4 in
Display Name D-9403221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 8 in
Hole Size 2.5 in
Long Life Deflection Force 1319 lb
Material Chrome Silicon
Maximum Deflection 3 in
Maximum Deflection Force 1649 lb
Measurement Units Standard
Rate 550 lbs/in
Rod Size 1.5 in
SKU D-9403221CS
Wire Diameter 0.45 in x 0.35 in
Specs (in metric)
Label Value
Average Life Deflection Force 498.41 kg
Brand Century Spring
Deflection For Average Life 50.8 mm
Deflection For Long Life 60.96 mm
Display Name D-9403221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 203.2 mm
Hole Size 63.5 mm
Long Life Deflection Force 598.19 kg
Material Chrome Silicon
Maximum Deflection 76.2 mm
Maximum Deflection Force 747.85 kg
Measurement Units Standard
Rate 96.31 N/mm
Rod Size 38.1 mm
SKU D-9403221CS
Wire Diameter 11.43 mm x 8.89 mm
