Century Spring

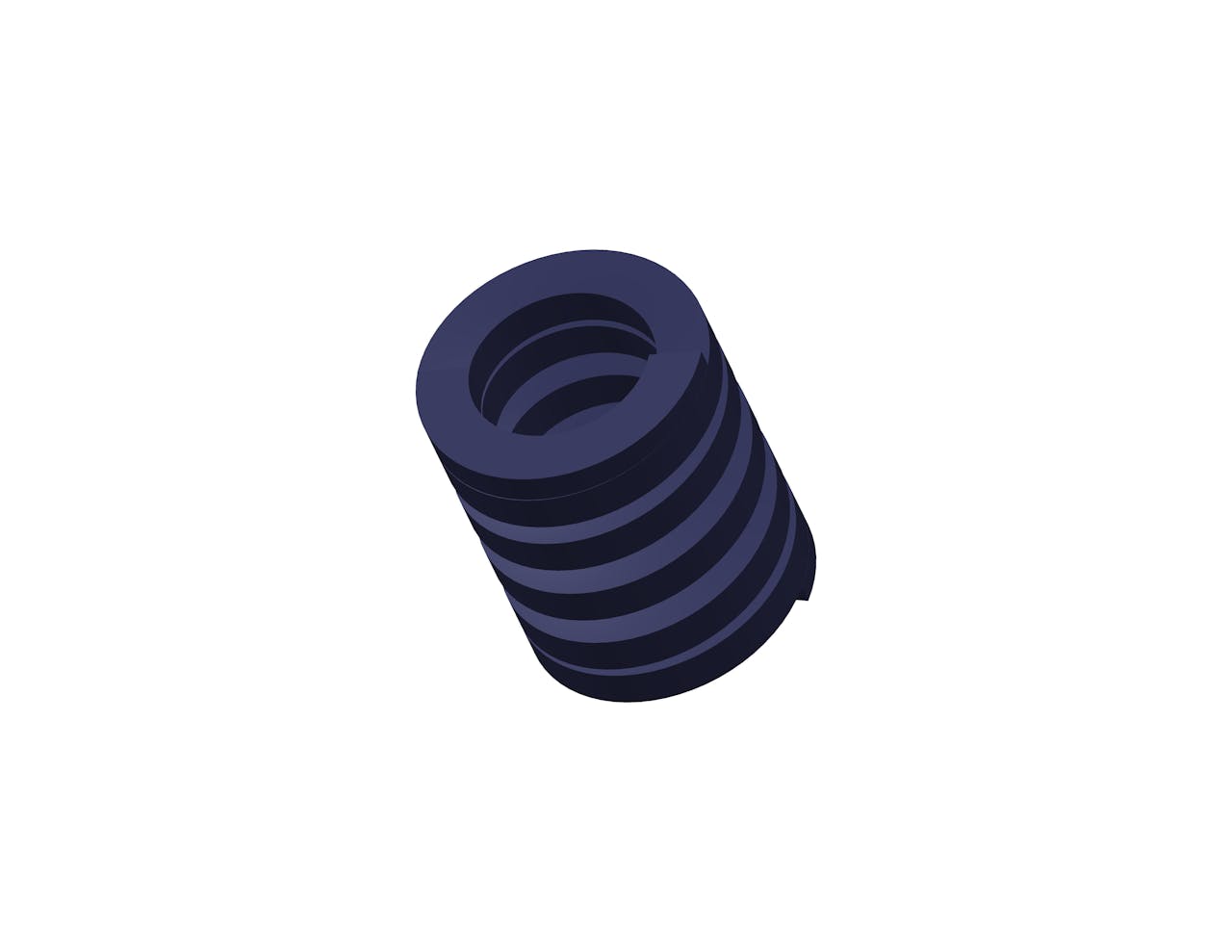

D-9401221CS - 3 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1304 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Deflection For Long Life 0.9 in
Display Name D-9401221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 3 in
Hole Size 2.5 in
Long Life Deflection Force 1565 lb
Material Chrome Silicon
Maximum Deflection 1.12 in
Maximum Deflection Force 1956 lb
Measurement Units Standard
Rate 1740 lbs/in
Rod Size 1.5 in
SKU D-9401221CS
Wire Diameter 0.45 in x 0.35 in
Specs (in metric)
Label Value
Average Life Deflection Force 591.38 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Deflection For Long Life 22.86 mm
Display Name D-9401221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 76.2 mm
Hole Size 63.5 mm
Long Life Deflection Force 709.75 kg
Material Chrome Silicon
Maximum Deflection 28.45 mm
Maximum Deflection Force 887.07 kg
Measurement Units Standard
Rate 304.67 N/mm
Rod Size 38.1 mm
SKU D-9401221CS
Wire Diameter 11.43 mm x 8.89 mm
