Century Spring

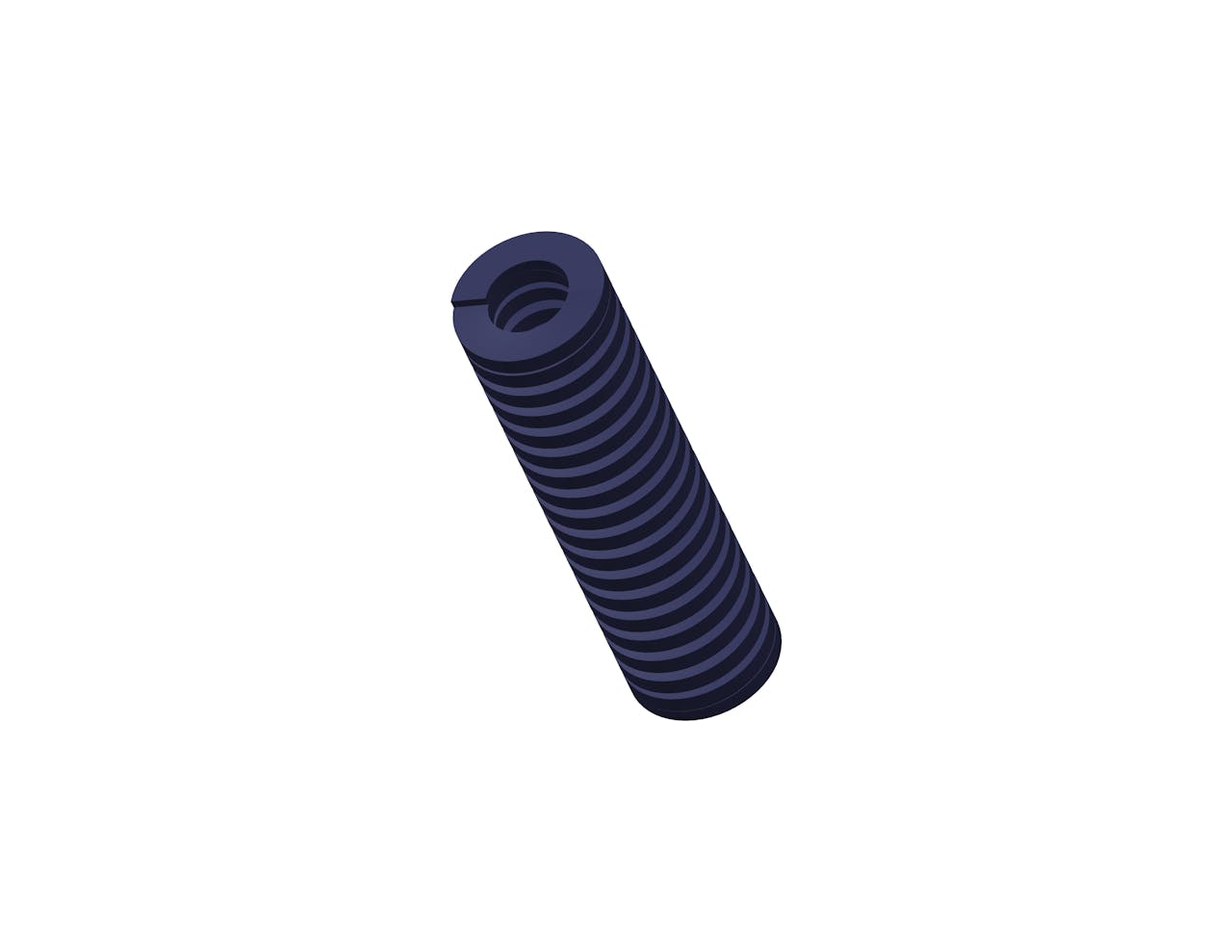

D-9322821CS - 7 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

7 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 664 lb
Brand Century Spring
Deflection For Average Life 1.75 in
Deflection For Long Life 2.1 in
Display Name D-9322821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 7 in
Hole Size 2 in
Long Life Deflection Force 797 lb
Material Chrome Silicon
Maximum Deflection 2.63 in
Maximum Deflection Force 996 lb
Measurement Units Standard
Rate 379 lbs/in
Rod Size 1 in
SKU D-9322821CS
Wire Diameter 0.445 in x 0.235 in
Specs (in metric)
Label Value
Average Life Deflection Force 301.13 kg
Brand Century Spring
Deflection For Average Life 44.45 mm
Deflection For Long Life 53.34 mm
Display Name D-9322821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 177.8 mm
Hole Size 50.8 mm
Long Life Deflection Force 361.45 kg
Material Chrome Silicon
Maximum Deflection 66.8 mm
Maximum Deflection Force 451.7 kg
Measurement Units Standard
Rate 66.36 N/mm
Rod Size 25.4 mm
SKU D-9322821CS
Wire Diameter 11.3 mm x 5.97 mm
