Century Spring

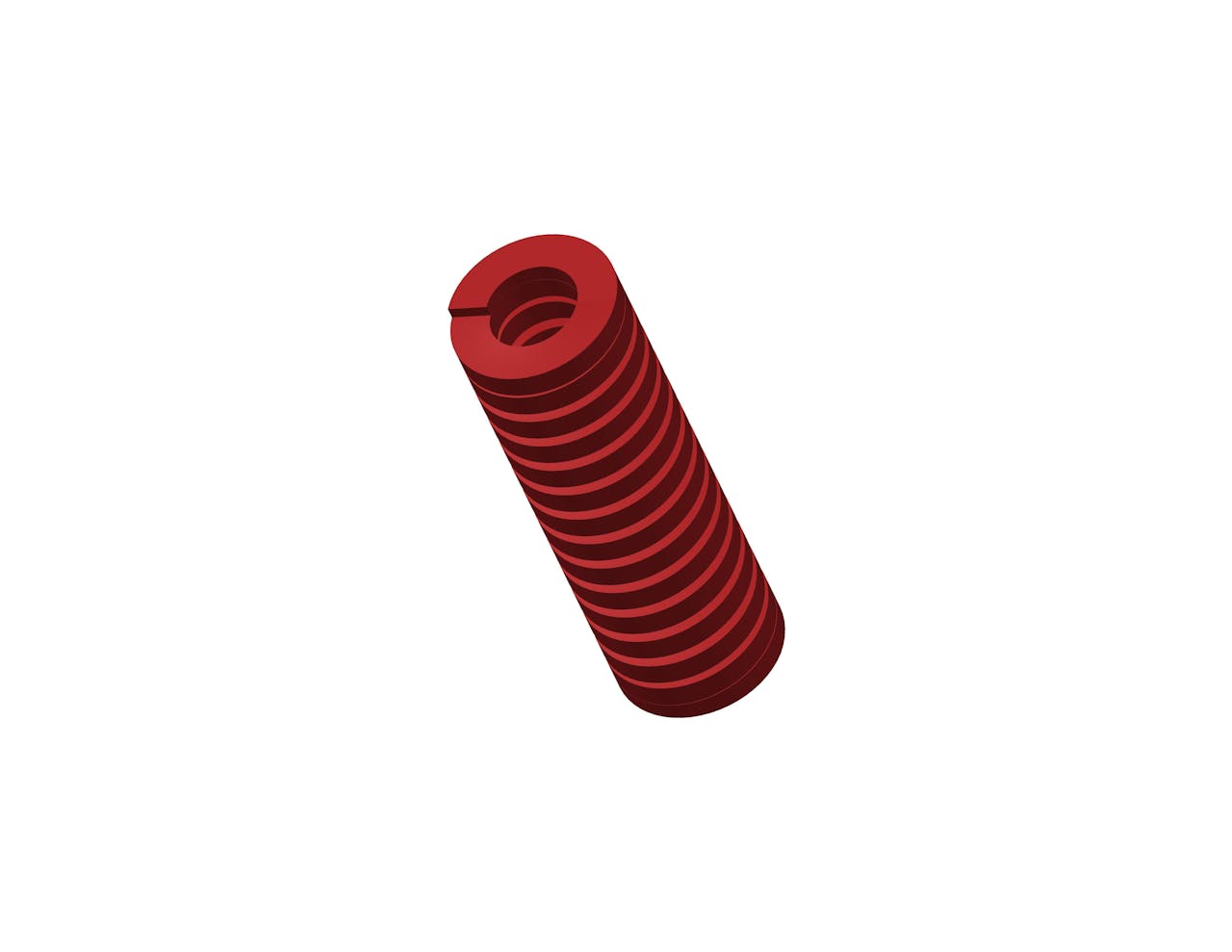

D-9322426CS - 6 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

6 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 1053 lb
Brand Century Spring
Deflection For Average Life 1.2 in
Deflection For Long Life 1.5 in
Display Name D-9322426
Duty Load Heavy
Finish None
Finish Color Red
Free Length 6 in
Hole Size 2 in
Long Life Deflection Force 1317 lb
Material Chrome Silicon
Maximum Deflection 1.8 in
Maximum Deflection Force 1580 lb
Measurement Units Standard
Rate 880 lbs/in
Rod Size 1 in
SKU D-9322426CS
Wire Diameter 0.45 in x 0.292 in
Specs (in metric)
Label Value
Average Life Deflection Force 477.55 kg
Brand Century Spring
Deflection For Average Life 30.48 mm
Deflection For Long Life 38.1 mm
Display Name D-9322426
Duty Load Heavy
Finish None
Finish Color Red
Free Length 152.4 mm
Hole Size 50.8 mm
Long Life Deflection Force 597.28 kg
Material Chrome Silicon
Maximum Deflection 45.72 mm
Maximum Deflection Force 716.55 kg
Measurement Units Standard
Rate 154.09 N/mm
Rod Size 25.4 mm
SKU D-9322426CS
Wire Diameter 11.43 mm x 7.42 mm
