Century Spring

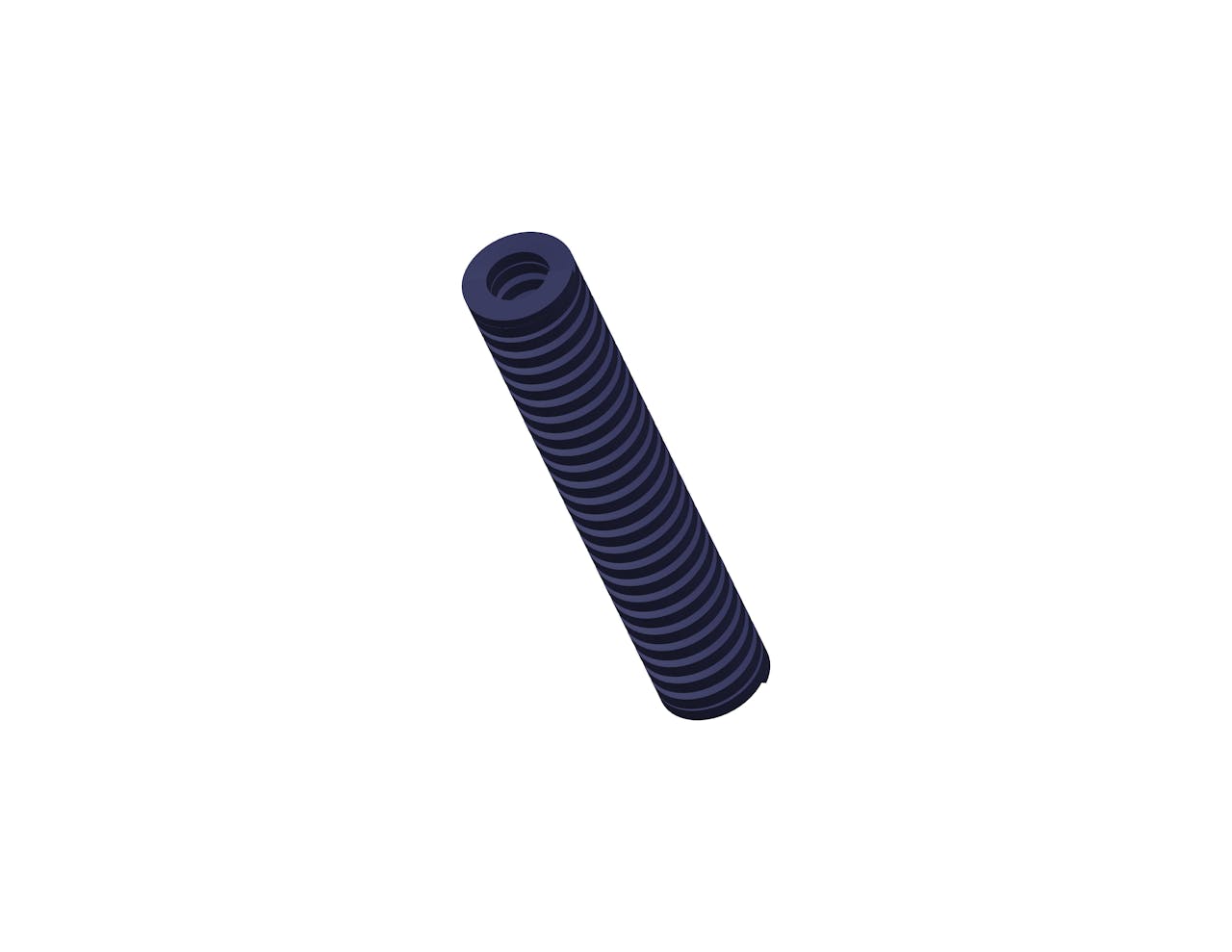

D-9243221CS - 8 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

8 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 412 lb
Brand Century Spring
Deflection For Average Life 2 in
Deflection For Long Life 2.4 in
Display Name D-9243221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 8 in
Hole Size 1.5 in
Long Life Deflection Force 494 lb
Material Chrome Silicon
Maximum Deflection 3 in
Maximum Deflection Force 617 lb
Measurement Units Standard
Rate 206 lbs/in
Rod Size 0.75 in
SKU D-9243221CS
Wire Diameter 0.32 in x 0.193 in
Specs (in metric)
Label Value
Average Life Deflection Force 186.85 kg
Brand Century Spring
Deflection For Average Life 50.8 mm
Deflection For Long Life 60.96 mm
Display Name D-9243221
Duty Load Medium
Finish None
Finish Color Blue
Free Length 203.2 mm
Hole Size 38.1 mm
Long Life Deflection Force 224.04 kg
Material Chrome Silicon
Maximum Deflection 76.2 mm
Maximum Deflection Force 279.82 kg
Measurement Units Standard
Rate 36.07 N/mm
Rod Size 19.05 mm
SKU D-9243221CS
Wire Diameter 8.13 mm x 4.9 mm
