Century Spring

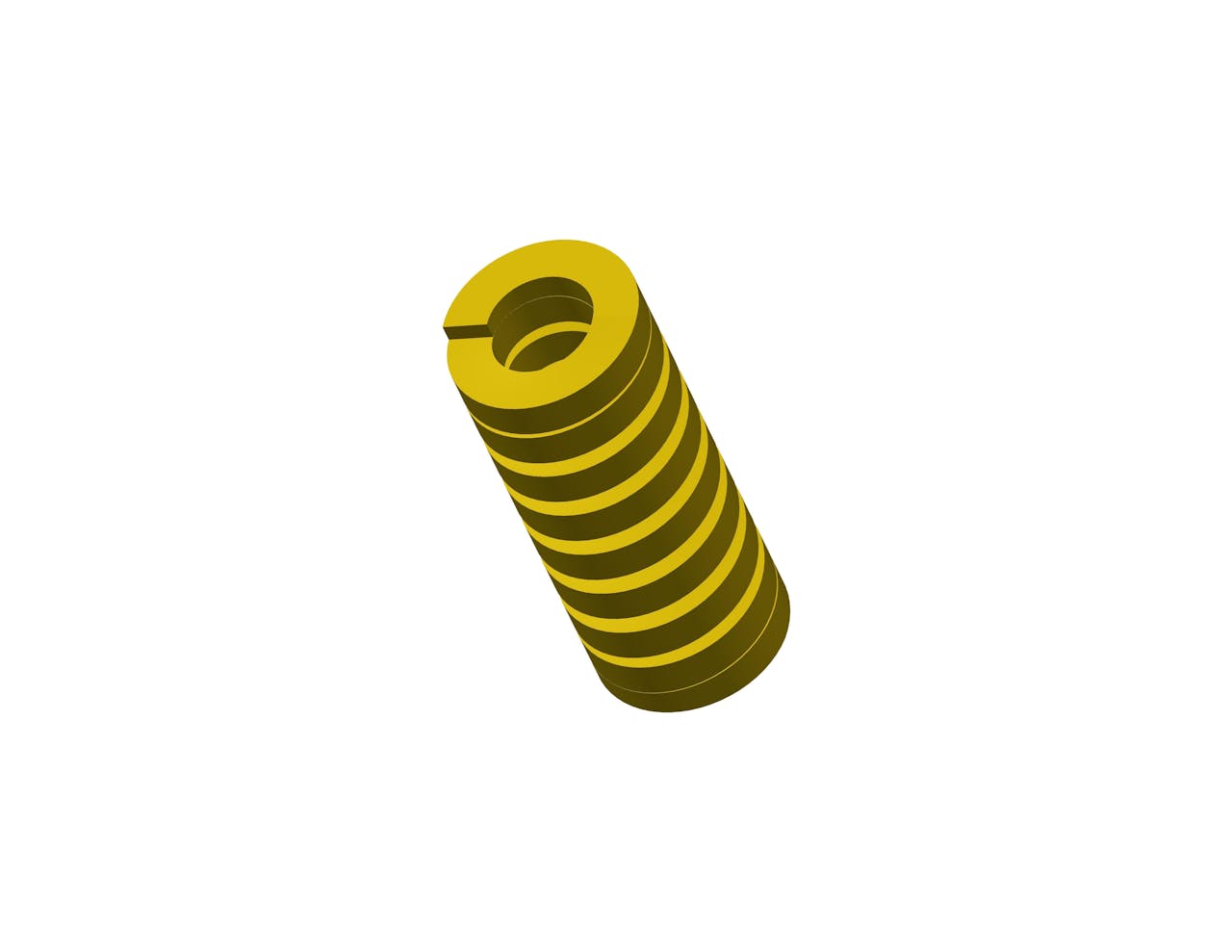

D-9241436CS - 3.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 953 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.7 in
Display Name D-9241436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 3.5 in
Hole Size 1.5 in
Long Life Deflection Force 1121 lb
Material Chrome Silicon
Maximum Deflection 0.88 in
Maximum Deflection Force 1402 lb
Measurement Units Standard
Rate 1600 lbs/in
Rod Size 0.75 in
SKU D-9241436CS
Wire Diameter 0.332 in x 0.287 in
Specs (in metric)
Label Value
Average Life Deflection Force 432.2 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 17.78 mm
Display Name D-9241436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 88.9 mm
Hole Size 38.1 mm
Long Life Deflection Force 508.39 kg
Material Chrome Silicon
Maximum Deflection 22.35 mm
Maximum Deflection Force 635.83 kg
Measurement Units Standard
Rate 280.16 N/mm
Rod Size 19.05 mm
SKU D-9241436CS
Wire Diameter 8.43 mm x 7.29 mm
