Century Spring

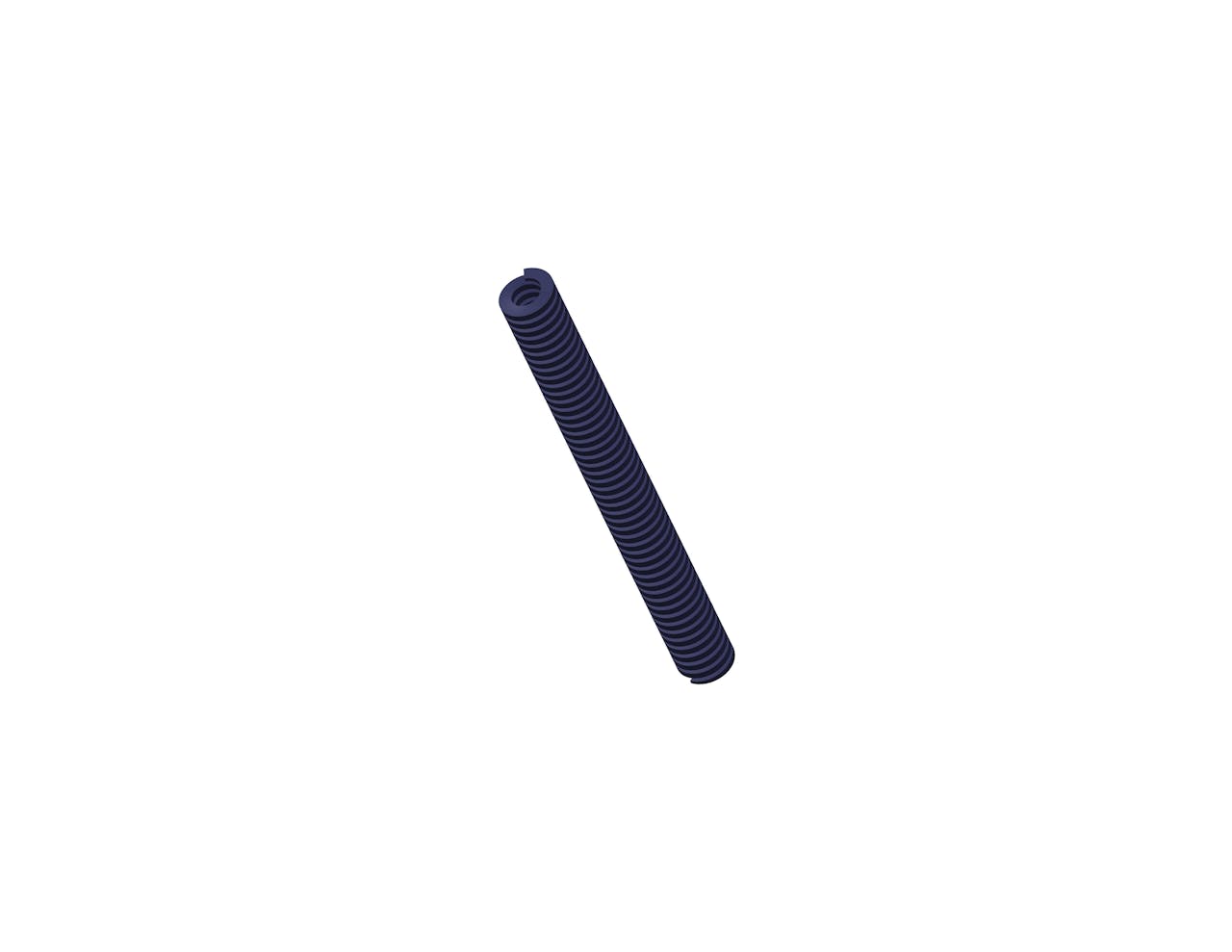

D-9204821CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 285 lb
Brand Century Spring
Deflection For Average Life 3 in
Deflection For Long Life 3.6 in
Display Name D-9204821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 12 in
Hole Size 1.25 in
Long Life Deflection Force 342 lb
Material Chrome Silicon
Maximum Deflection 4.5 in
Maximum Deflection Force 428 lb
Measurement Units Standard
Rate 95 lbs/in
Rod Size 0.625 in
SKU D-9204821CS
Wire Diameter 0.27 in x 0.155 in
Specs (in metric)
Label Value
Average Life Deflection Force 129.25 kg
Brand Century Spring
Deflection For Average Life 76.2 mm
Deflection For Long Life 91.44 mm
Display Name D-9204821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 304.8 mm
Hole Size 31.75 mm
Long Life Deflection Force 155.1 kg
Material Chrome Silicon
Maximum Deflection 114.3 mm
Maximum Deflection Force 194.1 kg
Measurement Units Standard
Rate 16.63 N/mm
Rod Size 15.88 mm
SKU D-9204821CS
Wire Diameter 6.86 mm x 3.94 mm
