Century Spring

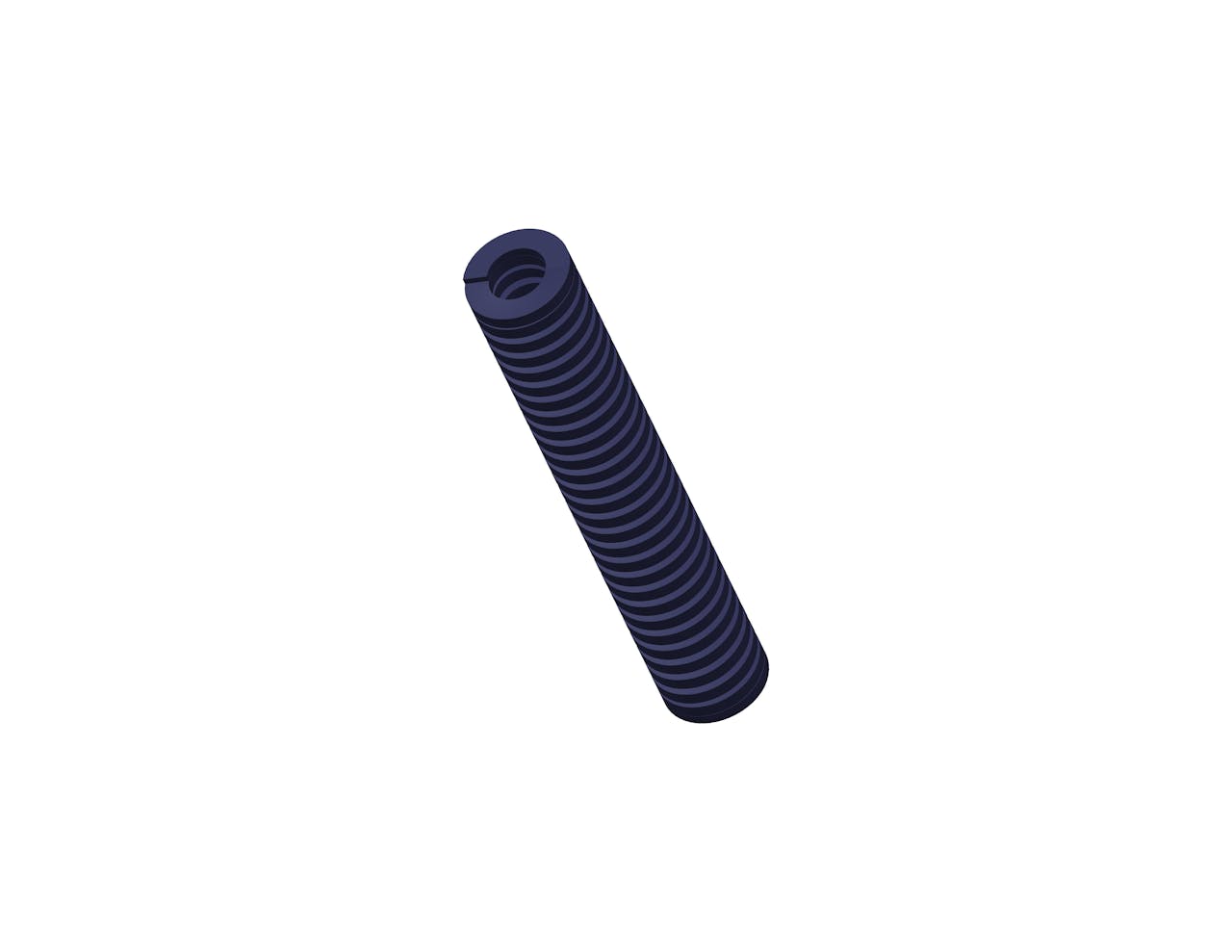

D-9202821CS - 7 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

7 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 291 lb
Brand Century Spring
Deflection For Average Life 1.75 in
Deflection For Long Life 2.1 in
Display Name D-9202821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 7 in
Hole Size 1.25 in
Long Life Deflection Force 349 lb
Material Chrome Silicon
Maximum Deflection 2.63 in
Maximum Deflection Force 436 lb
Measurement Units Standard
Rate 166 lbs/in
Rod Size 0.625 in
SKU D-9202821CS
Wire Diameter 0.27 in x 0.155 in
Specs (in metric)
Label Value
Average Life Deflection Force 131.97 kg
Brand Century Spring
Deflection For Average Life 44.45 mm
Deflection For Long Life 53.34 mm
Display Name D-9202821
Duty Load Medium
Finish None
Finish Color Blue
Free Length 177.8 mm
Hole Size 31.75 mm
Long Life Deflection Force 158.28 kg
Material Chrome Silicon
Maximum Deflection 66.8 mm
Maximum Deflection Force 197.73 kg
Measurement Units Standard
Rate 29.07 N/mm
Rod Size 15.88 mm
SKU D-9202821CS
Wire Diameter 6.86 mm x 3.94 mm
