Century Spring

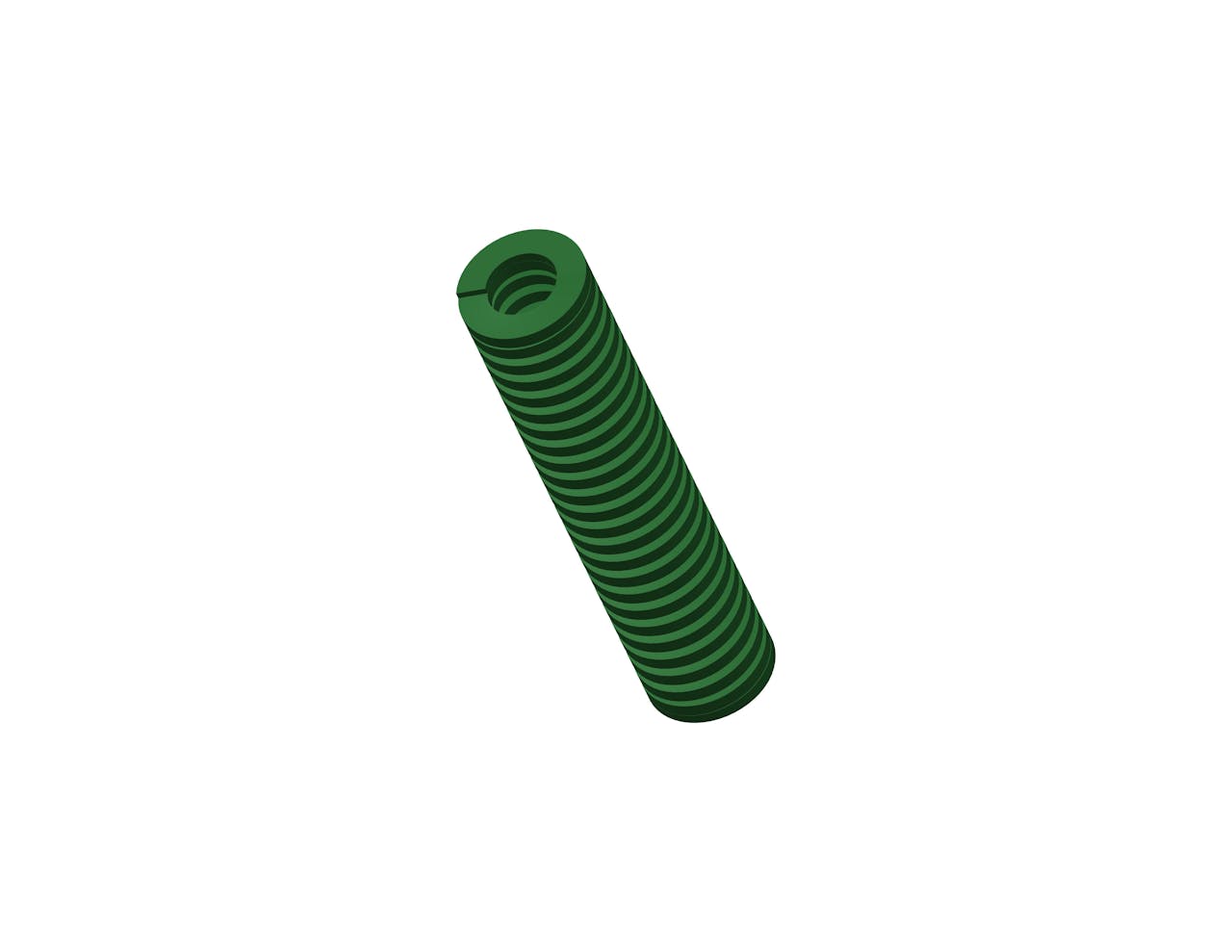

D-9202211CS - 5.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

5.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 186 lb
Brand Century Spring
Deflection For Average Life 1.38 in
Deflection For Long Life 1.65 in
Display Name D-9202211
Duty Load Light
Finish None
Finish Color Green
Free Length 5.5 in
Hole Size 1.25 in
Long Life Deflection Force 223 lb
Material Chrome Silicon
Maximum Deflection 2.2 in
Maximum Deflection Force 298 lb
Measurement Units Standard
Rate 135 lbs/in
Rod Size 0.625 in
SKU D-9202211CS
Wire Diameter 0.273 in x 0.132 in
Specs (in metric)
Label Value
Average Life Deflection Force 84.35 kg
Brand Century Spring
Deflection For Average Life 35.05 mm
Deflection For Long Life 41.91 mm
Display Name D-9202211
Duty Load Light
Finish None
Finish Color Green
Free Length 139.7 mm
Hole Size 31.75 mm
Long Life Deflection Force 101.13 kg
Material Chrome Silicon
Maximum Deflection 55.88 mm
Maximum Deflection Force 135.15 kg
Measurement Units Standard
Rate 23.64 N/mm
Rod Size 15.88 mm
SKU D-9202211CS
Wire Diameter 6.93 mm x 3.35 mm
