Century Spring

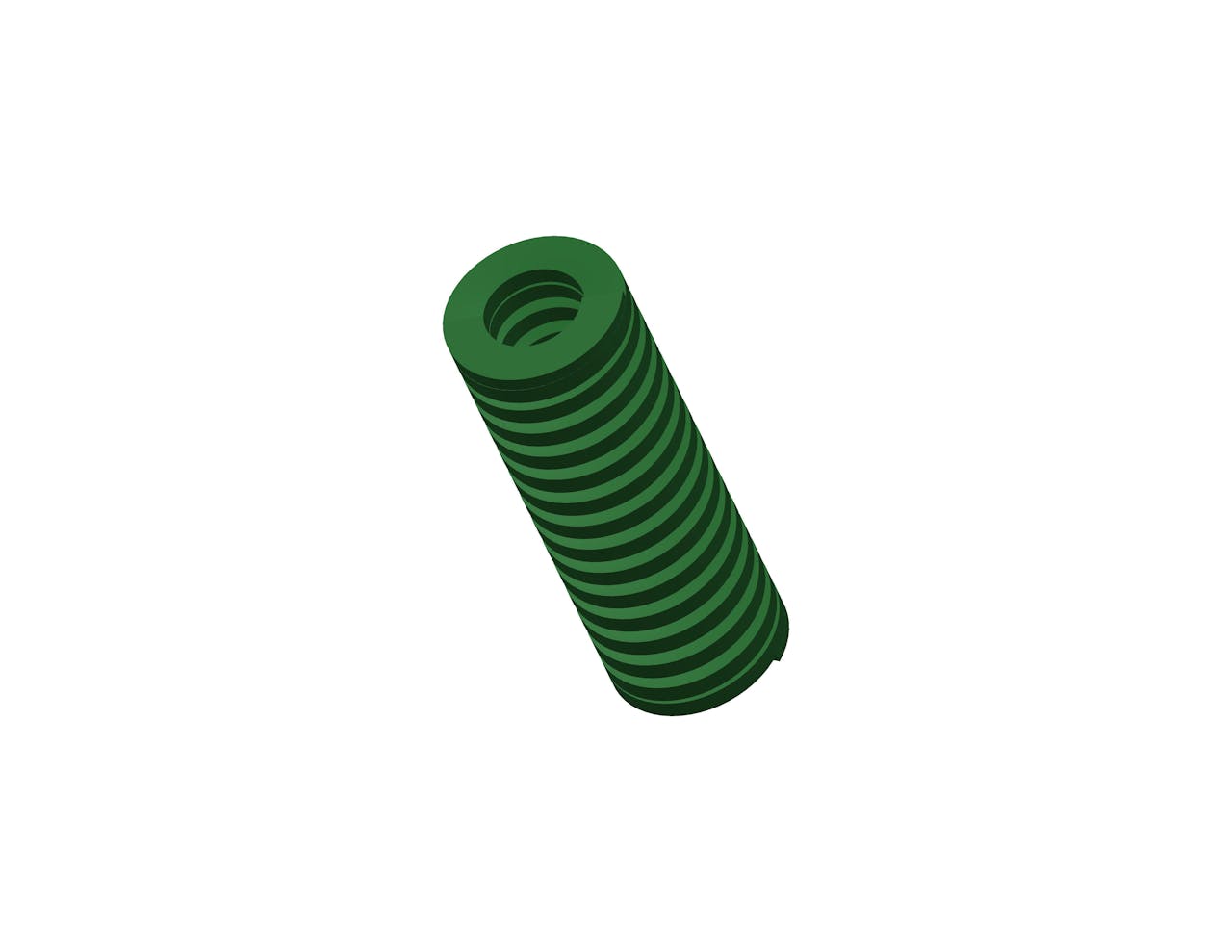

D-9201411CS - 3.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 194 lb
Brand Century Spring
Deflection For Average Life 0.88 in
Deflection For Long Life 1.05 in
Display Name D-9201411
Duty Load Light
Finish None
Finish Color Green
Free Length 3.5 in
Hole Size 1.25 in
Long Life Deflection Force 233 lb
Material Chrome Silicon
Maximum Deflection 1.4 in
Maximum Deflection Force 311 lb
Measurement Units Standard
Rate 222 lbs/in
Rod Size 0.625 in
SKU D-9201411CS
Wire Diameter 0.273 in x 0.132 in
Specs (in metric)
Label Value
Average Life Deflection Force 87.98 kg
Brand Century Spring
Deflection For Average Life 22.35 mm
Deflection For Long Life 26.67 mm
Display Name D-9201411
Duty Load Light
Finish None
Finish Color Green
Free Length 88.9 mm
Hole Size 31.75 mm
Long Life Deflection Force 105.67 kg
Material Chrome Silicon
Maximum Deflection 35.56 mm
Maximum Deflection Force 141.04 kg
Measurement Units Standard
Rate 38.87 N/mm
Rod Size 15.88 mm
SKU D-9201411CS
Wire Diameter 6.93 mm x 3.35 mm
