Century Spring

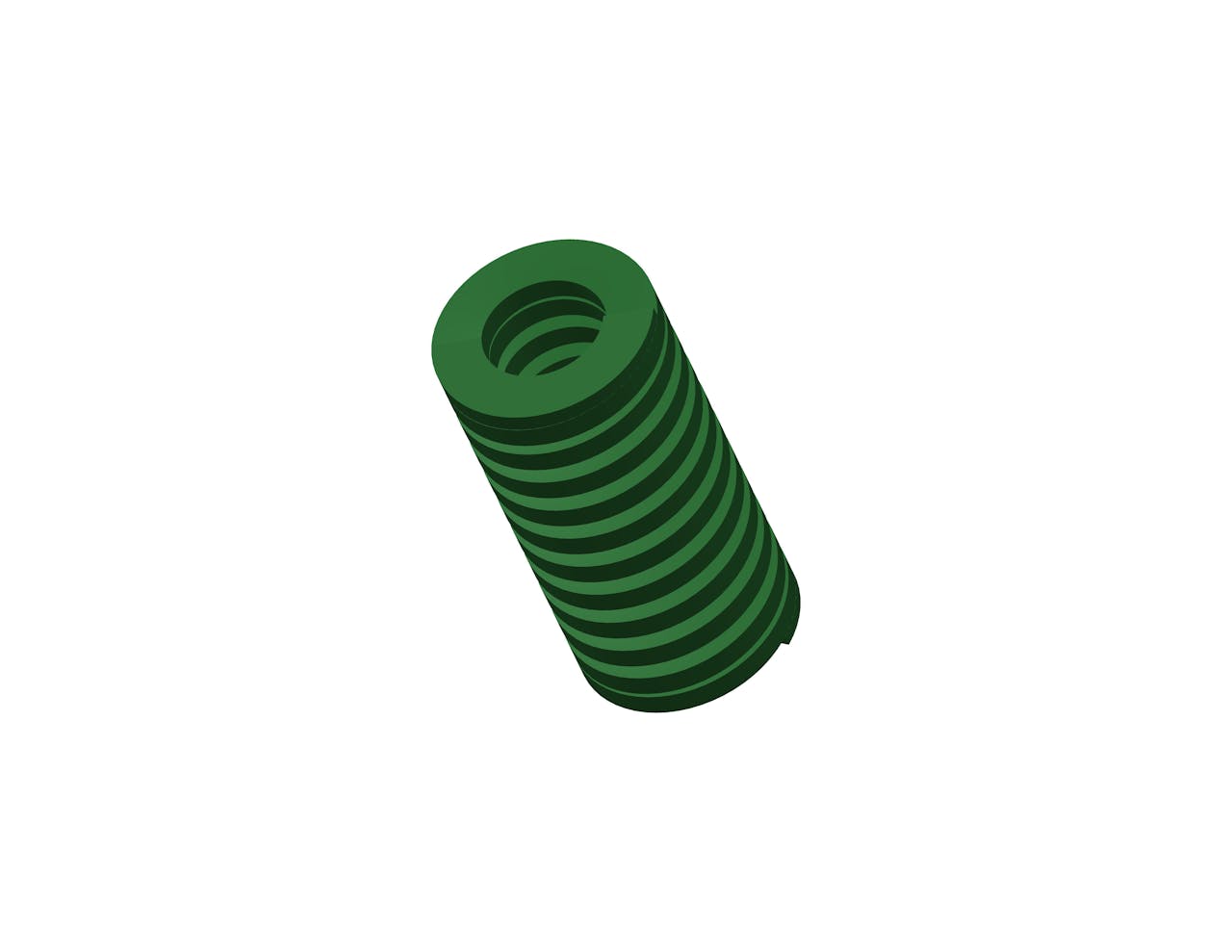

D-9201011CS - 2.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 198 lb
Brand Century Spring
Deflection For Average Life 0.63 in
Deflection For Long Life 0.76 in
Display Name D-9201011
Duty Load Light
Finish None
Finish Color Green
Free Length 2.5 in
Hole Size 1.25 in
Long Life Deflection Force 237 lb
Material Chrome Silicon
Maximum Deflection 1.01 in
Maximum Deflection Force 316 lb
Measurement Units Standard
Rate 314 lbs/in
Rod Size 0.625 in
SKU D-9201011CS
Wire Diameter 0.273 in x 0.132 in
Specs (in metric)
Label Value
Average Life Deflection Force 89.8 kg
Brand Century Spring
Deflection For Average Life 16 mm
Deflection For Long Life 19.3 mm
Display Name D-9201011
Duty Load Light
Finish None
Finish Color Green
Free Length 63.5 mm
Hole Size 31.75 mm
Long Life Deflection Force 107.48 kg
Material Chrome Silicon
Maximum Deflection 25.65 mm
Maximum Deflection Force 143.31 kg
Measurement Units Standard
Rate 54.98 N/mm
Rod Size 15.88 mm
SKU D-9201011CS
Wire Diameter 6.93 mm x 3.35 mm
