Century Spring

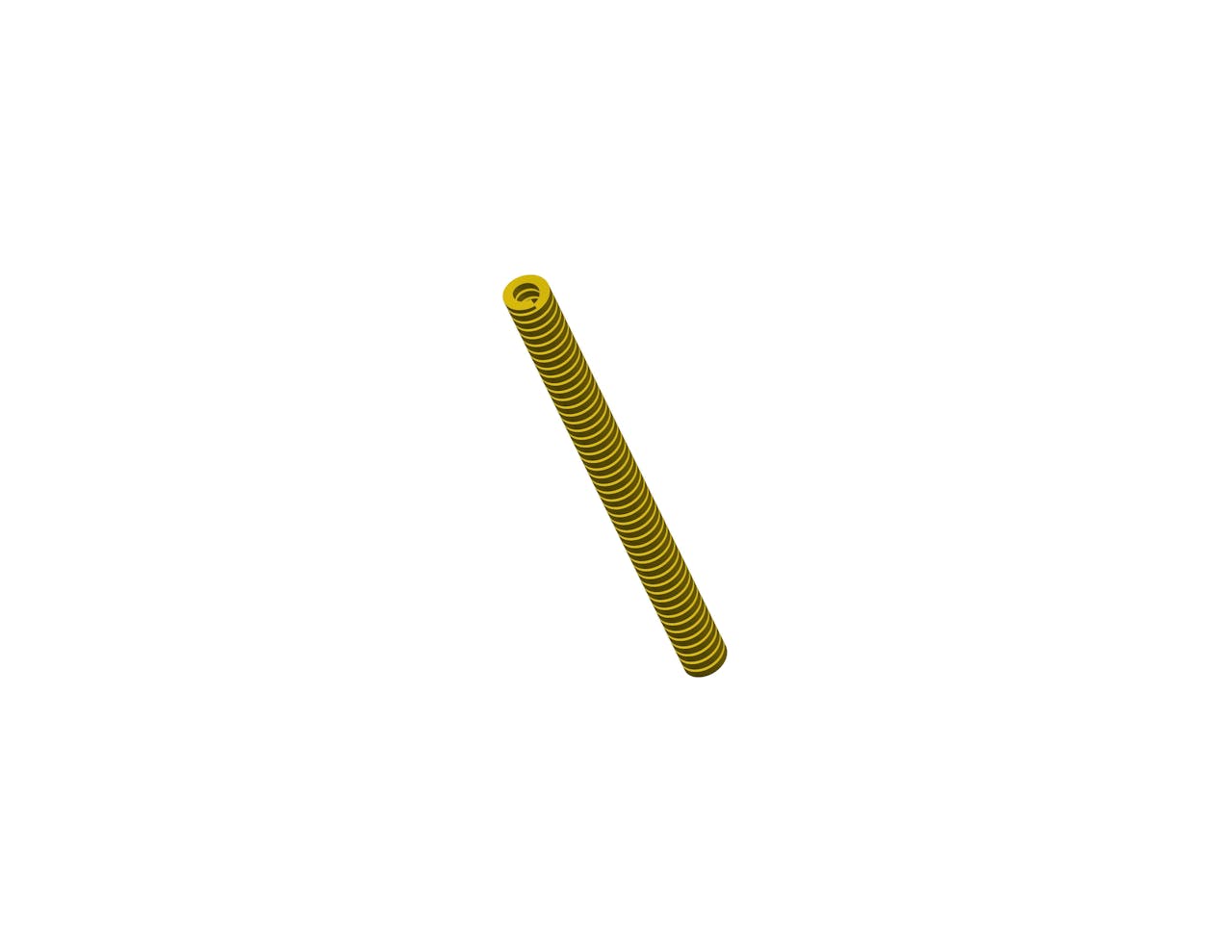

D-9164836CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 345 lb
Brand Century Spring
Deflection For Average Life 2.04 in
Deflection For Long Life 2.4 in
Display Name D-9164836
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 12 in
Hole Size 1 in
Long Life Deflection Force 406 lb
Material Chrome Silicon
Maximum Deflection 3 in
Maximum Deflection Force 507 lb
Measurement Units Standard
Rate 169 lbs/in
Rod Size 0.5 in
SKU D-9164836CS
Wire Diameter 0.215 in x 0.182 in
Specs (in metric)
Label Value
Average Life Deflection Force 156.46 kg
Brand Century Spring
Deflection For Average Life 51.82 mm
Deflection For Long Life 60.96 mm
Display Name D-9164836
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 304.8 mm
Hole Size 25.4 mm
Long Life Deflection Force 184.13 kg
Material Chrome Silicon
Maximum Deflection 76.2 mm
Maximum Deflection Force 229.93 kg
Measurement Units Standard
Rate 29.59 N/mm
Rod Size 12.7 mm
SKU D-9164836CS
Wire Diameter 5.46 mm x 4.62 mm
