Century Spring

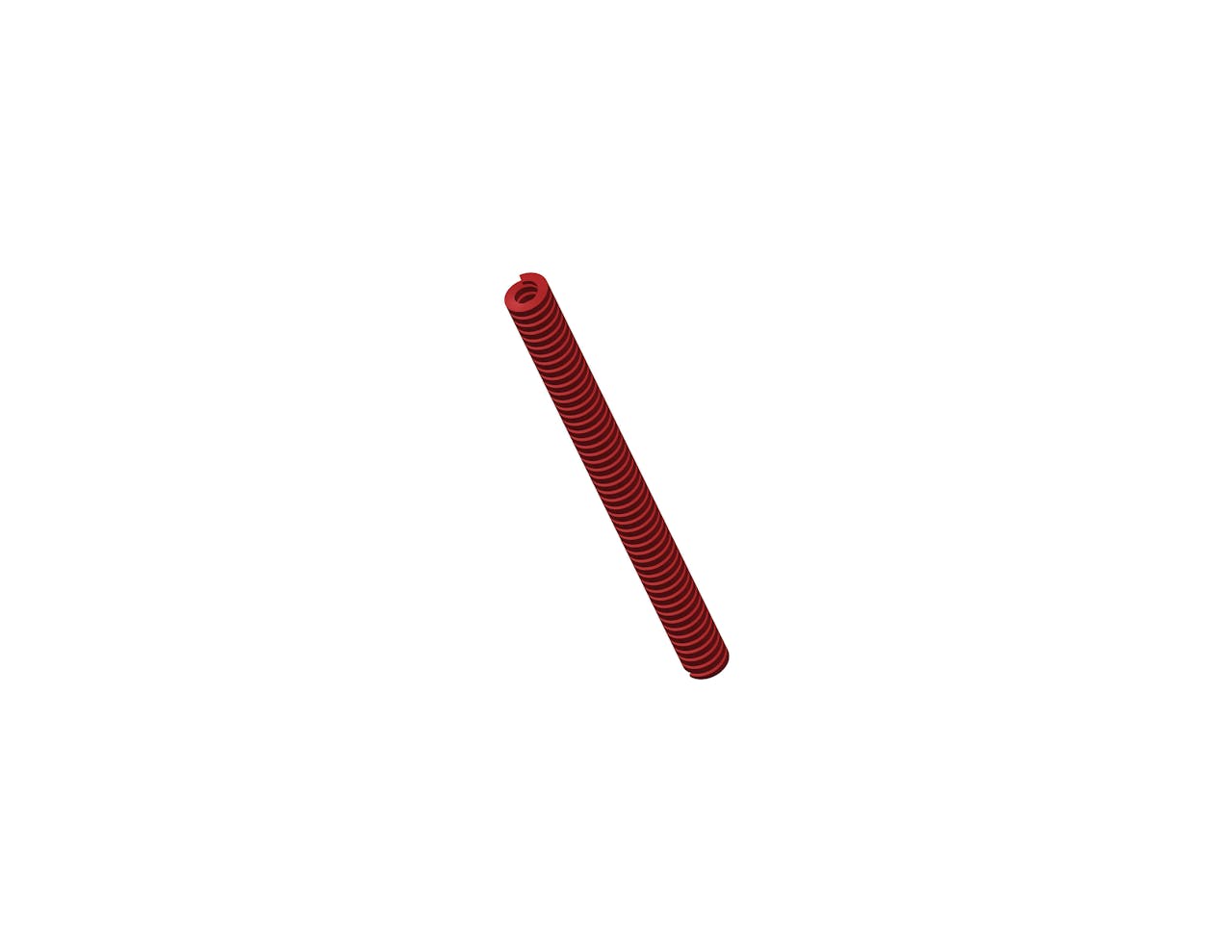

D-9164826CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 331 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 3 in
Display Name D-9164826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 12 in
Hole Size 1 in
Long Life Deflection Force 414 lb
Material Chrome Silicon
Maximum Deflection 3.6 in
Maximum Deflection Force 497 lb
Measurement Units Standard
Rate 138 lbs/in
Rod Size 0.5 in
SKU D-9164826CS
Wire Diameter 0.216 in x 0.165 in
Specs (in metric)
Label Value
Average Life Deflection Force 150.11 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 76.2 mm
Display Name D-9164826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 304.8 mm
Hole Size 25.4 mm
Long Life Deflection Force 187.76 kg
Material Chrome Silicon
Maximum Deflection 91.44 mm
Maximum Deflection Force 225.4 kg
Measurement Units Standard
Rate 24.16 N/mm
Rod Size 12.7 mm
SKU D-9164826CS
Wire Diameter 5.49 mm x 4.19 mm
