Century Spring

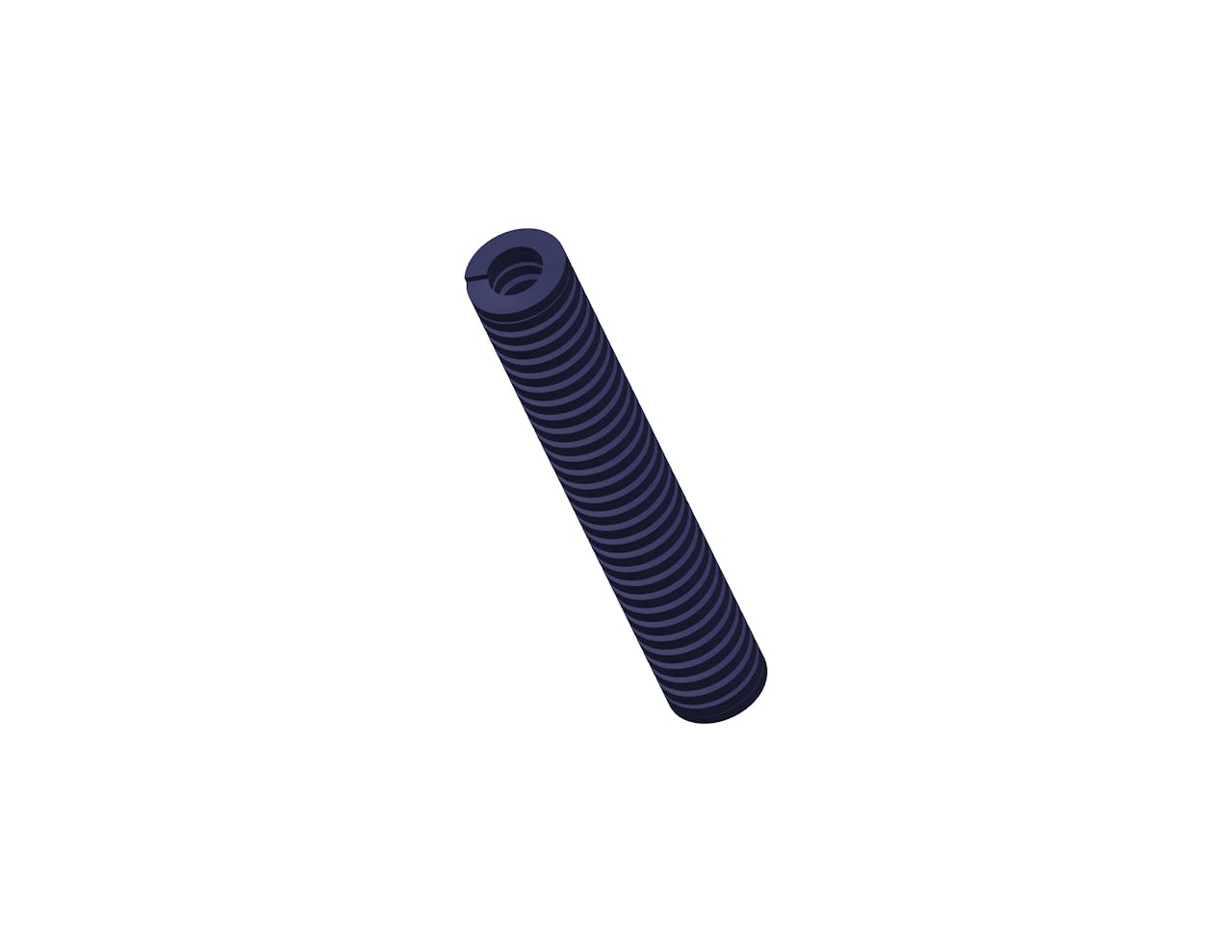

D-9162421CS - 6 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

6 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 186 lb
Brand Century Spring
Deflection For Average Life 1.5 in
Deflection For Long Life 1.8 in
Display Name D-9162421
Duty Load Medium
Finish None
Finish Color Blue
Free Length 6 in
Hole Size 1 in
Long Life Deflection Force 223 lb
Material Chrome Silicon
Maximum Deflection 2.24 in
Maximum Deflection Force 278 lb
Measurement Units Standard
Rate 124 lbs/in
Rod Size 0.5 in
SKU D-9162421CS
Wire Diameter 0.214 in x 0.124 in
Specs (in metric)
Label Value
Average Life Deflection Force 84.35 kg
Brand Century Spring
Deflection For Average Life 38.1 mm
Deflection For Long Life 45.72 mm
Display Name D-9162421
Duty Load Medium
Finish None
Finish Color Blue
Free Length 152.4 mm
Hole Size 25.4 mm
Long Life Deflection Force 101.13 kg
Material Chrome Silicon
Maximum Deflection 56.9 mm
Maximum Deflection Force 126.08 kg
Measurement Units Standard
Rate 21.71 N/mm
Rod Size 12.7 mm
SKU D-9162421CS
Wire Diameter 5.44 mm x 3.15 mm
