Century Spring

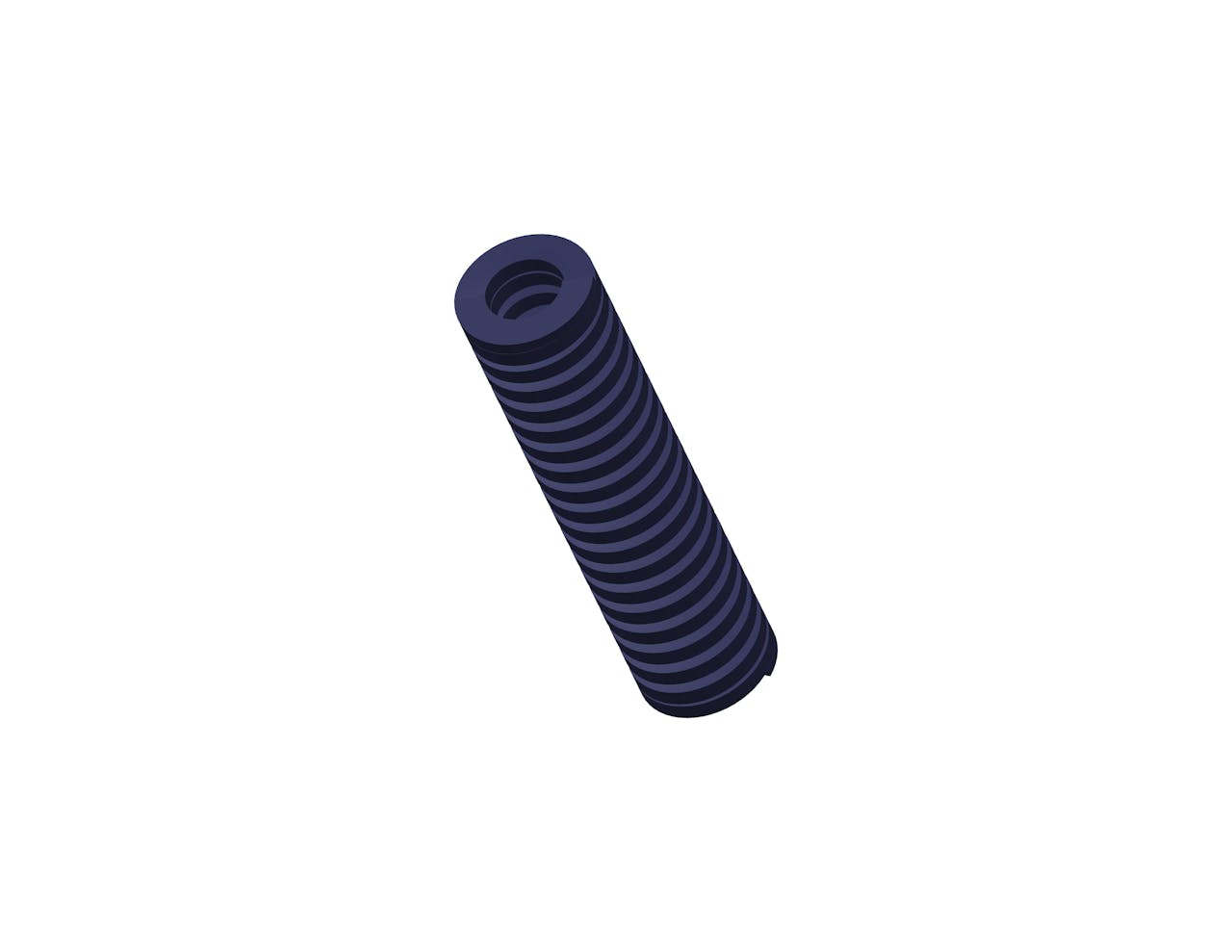

D-9161621CS - 4 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

4 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 189 lb
Brand Century Spring
Deflection For Average Life 1 in
Deflection For Long Life 1.2 in
Display Name D-9161621
Duty Load Medium
Finish None
Finish Color Blue
Free Length 4 in
Hole Size 1 in
Long Life Deflection Force 226 lb
Material Chrome Silicon
Maximum Deflection 1.51 in
Maximum Deflection Force 283 lb
Measurement Units Standard
Rate 188 lbs/in
Rod Size 0.5 in
SKU D-9161621CS
Wire Diameter 0.214 in x 0.124 in
Specs (in metric)
Label Value
Average Life Deflection Force 85.71 kg
Brand Century Spring
Deflection For Average Life 25.4 mm
Deflection For Long Life 30.48 mm
Display Name D-9161621
Duty Load Medium
Finish None
Finish Color Blue
Free Length 101.6 mm
Hole Size 25.4 mm
Long Life Deflection Force 102.49 kg
Material Chrome Silicon
Maximum Deflection 38.35 mm
Maximum Deflection Force 128.34 kg
Measurement Units Standard
Rate 32.92 N/mm
Rod Size 12.7 mm
SKU D-9161621CS
Wire Diameter 5.44 mm x 3.15 mm
