Century Spring

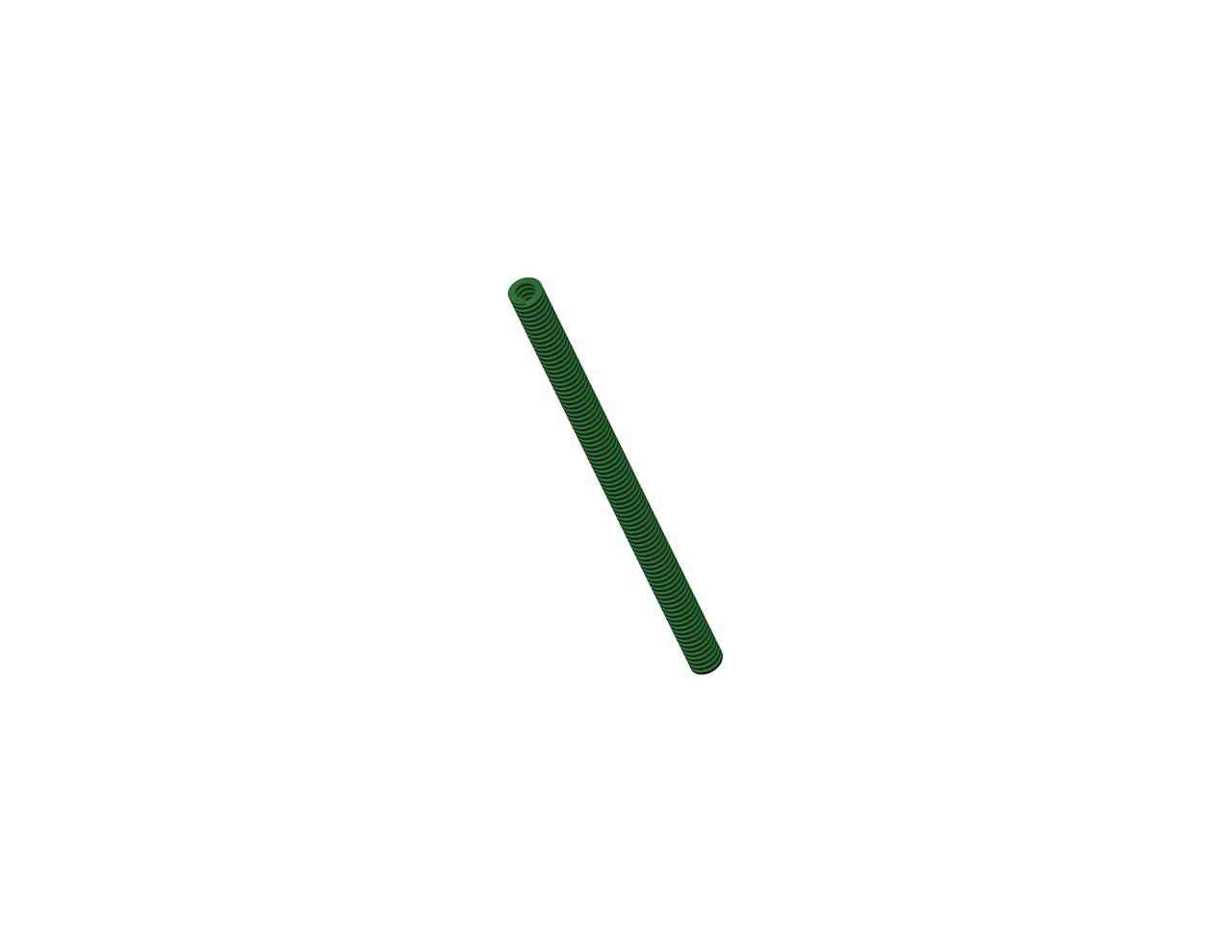

D-9124811CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 65 lb
Brand Century Spring
Deflection For Average Life 3 in
Deflection For Long Life 3.6 in
Display Name D-9124811
Duty Load Light
Finish None
Finish Color Green
Free Length 12 in
Hole Size 0.75 in
Long Life Deflection Force 78 lb
Material Chrome Silicon
Maximum Deflection 4.8 in
Maximum Deflection Force 104 lb
Measurement Units Standard
Rate 22 lbs/in
Rod Size 0.375 in
SKU D-9124811CS
Wire Diameter 0.155 in x 0.082 in
Specs (in metric)
Label Value
Average Life Deflection Force 29.48 kg
Brand Century Spring
Deflection For Average Life 76.2 mm
Deflection For Long Life 91.44 mm
Display Name D-9124811
Duty Load Light
Finish None
Finish Color Green
Free Length 304.8 mm
Hole Size 19.05 mm
Long Life Deflection Force 35.37 kg
Material Chrome Silicon
Maximum Deflection 121.92 mm
Maximum Deflection Force 47.17 kg
Measurement Units Standard
Rate 3.85 N/mm
Rod Size 9.53 mm
SKU D-9124811CS
Wire Diameter 3.94 mm x 2.08 mm
