Century Spring

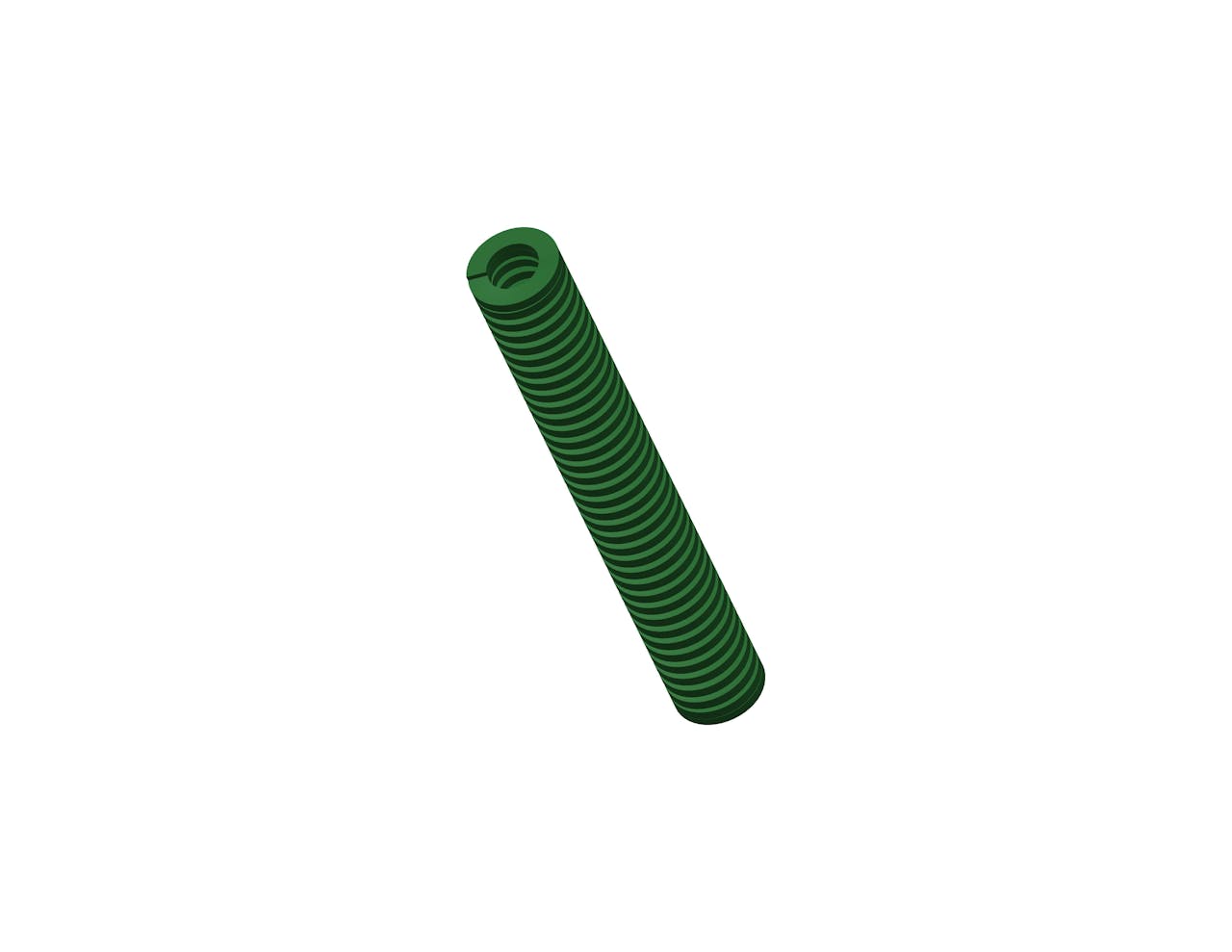

D-9122011CS - 5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 66 lb
Brand Century Spring
Deflection For Average Life 1.25 in
Deflection For Long Life 1.5 in
Display Name D-9122011
Duty Load Light
Finish None
Finish Color Green
Free Length 5 in
Hole Size 0.75 in
Long Life Deflection Force 80 lb
Material Chrome Silicon
Maximum Deflection 2 in
Maximum Deflection Force 106 lb
Measurement Units Standard
Rate 53 lbs/in
Rod Size 0.375 in
SKU D-9122011CS
Wire Diameter 0.155 in x 0.082 in
Specs (in metric)
Label Value
Average Life Deflection Force 29.93 kg
Brand Century Spring
Deflection For Average Life 31.75 mm
Deflection For Long Life 38.1 mm
Display Name D-9122011
Duty Load Light
Finish None
Finish Color Green
Free Length 127 mm
Hole Size 19.05 mm
Long Life Deflection Force 36.28 kg
Material Chrome Silicon
Maximum Deflection 50.8 mm
Maximum Deflection Force 48.07 kg
Measurement Units Standard
Rate 9.28 N/mm
Rod Size 9.53 mm
SKU D-9122011CS
Wire Diameter 3.94 mm x 2.08 mm
