Century Spring

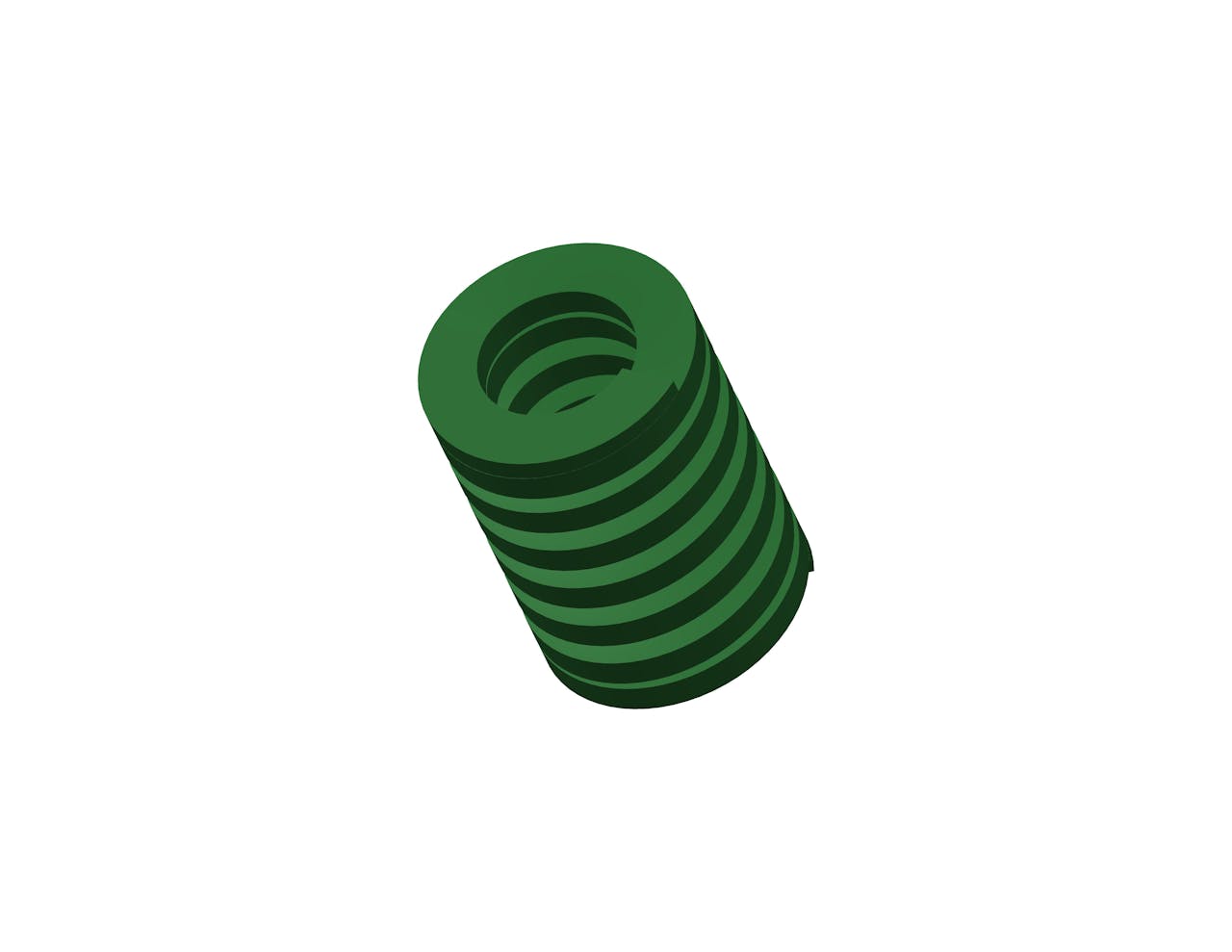

D-9120411CS - 1 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 79 lb
Brand Century Spring
Deflection For Average Life 0.25 in
Deflection For Long Life 0.3 in
Display Name D-9120411
Duty Load Light
Finish None
Finish Color Green
Free Length 1 in
Hole Size 0.75 in
Long Life Deflection Force 94 lb
Material Chrome Silicon
Maximum Deflection 0.4 in
Maximum Deflection Force 126 lb
Measurement Units Standard
Rate 320 lbs/in
Rod Size 0.375 in
SKU D-9120411CS
Wire Diameter 0.155 in x 0.082 in
Specs (in metric)
Label Value
Average Life Deflection Force 35.83 kg
Brand Century Spring
Deflection For Average Life 6.35 mm
Deflection For Long Life 7.62 mm
Display Name D-9120411
Duty Load Light
Finish None
Finish Color Green
Free Length 25.4 mm
Hole Size 19.05 mm
Long Life Deflection Force 42.63 kg
Material Chrome Silicon
Maximum Deflection 10.16 mm
Maximum Deflection Force 57.14 kg
Measurement Units Standard
Rate 56.03 N/mm
Rod Size 9.53 mm
SKU D-9120411CS
Wire Diameter 3.94 mm x 2.08 mm
