Century Spring

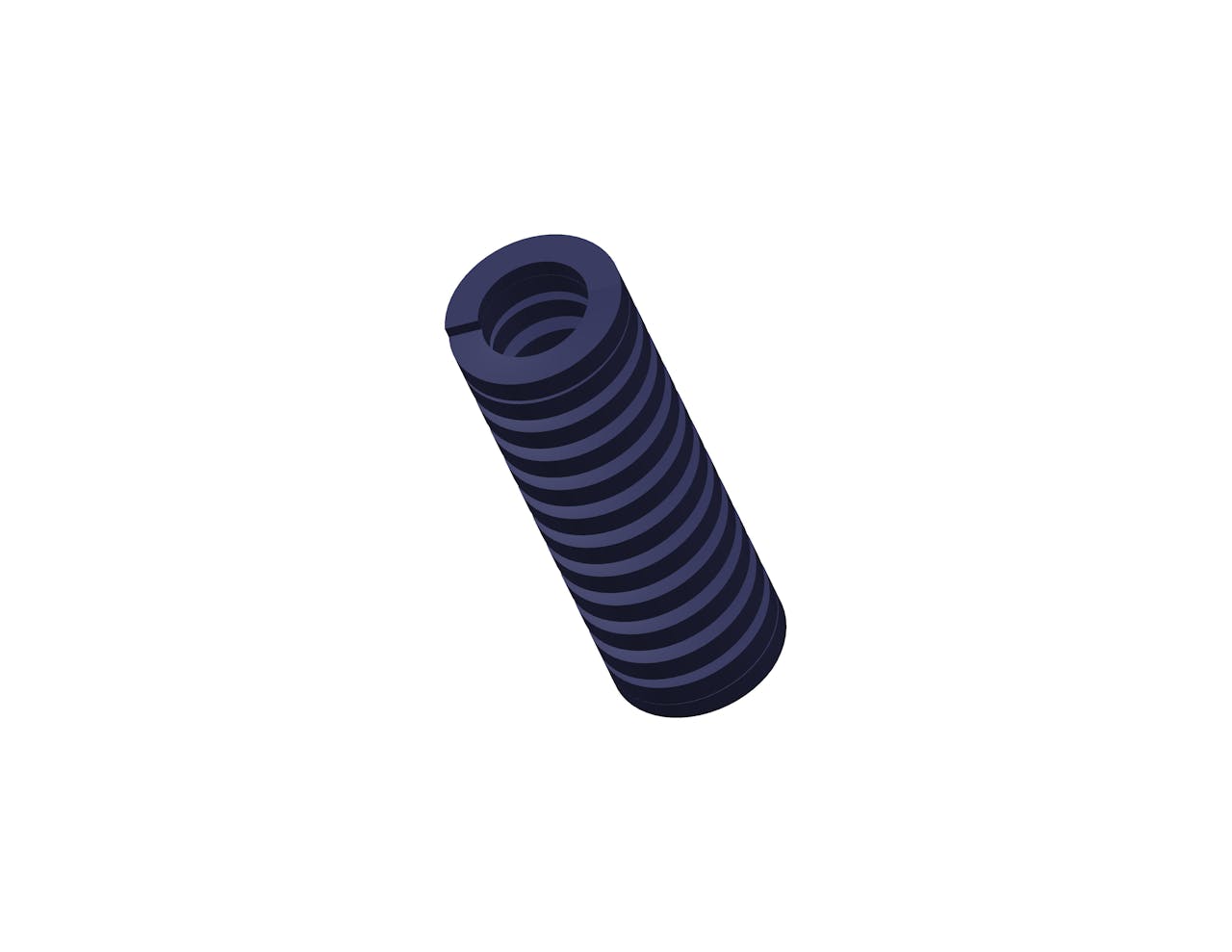

D-9100721CS - 1.75 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1.75 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 75 lb
Brand Century Spring
Deflection For Average Life 0.43 in
Deflection For Long Life 0.52 in
Display Name D-9100721
Duty Load Medium
Finish None
Finish Color Blue
Free Length 1.75 in
Hole Size 0.625 in
Long Life Deflection Force 90 lb
Material Chrome Silicon
Maximum Deflection 0.65 in
Maximum Deflection Force 113 lb
Measurement Units Standard
Rate 174 lbs/in
Rod Size 0.3428 in
SKU D-9100721CS
Wire Diameter 0.112 in x 0.086 in
Specs (in metric)
Label Value
Average Life Deflection Force 34.01 kg
Brand Century Spring
Deflection For Average Life 10.92 mm
Deflection For Long Life 13.21 mm
Display Name D-9100721
Duty Load Medium
Finish None
Finish Color Blue
Free Length 44.45 mm
Hole Size 15.88 mm
Long Life Deflection Force 40.82 kg
Material Chrome Silicon
Maximum Deflection 16.51 mm
Maximum Deflection Force 51.25 kg
Measurement Units Standard
Rate 30.47 N/mm
Rod Size 8.71 mm
SKU D-9100721CS
Wire Diameter 2.84 mm x 2.18 mm
