Century Spring

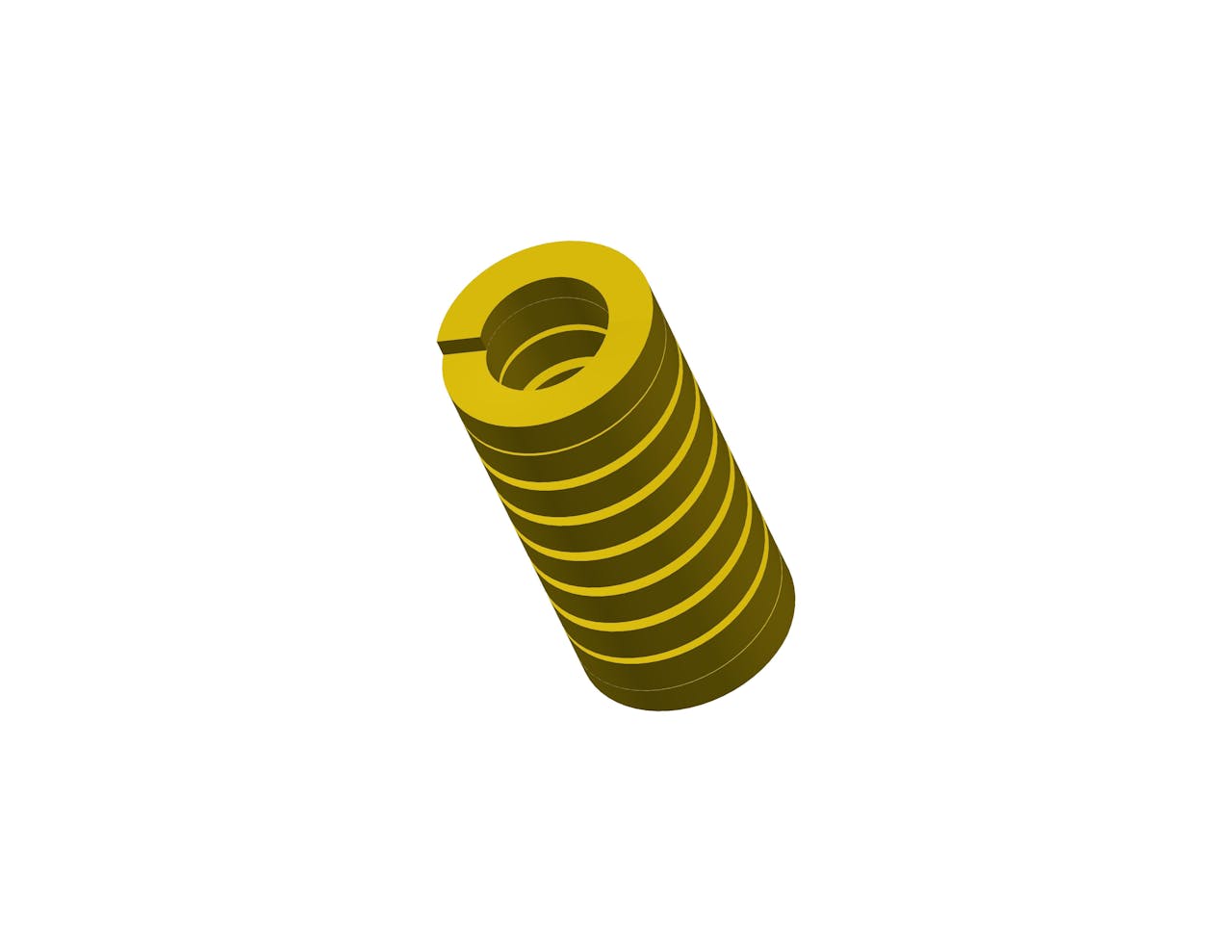

D-9100536CS - 1.25 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1.25 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 115 lb
Brand Century Spring
Deflection For Average Life 0.21 in
Deflection For Long Life 0.25 in
Display Name D-9100536
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 1.25 in
Hole Size 0.625 in
Long Life Deflection Force 135 lb
Material Chrome Silicon
Maximum Deflection 0.31 in
Maximum Deflection Force 169 lb
Measurement Units Standard
Rate 537 lbs/in
Rod Size 0.3428 in
SKU D-9100536CS
Wire Diameter 0.123 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 52.15 kg
Brand Century Spring
Deflection For Average Life 5.33 mm
Deflection For Long Life 6.35 mm
Display Name D-9100536
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 31.75 mm
Hole Size 15.88 mm
Long Life Deflection Force 61.22 kg
Material Chrome Silicon
Maximum Deflection 7.87 mm
Maximum Deflection Force 76.64 kg
Measurement Units Standard
Rate 94.03 N/mm
Rod Size 8.71 mm
SKU D-9100536CS
Wire Diameter 3.12 mm x 2.92 mm
