Century Spring

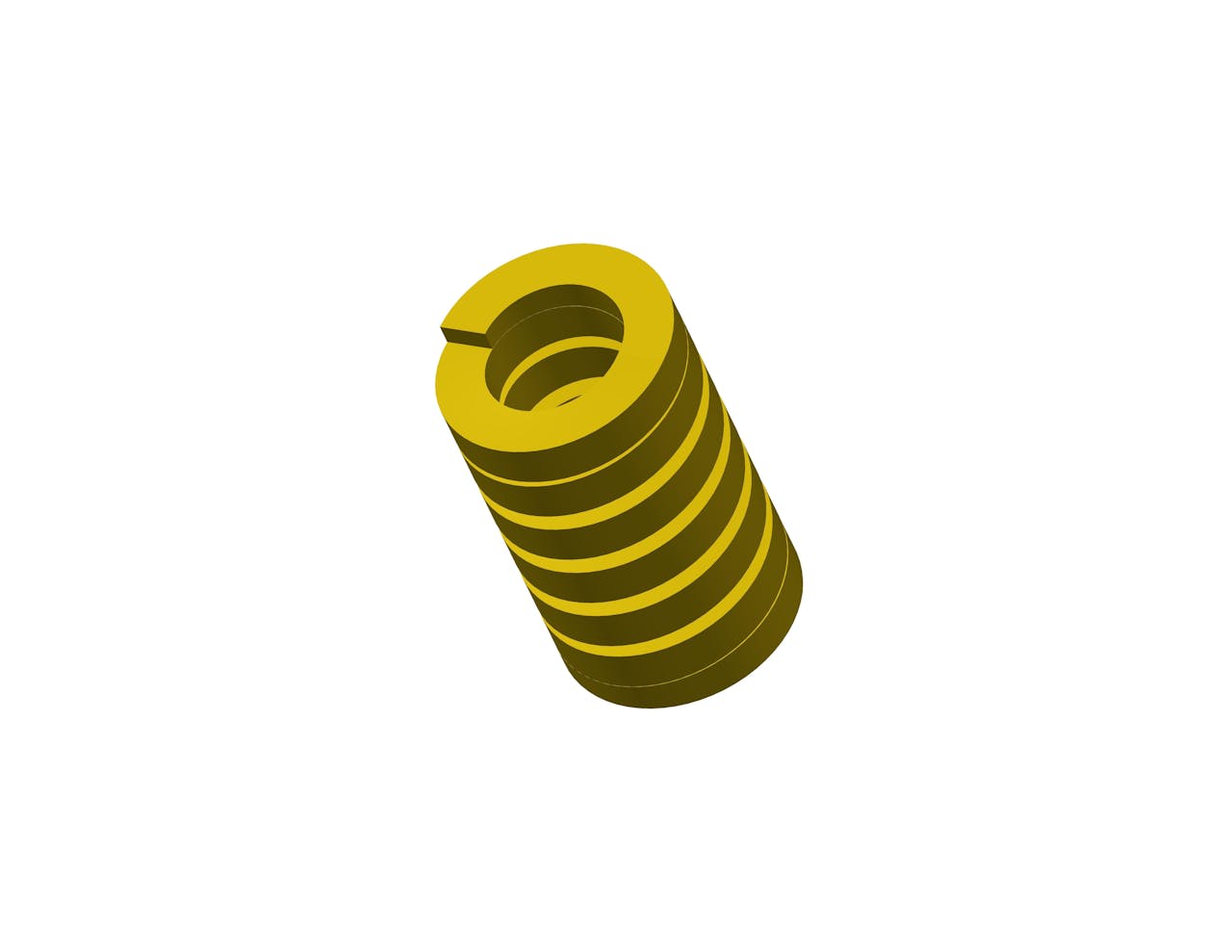

D-9100436CS - 1 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 122 lb
Brand Century Spring
Deflection For Average Life 0.17 in
Deflection For Long Life 0.2 in
Display Name D-9100436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 1 in
Hole Size 0.625 in
Long Life Deflection Force 143 lb
Material Chrome Silicon
Maximum Deflection 0.25 in
Maximum Deflection Force 179 lb
Measurement Units Standard
Rate 727 lbs/in
Rod Size 0.3428 in
SKU D-9100436CS
Wire Diameter 0.123 in x 0.115 in
Specs (in metric)
Label Value
Average Life Deflection Force 55.33 kg
Brand Century Spring
Deflection For Average Life 4.32 mm
Deflection For Long Life 5.08 mm
Display Name D-9100436
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 25.4 mm
Hole Size 15.88 mm
Long Life Deflection Force 64.85 kg
Material Chrome Silicon
Maximum Deflection 6.35 mm
Maximum Deflection Force 81.18 kg
Measurement Units Standard
Rate 127.3 N/mm
Rod Size 8.71 mm
SKU D-9100436CS
Wire Diameter 3.12 mm x 2.92 mm
