Century Spring

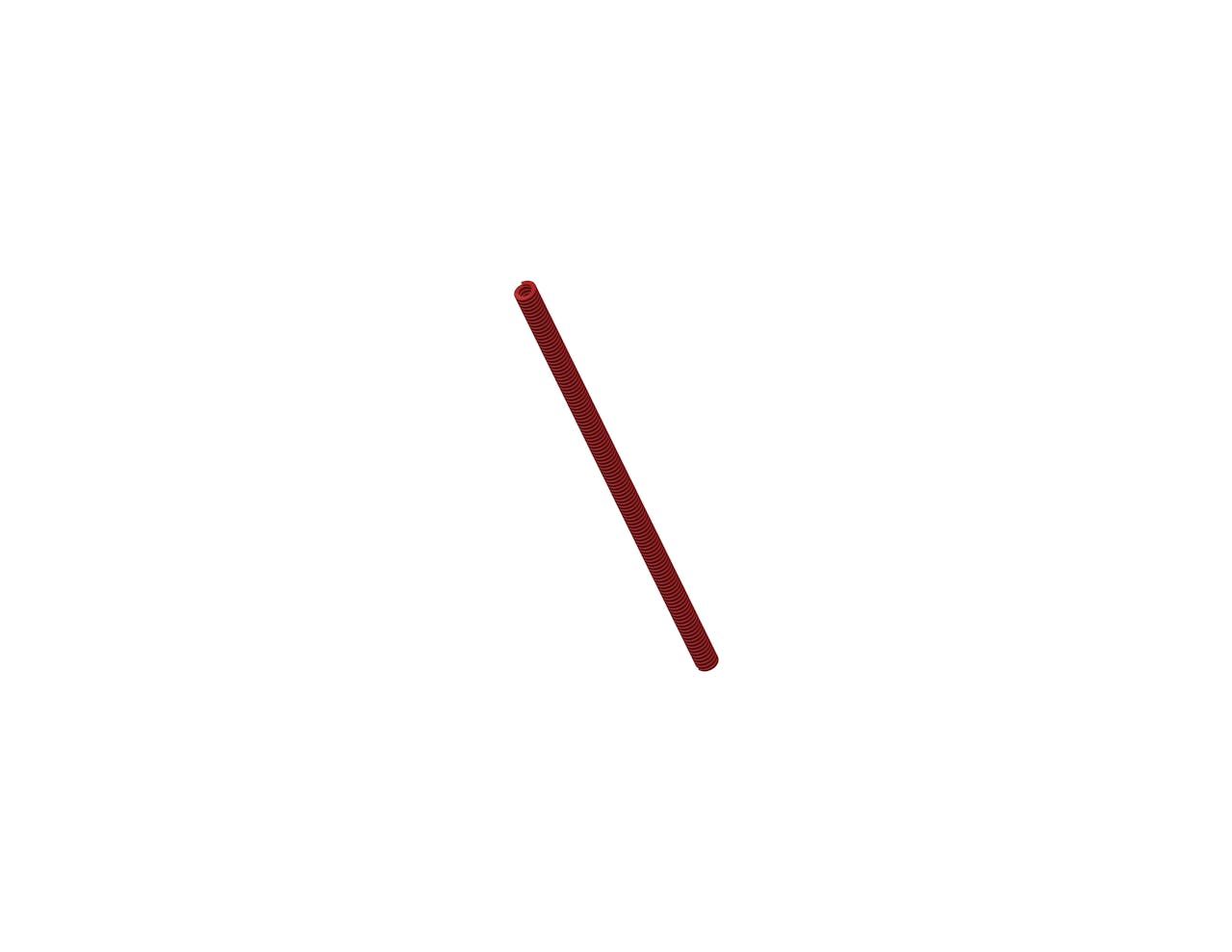

D-9084826CS - 12 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 43 lb
Brand Century Spring
Deflection For Average Life 2.4 in
Deflection For Long Life 3 in
Display Name D-9084826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 12 in
Hole Size 0.5 in
Long Life Deflection Force 53 lb
Material Chrome Silicon
Maximum Deflection 3.6 in
Maximum Deflection Force 64 lb
Measurement Units Standard
Rate 18 lbs/in
Rod Size 0.2813 in
SKU D-9084826CS
Wire Diameter 0.095 in x 0.071 in
Specs (in metric)
Label Value
Average Life Deflection Force 19.5 kg
Brand Century Spring
Deflection For Average Life 60.96 mm
Deflection For Long Life 76.2 mm
Display Name D-9084826
Duty Load Heavy
Finish None
Finish Color Red
Free Length 304.8 mm
Hole Size 12.7 mm
Long Life Deflection Force 24.04 kg
Material Chrome Silicon
Maximum Deflection 91.44 mm
Maximum Deflection Force 29.02 kg
Measurement Units Standard
Rate 3.15 N/mm
Rod Size 7.15 mm
SKU D-9084826CS
Wire Diameter 2.41 mm x 1.8 mm
