Century Spring

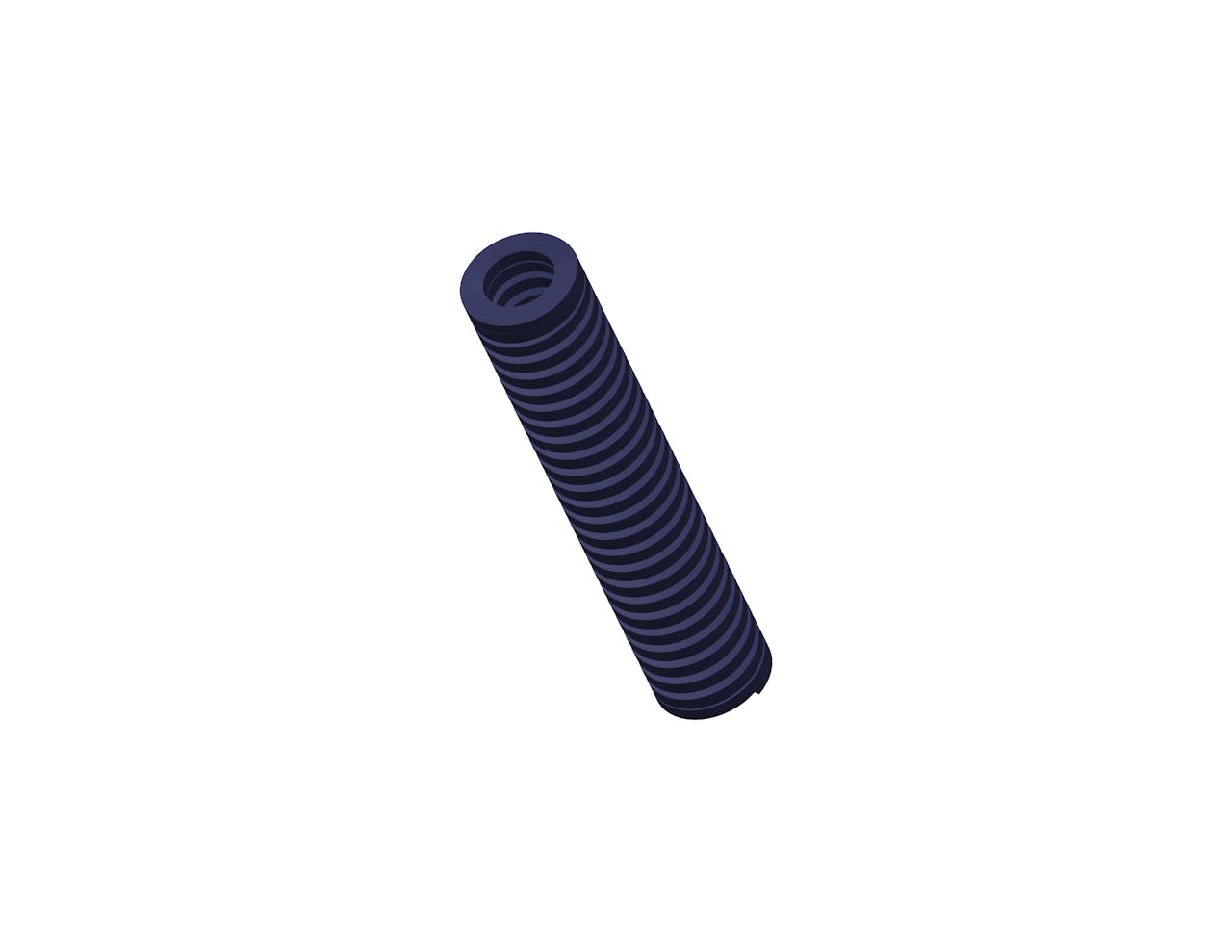

D-9081021CS - 2.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 40 lb
Brand Century Spring
Deflection For Average Life 0.63 in
Deflection For Long Life 0.76 in
Display Name D-9081021
Duty Load Medium
Finish None
Finish Color Blue
Free Length 2.5 in
Hole Size 0.5 in
Long Life Deflection Force 48 lb
Material Chrome Silicon
Maximum Deflection 0.94 in
Maximum Deflection Force 60 lb
Measurement Units Standard
Rate 63 lbs/in
Rod Size 0.2813 in
SKU D-9081021CS
Wire Diameter 0.095 in x 0.06 in
Specs (in metric)
Label Value
Average Life Deflection Force 18.14 kg
Brand Century Spring
Deflection For Average Life 16 mm
Deflection For Long Life 19.3 mm
Display Name D-9081021
Duty Load Medium
Finish None
Finish Color Blue
Free Length 63.5 mm
Hole Size 12.7 mm
Long Life Deflection Force 21.77 kg
Material Chrome Silicon
Maximum Deflection 23.88 mm
Maximum Deflection Force 27.21 kg
Measurement Units Standard
Rate 11.03 N/mm
Rod Size 7.15 mm
SKU D-9081021CS
Wire Diameter 2.41 mm x 1.52 mm
