Century Spring

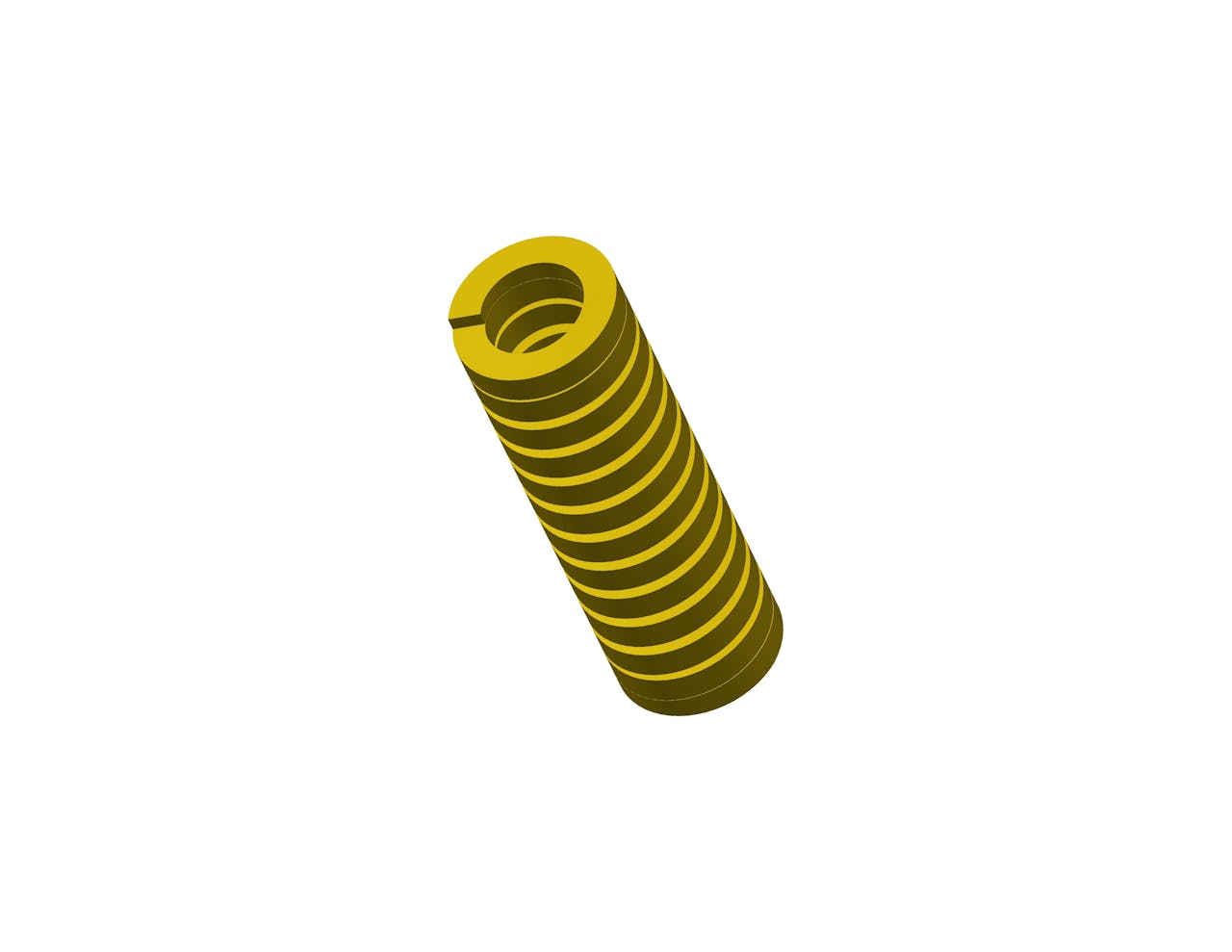

D-9080636CS - 1.5 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 53 lb
Brand Century Spring
Deflection For Average Life 0.25 in
Deflection For Long Life 0.3 in
Display Name D-9080636
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 1.5 in
Hole Size 0.5 in
Long Life Deflection Force 62 lb
Material Chrome Silicon
Maximum Deflection 0.37 in
Maximum Deflection Force 77 lb
Measurement Units Standard
Rate 207 lbs/in
Rod Size 0.2813 in
SKU D-9080636CS
Wire Diameter 0.093 in x 0.088 in
Specs (in metric)
Label Value
Average Life Deflection Force 24.04 kg
Brand Century Spring
Deflection For Average Life 6.35 mm
Deflection For Long Life 7.62 mm
Display Name D-9080636
Duty Load Extra Heavy
Finish None
Finish Color Yellow
Free Length 38.1 mm
Hole Size 12.7 mm
Long Life Deflection Force 28.12 kg
Material Chrome Silicon
Maximum Deflection 9.4 mm
Maximum Deflection Force 34.92 kg
Measurement Units Standard
Rate 36.25 N/mm
Rod Size 7.15 mm
SKU D-9080636CS
Wire Diameter 2.36 mm x 2.24 mm
