Century Spring

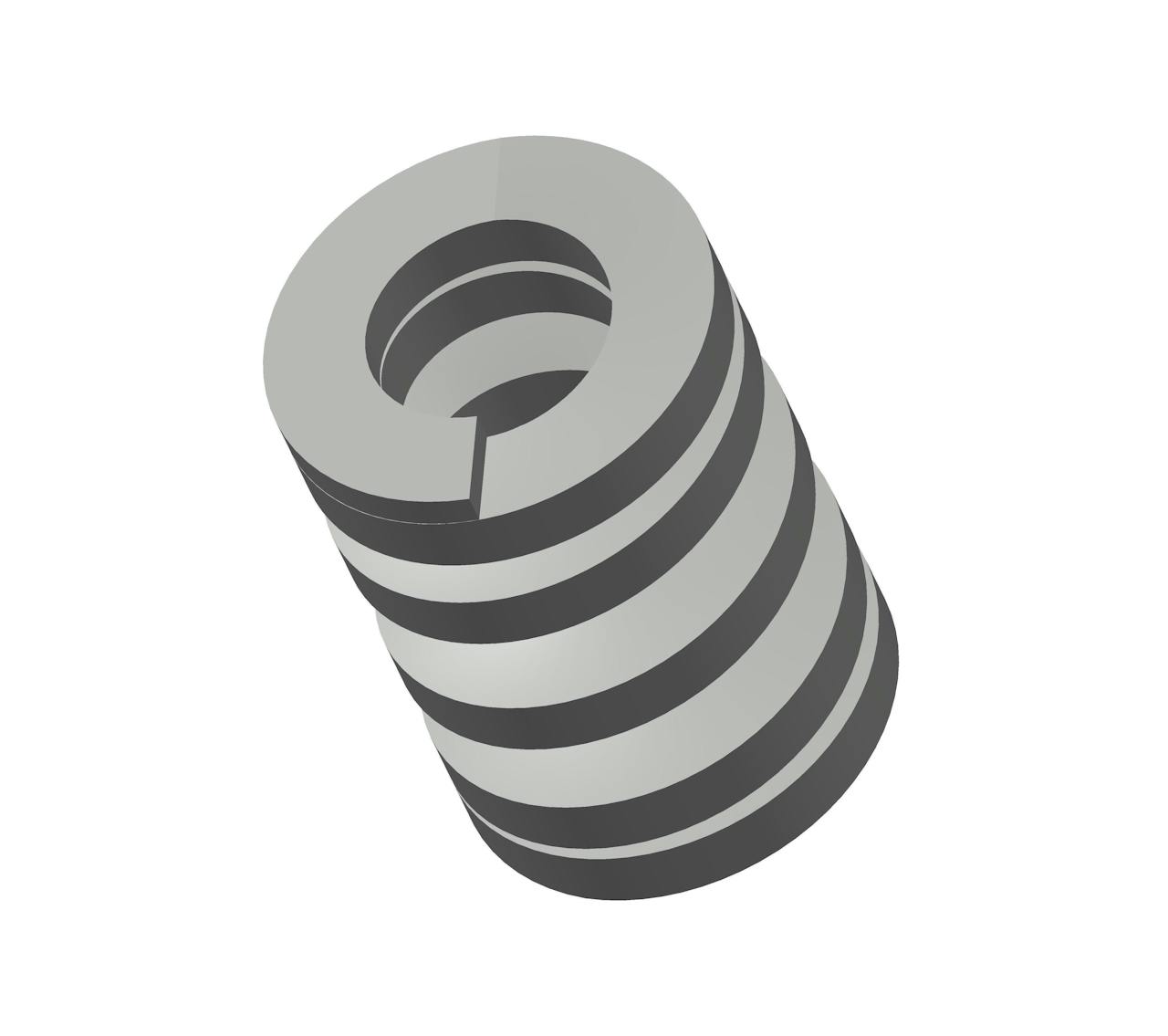

D-66CS - 1.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 438 lb
Brand Century Spring
Deflection For Average Life 0.38 in
Display Name D-66
Duty Load Medium
Finish None
Free Length 1.5 in
Hole Size 1.125 in
Material Oil Tempered
Maximum Deflection 0.6 in
Maximum Deflection Force 701 lb
Measurement Units Standard
Rate 1168 lbs/in
Rod Size 0.5625 in
SKU D-66CS
Wire Diameter 0.25 in x 0.156 in
Specs (in metric)
Label Value
Average Life Deflection Force 198.64 kg
Brand Century Spring
Deflection For Average Life 9.65 mm
Display Name D-66
Duty Load Medium
Finish None
Free Length 38.1 mm
Hole Size 28.58 mm
Material Oil Tempered
Maximum Deflection 15.24 mm
Maximum Deflection Force 317.91 kg
Measurement Units Standard
Rate 204.52 N/mm
Rod Size 14.29 mm
SKU D-66CS
Wire Diameter 6.35 mm x 3.96 mm
