Century Spring

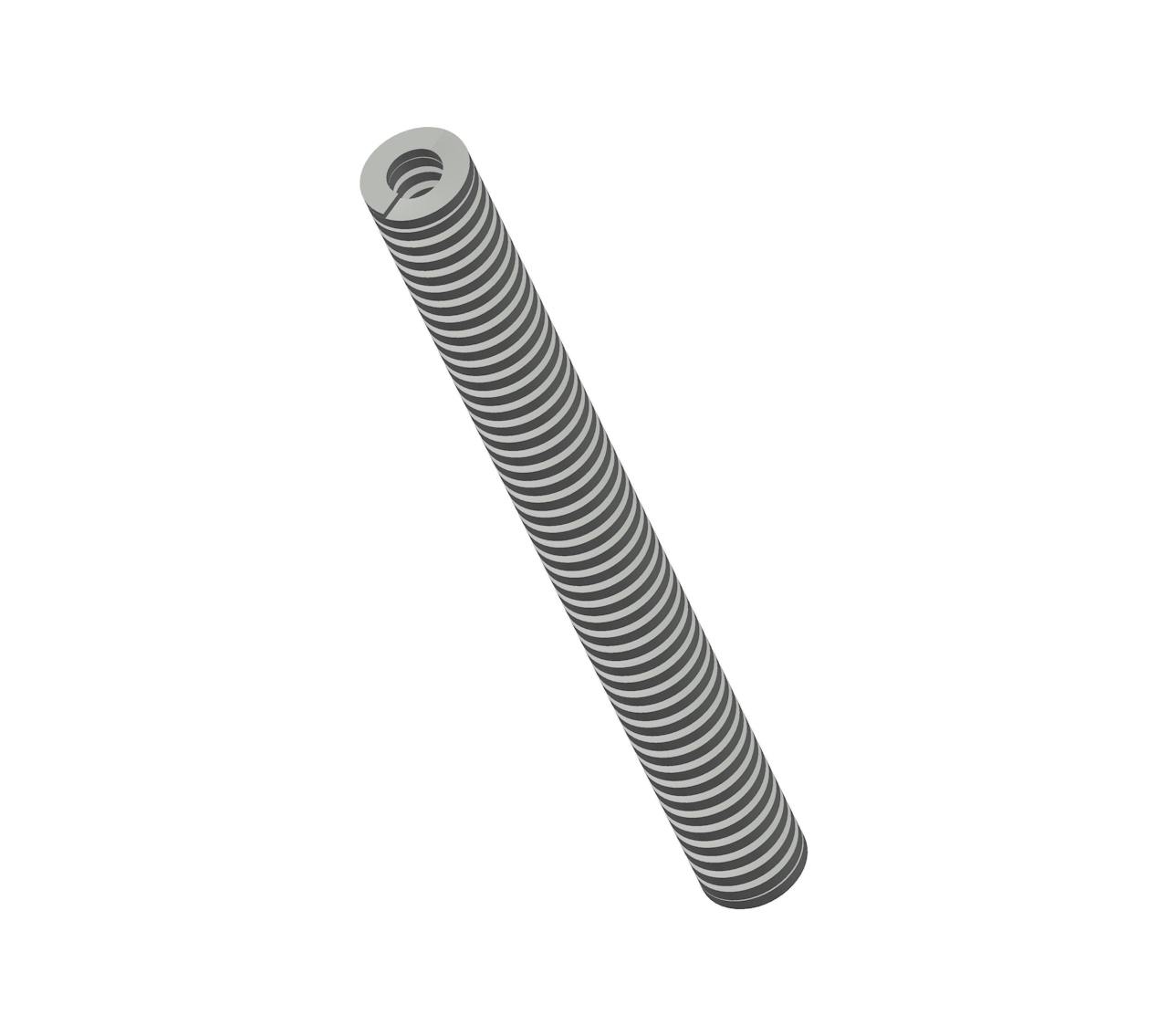

D-64CS - 10 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

10 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 250 lb
Brand Century Spring
Deflection For Average Life 2.5 in
Display Name D-64
Duty Load Medium
Finish None
Free Length 10 in
Hole Size 1.0625 in
Material Oil Tempered
Maximum Deflection 4 in
Maximum Deflection Force 400 lb
Measurement Units Standard
Rate 100 lbs/in
Rod Size 0.5 in
SKU D-64CS
Wire Diameter 0.25 in x 0.125 in
Specs (in metric)
Label Value
Average Life Deflection Force 113.38 kg
Brand Century Spring
Deflection For Average Life 63.5 mm
Display Name D-64
Duty Load Medium
Finish None
Free Length 254 mm
Hole Size 26.99 mm
Material Oil Tempered
Maximum Deflection 101.6 mm
Maximum Deflection Force 181.41 kg
Measurement Units Standard
Rate 17.51 N/mm
Rod Size 12.7 mm
SKU D-64CS
Wire Diameter 6.35 mm x 3.18 mm
