Century Spring

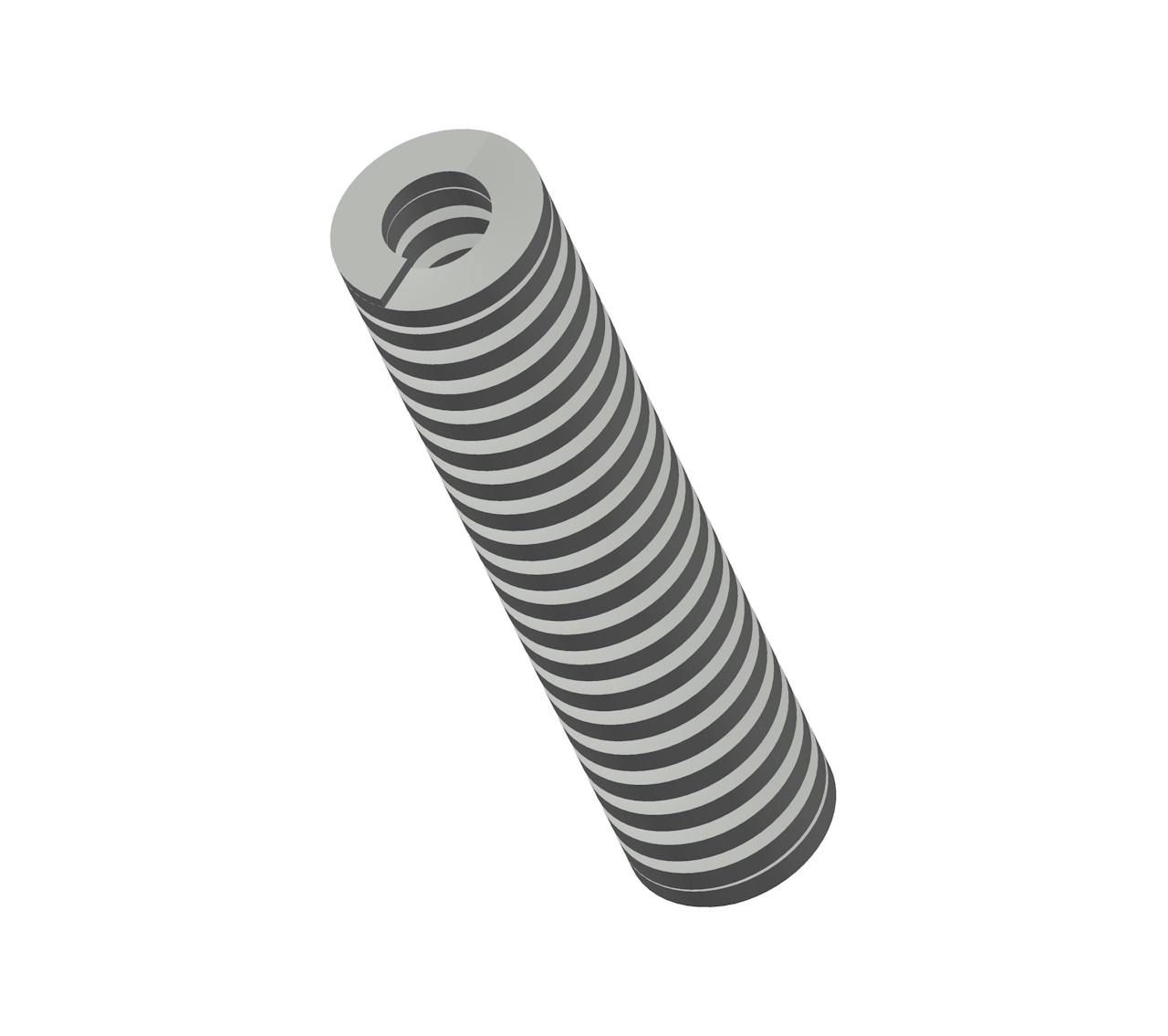

D-59CS - 4.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 270 lb
Brand Century Spring
Deflection For Average Life 1.13 in
Display Name D-59
Duty Load Medium
Finish None
Free Length 4.5 in
Hole Size 1.0625 in
Material Oil Tempered
Maximum Deflection 1.8 in
Maximum Deflection Force 432 lb
Measurement Units Standard
Rate 240 lbs/in
Rod Size 0.5 in
SKU D-59CS
Wire Diameter 0.25 in x 0.125 in
Specs (in metric)
Label Value
Average Life Deflection Force 122.45 kg
Brand Century Spring
Deflection For Average Life 28.7 mm
Display Name D-59
Duty Load Medium
Finish None
Free Length 114.3 mm
Hole Size 26.99 mm
Material Oil Tempered
Maximum Deflection 45.72 mm
Maximum Deflection Force 195.92 kg
Measurement Units Standard
Rate 42.02 N/mm
Rod Size 12.7 mm
SKU D-59CS
Wire Diameter 6.35 mm x 3.18 mm
