Century Spring

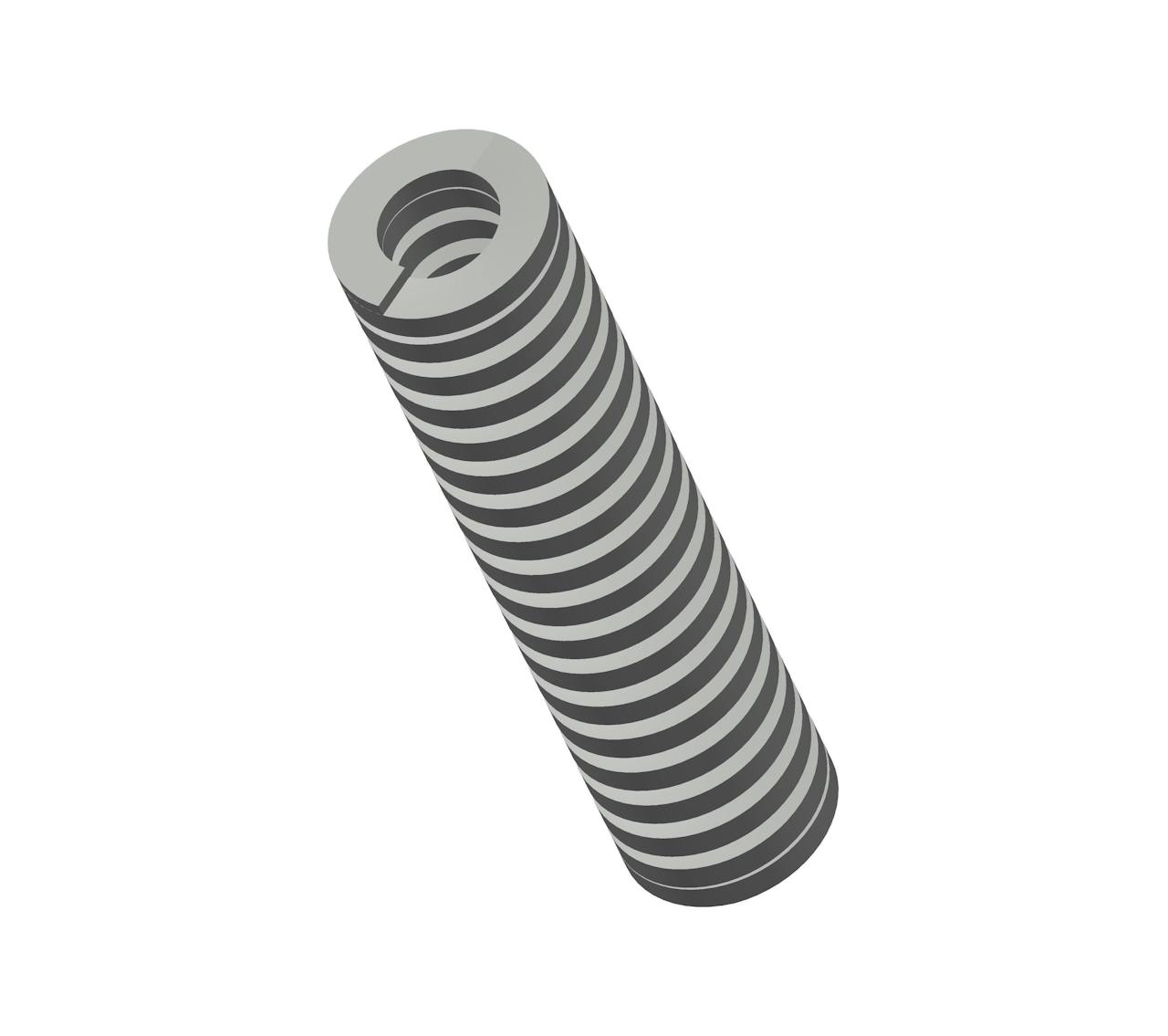

D-35CS - 3.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

3.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 128 lb
Brand Century Spring
Deflection For Average Life 0.88 in
Display Name D-35
Duty Load Medium
Finish None
Free Length 3.5 in
Hole Size 0.875 in
Material Oil Tempered
Maximum Deflection 1.4 in
Maximum Deflection Force 204 lb
Measurement Units Standard
Rate 146 lbs/in
Rod Size 0.4375 in
SKU D-35CS
Wire Diameter 0.188 in x 0.109 in
Specs (in metric)
Label Value
Average Life Deflection Force 58.05 kg
Brand Century Spring
Deflection For Average Life 22.35 mm
Display Name D-35
Duty Load Medium
Finish None
Free Length 88.9 mm
Hole Size 22.23 mm
Material Oil Tempered
Maximum Deflection 35.56 mm
Maximum Deflection Force 92.52 kg
Measurement Units Standard
Rate 25.56 N/mm
Rod Size 11.11 mm
SKU D-35CS
Wire Diameter 4.78 mm x 2.77 mm
