Century Spring

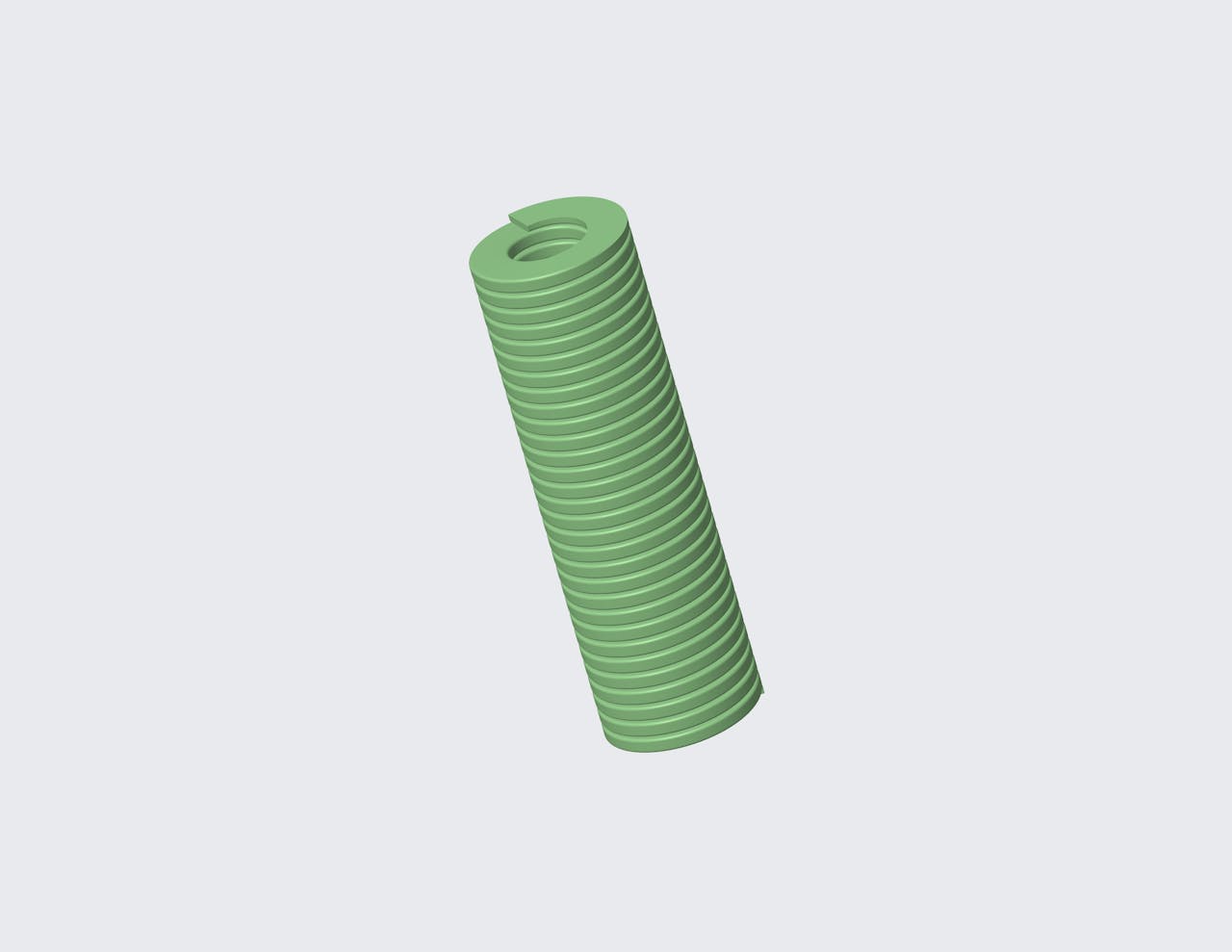

D-307828CS - 178 Millimeter Ultra Strong Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 178 Millimeter long and has a 698 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.7008 in
Deflection 2 0.9449 in
Deflection 3 1.0512 in
Display Name D-307828
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 7.0079 in
Hole Size 1.9685 in
Load 1 2792.9406 lbf
Load 2 3770.6835 lbf
Load 3 4189.7482 lbf
Load At Max Deflection 6276.9784 lbf
Material Chrome Silicon
Max Deflection 1.5748 in
Measurement Units Metric
Rate 3986.2935 lbs/in
Rod Size 0.9843 in
SKU D-307828CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 17.8 mm
Deflection 2 24 mm
Deflection 3 26.7 mm
Display Name D-307828
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 178 mm
Hole Size 50 mm
Load 1 12423 N
Load 2 16772 N
Load 3 18636 N
Load At Max Deflection 27920 N
Material Chrome Silicon
Max Deflection 40 mm
Measurement Units Metric
Rate 698 N/mm
Rod Size 25 mm
SKU D-307828CS
