Century Spring

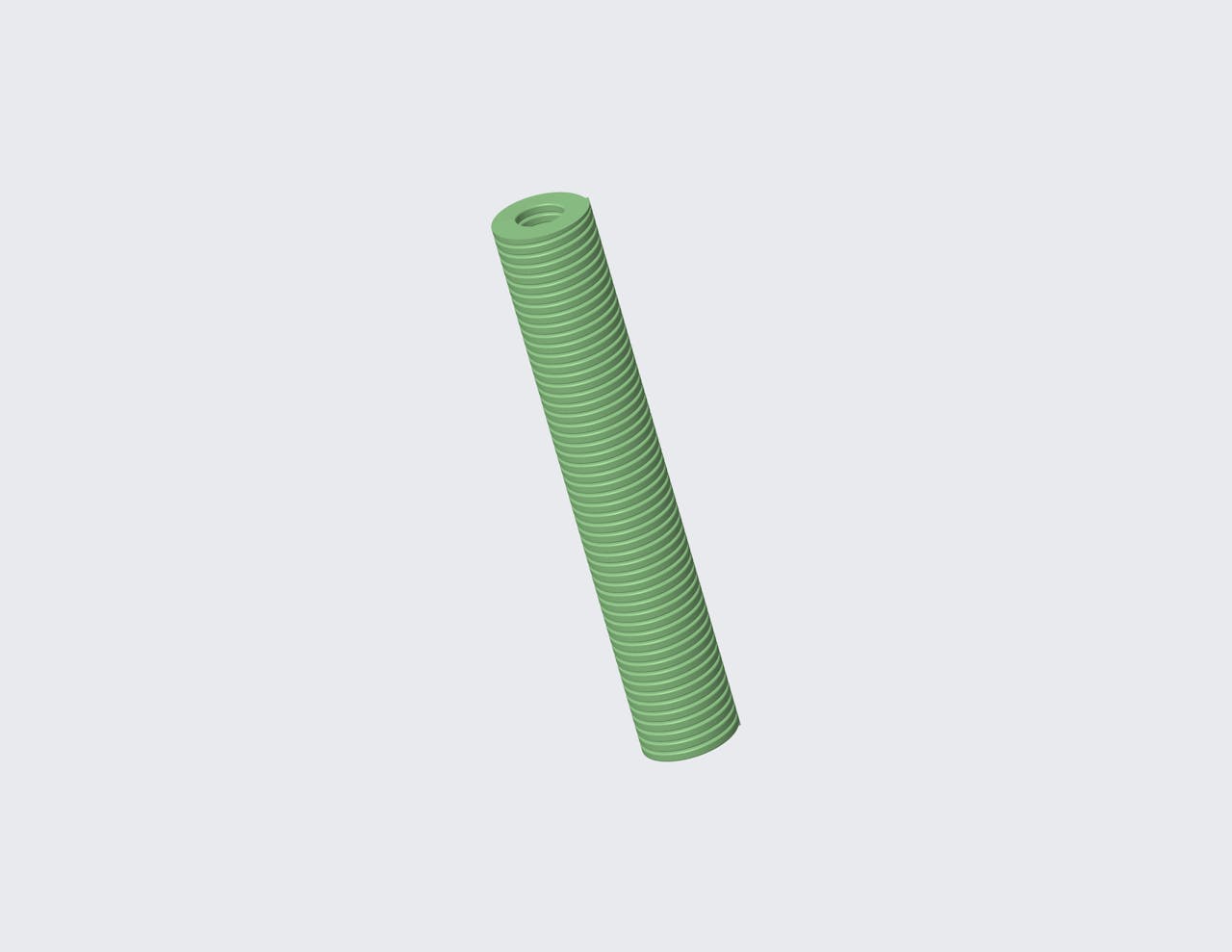

D-307740CS - 254 Millimeter Ultra Strong Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 254 Millimeter long and has a 296 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1 in
Deflection 2 1.3504 in
Deflection 3 1.5 in
Display Name D-307740
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 10 in
Hole Size 1.5748 in
Load 1 1690.1978 lbf
Load 2 2281.6996 lbf
Load 3 2535.2968 lbf
Load At Max Deflection 4125.8993 lbf
Material Chrome Silicon
Max Deflection 2.4409 in
Measurement Units Metric
Rate 1690.4626 lbs/in
Rod Size 0.7874 in
SKU D-307740CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.4 mm
Deflection 2 34.3 mm
Deflection 3 38.1 mm
Display Name D-307740
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 254 mm
Hole Size 40 mm
Load 1 7518 N
Load 2 10149 N
Load 3 11277 N
Load At Max Deflection 18352 N
Material Chrome Silicon
Max Deflection 62 mm
Measurement Units Metric
Rate 296 N/mm
Rod Size 20 mm
SKU D-307740CS
