Century Spring

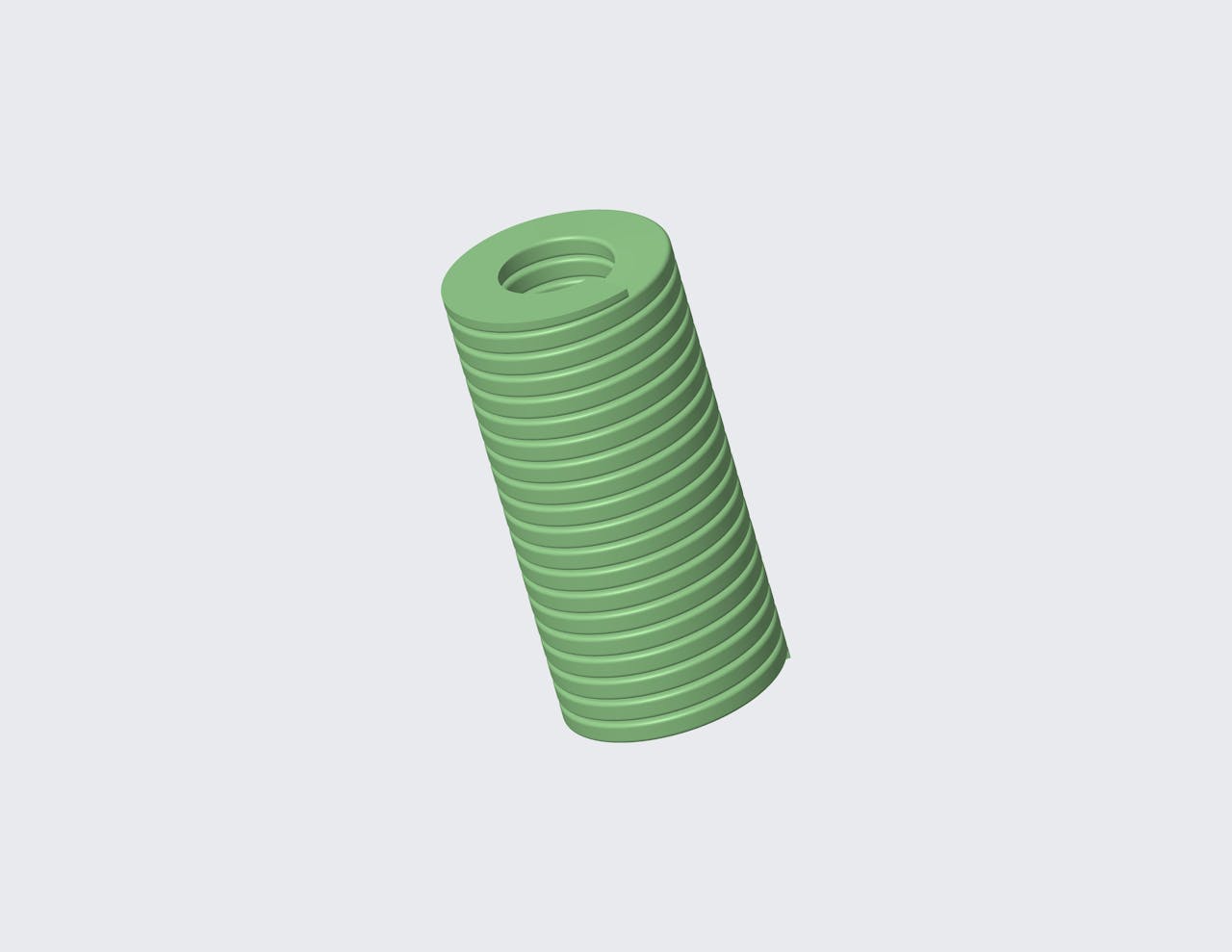

D-307714CS - 89 Millimeter Ultra Strong Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 89 Millimeter long and has a 880 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.3504 in
Deflection 2 0.4724 in
Deflection 3 0.5276 in
Display Name D-307714
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 3.5039 in
Hole Size 1.5748 in
Load 1 1760.7914 lbf
Load 2 2376.7986 lbf
Load 3 2640.9622 lbf
Load At Max Deflection 3956.8345 lbf
Material Chrome Silicon
Max Deflection 0.7874 in
Measurement Units Metric
Rate 5025.6996 lbs/in
Rod Size 0.7874 in
SKU D-307714CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 8.9 mm
Deflection 2 12 mm
Deflection 3 13.4 mm
Display Name D-307714
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 89 mm
Hole Size 40 mm
Load 1 7832 N
Load 2 10572 N
Load 3 11747 N
Load At Max Deflection 17600 N
Material Chrome Silicon
Max Deflection 20 mm
Measurement Units Metric
Rate 880 N/mm
Rod Size 20 mm
SKU D-307714CS
