Century Spring

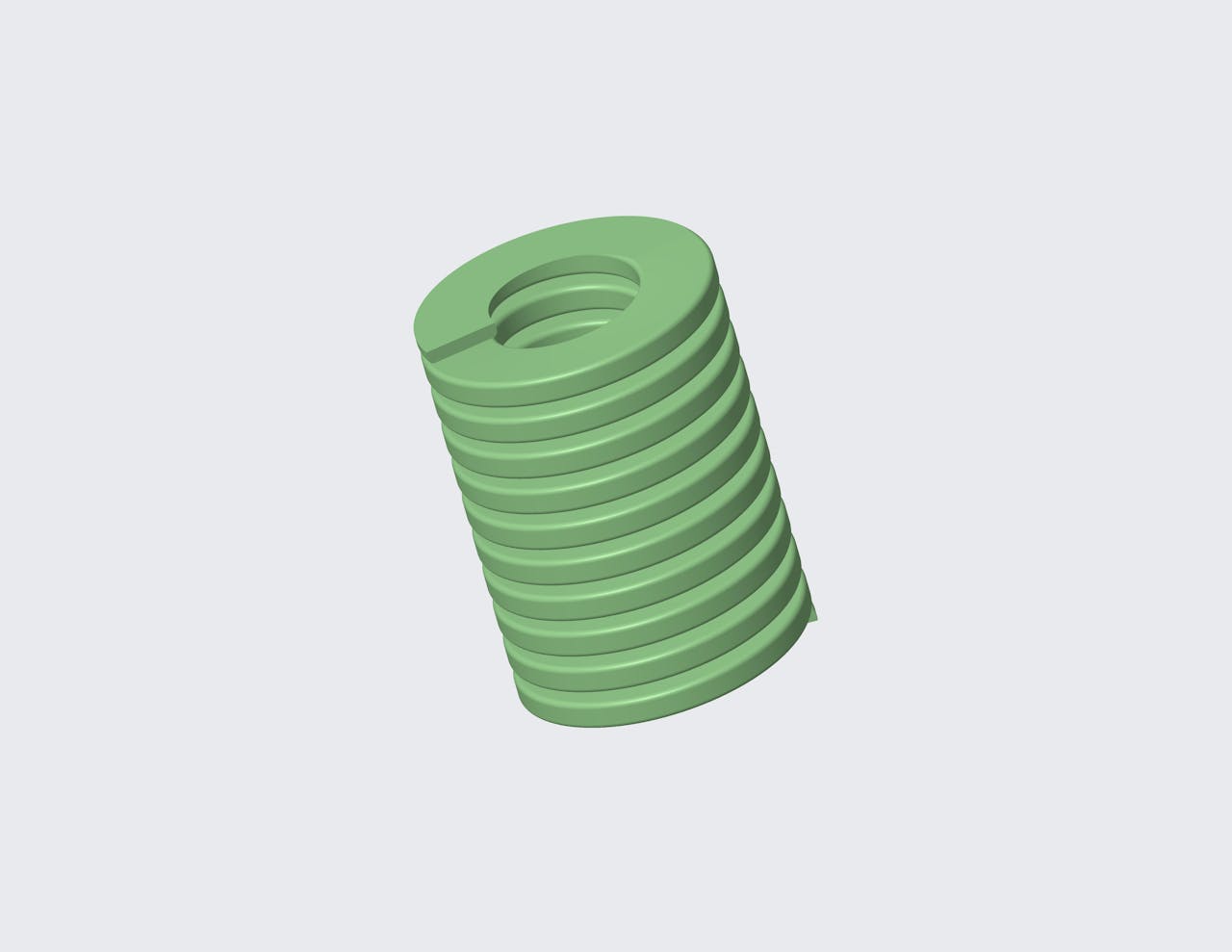

D-306812CS - 76 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 76 Millimeter long and has a 537.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5079 in
Deflection 2 0.5984 in
Deflection 3 0.748 in
Display Name D-306812
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 2.9921 in
Hole Size 1.9685 in
Load 1 1560.2518 lbf
Load 2 1835.4317 lbf
Load 3 2294.0647 lbf
Load At Max Deflection 3018.8849 lbf
Material Chrome Silicon
Max Deflection 0.9843 in
Measurement Units Metric
Rate 3067.3901 lbs/in
Rod Size 0.9843 in
SKU D-306812CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.9 mm
Deflection 2 15.2 mm
Deflection 3 19 mm
Display Name D-306812
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 76 mm
Hole Size 50 mm
Load 1 6940 N
Load 2 8164 N
Load 3 10204 N
Load At Max Deflection 13428 N
Material Chrome Silicon
Max Deflection 25 mm
Measurement Units Metric
Rate 537.1 N/mm
Rod Size 25 mm
SKU D-306812CS
