Century Spring

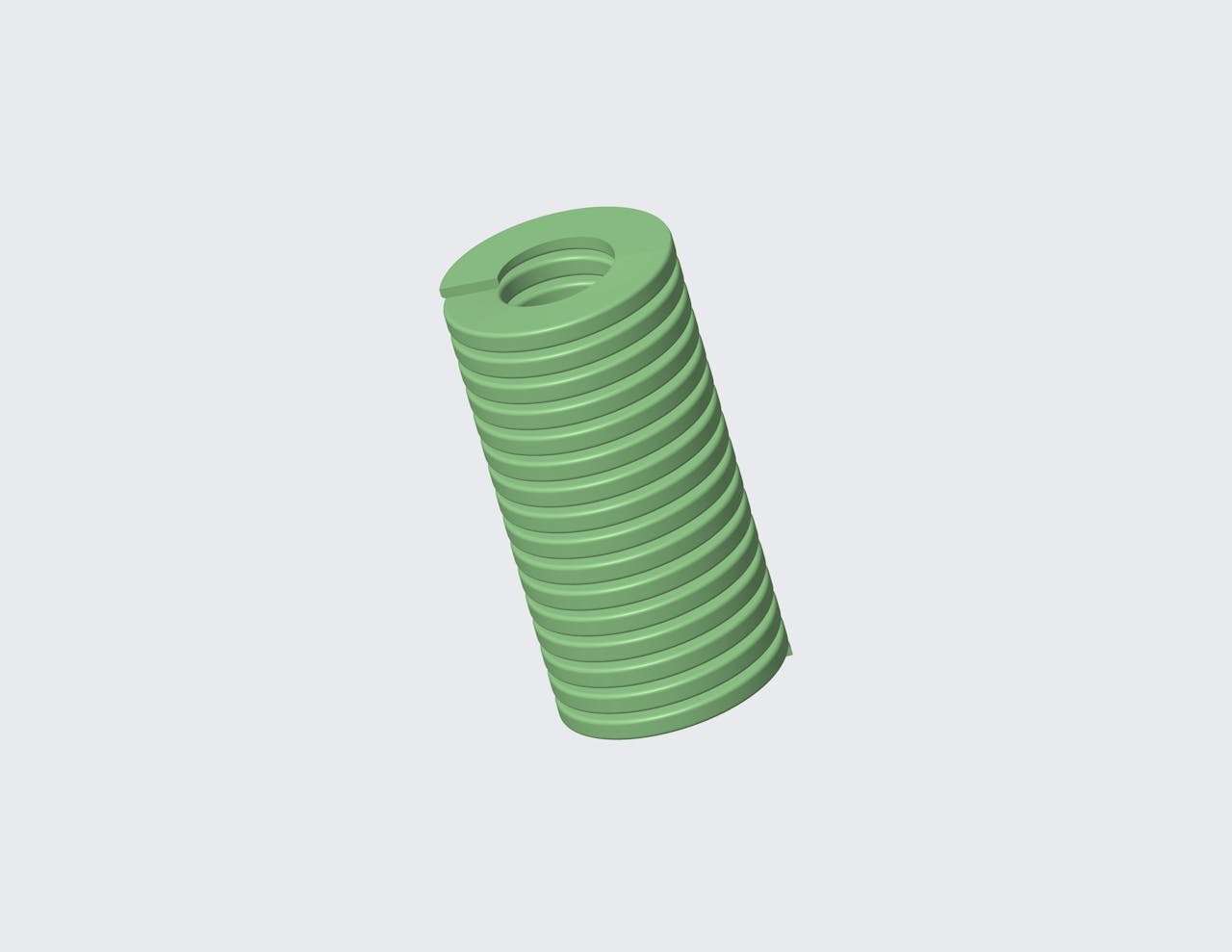

D-306714CS - 89 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 89 Millimeter long and has a 314 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5945 in
Deflection 2 0.7008 in
Deflection 3 0.878 in
Display Name D-306714
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 3.5039 in
Hole Size 1.5748 in
Load 1 1067.8957 lbf
Load 2 1256.295 lbf
Load 3 1570.3687 lbf
Load At Max Deflection 1863.3094 lbf
Material Chrome Silicon
Max Deflection 1.0394 in
Measurement Units Metric
Rate 1793.261 lbs/in
Rod Size 0.7874 in
SKU D-306714CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 15.1 mm
Deflection 2 17.8 mm
Deflection 3 22.3 mm
Display Name D-306714
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 89 mm
Hole Size 40 mm
Load 1 4750 N
Load 2 5588 N
Load 3 6985 N
Load At Max Deflection 8288 N
Material Chrome Silicon
Max Deflection 26.4 mm
Measurement Units Metric
Rate 314 N/mm
Rod Size 20 mm
SKU D-306714CS
