Century Spring

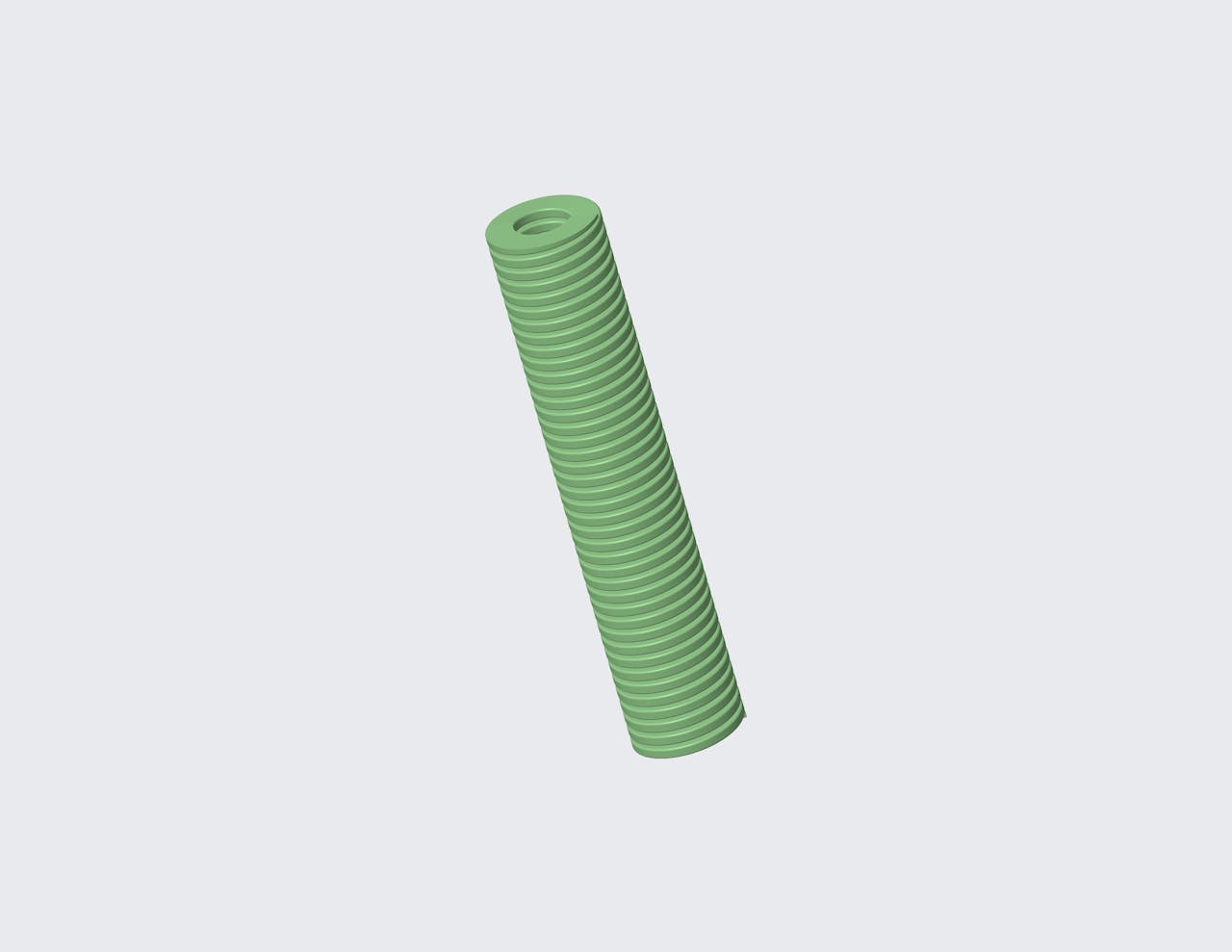

D-306628CS - 178 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 178 Millimeter long and has a 91.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.1929 in
Deflection 2 1.4016 in
Deflection 3 1.752 in
Display Name D-306628
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 7.0079 in
Hole Size 1.2598 in
Load 1 624.7752 lbf
Load 2 735.1619 lbf
Load 3 918.8399 lbf
Load At Max Deflection 1185.2518 lbf
Material Chrome Silicon
Max Deflection 2.2598 in
Measurement Units Metric
Rate 524.2718 lbs/in
Rod Size 0.6299 in
SKU D-306628CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.3 mm
Deflection 2 35.6 mm
Deflection 3 44.5 mm
Display Name D-306628
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 178 mm
Hole Size 32 mm
Load 1 2779 N
Load 2 3270 N
Load 3 4087 N
Load At Max Deflection 5272 N
Material Chrome Silicon
Max Deflection 57.4 mm
Measurement Units Metric
Rate 91.8 N/mm
Rod Size 16 mm
SKU D-306628CS
