Century Spring

D-306405CS - 32 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 32 Millimeter long and has a 244.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2126 in
Deflection 2 0.252 in
Deflection 3 0.315 in
Display Name D-306405
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow

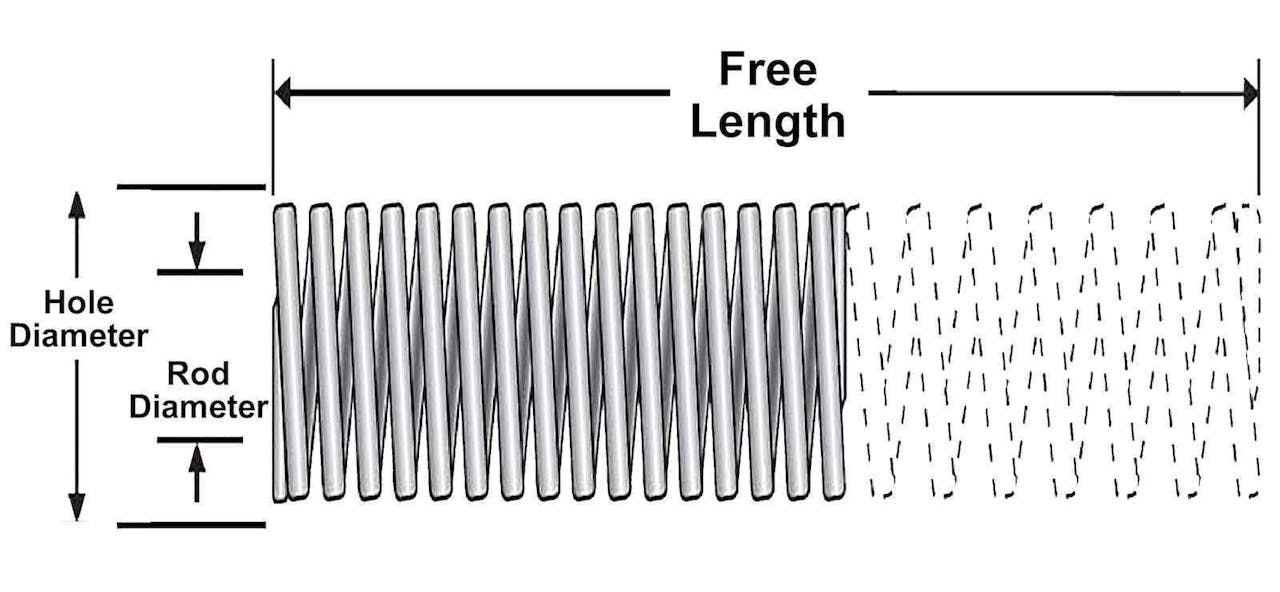

Free Length 1.2598 in
Hole Size 0.7874 in
Load 1 290.2428 lbf
Load 2 341.277 lbf
Load 3 426.7086 lbf
Load At Max Deflection 451.4388 lbf
Material Chrome Silicon
Max Deflection 0.3228 in
Measurement Units Metric
Rate 1398.6294 lbs/in
Rod Size 0.3937 in
SKU D-306405CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 5.4 mm
Deflection 2 6.4 mm
Deflection 3 8 mm
Display Name D-306405
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 32 mm
Hole Size 20 mm
Load 1 1291 N
Load 2 1518 N
Load 3 1898 N
Load At Max Deflection 2008 N
Material Chrome Silicon
Max Deflection 8.2 mm
Measurement Units Metric
Rate 244.9 N/mm
Rod Size 10 mm
SKU D-306405CS
