Century Spring

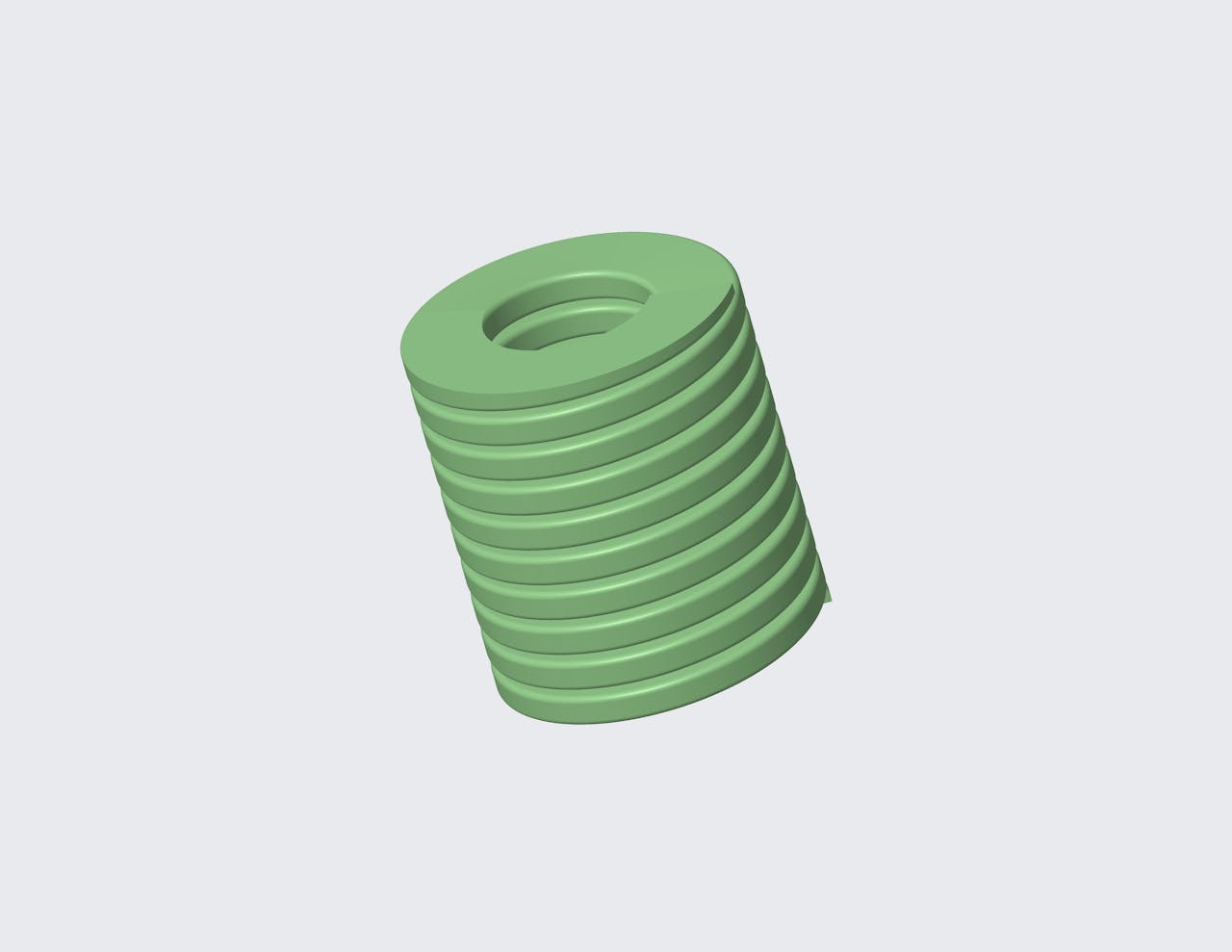

D-306404CS - 25 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 25 Millimeter long and has a 326.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.1693 in
Deflection 2 0.1969 in
Deflection 3 0.248 in
Display Name D-306404
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 0.9843 in
Hole Size 0.7874 in
Load 1 302.3831 lbf
Load 2 355.8903 lbf
Load 3 444.6942 lbf
Load At Max Deflection 447.8417 lbf
Material Chrome Silicon
Max Deflection 0.2402 in
Measurement Units Metric
Rate 1864.6488 lbs/in
Rod Size 0.3937 in
SKU D-306404CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 4.3 mm
Deflection 2 5 mm
Deflection 3 6.3 mm
Display Name D-306404
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 25 mm
Hole Size 20 mm
Load 1 1345 N
Load 2 1583 N
Load 3 1978 N
Load At Max Deflection 1992 N
Material Chrome Silicon
Max Deflection 6.1 mm
Measurement Units Metric
Rate 326.5 N/mm
Rod Size 10 mm
SKU D-306404CS
