Century Spring

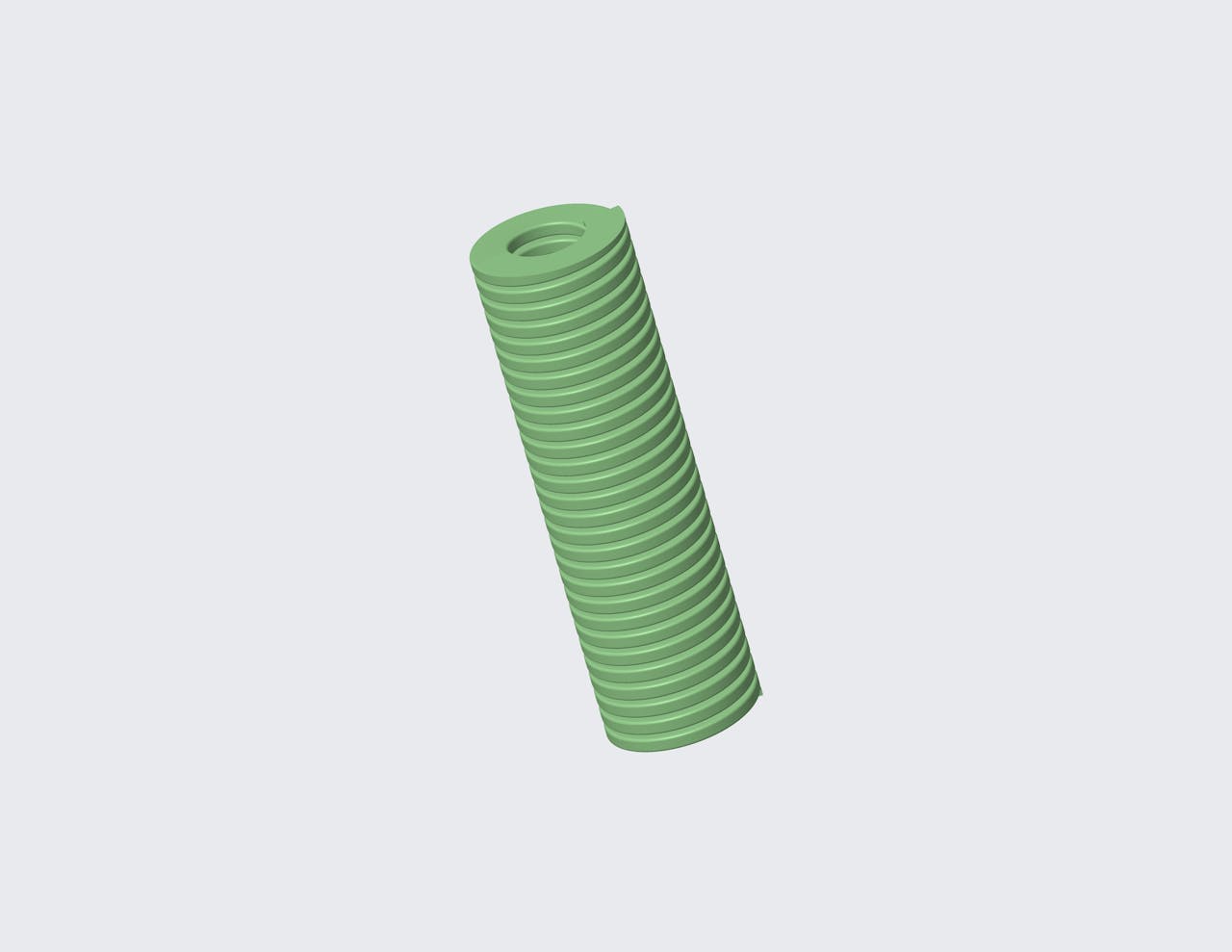

D-306106CS - 38 Millimeter Extra Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Extra Heavy duty. This spring is 38 Millimeter long and has a 23.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2559 in
Deflection 2 0.2992 in
Deflection 3 0.374 in
Display Name D-306106
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 1.4961 in
Hole Size 0.3937 in
Load 1 33.723 lbf
Load 2 39.7932 lbf
Load 3 49.6853 lbf
Load At Max Deflection 60.027 lbf
Material Chrome Silicon
Max Deflection 0.4528 in
Measurement Units Metric
Rate 133.0668 lbs/in
Rod Size 0.1969 in
SKU D-306106CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 6.5 mm
Deflection 2 7.6 mm
Deflection 3 9.5 mm
Display Name D-306106
Duty Load Extra Heavy
Finish Powder Coat
Finish Color Yellow
Free Length 38 mm
Hole Size 10 mm
Load 1 150 N
Load 2 177 N
Load 3 221 N
Load At Max Deflection 267 N
Material Chrome Silicon
Max Deflection 11.5 mm
Measurement Units Metric
Rate 23.3 N/mm
Rod Size 5 mm
SKU D-306106CS
