Century Spring

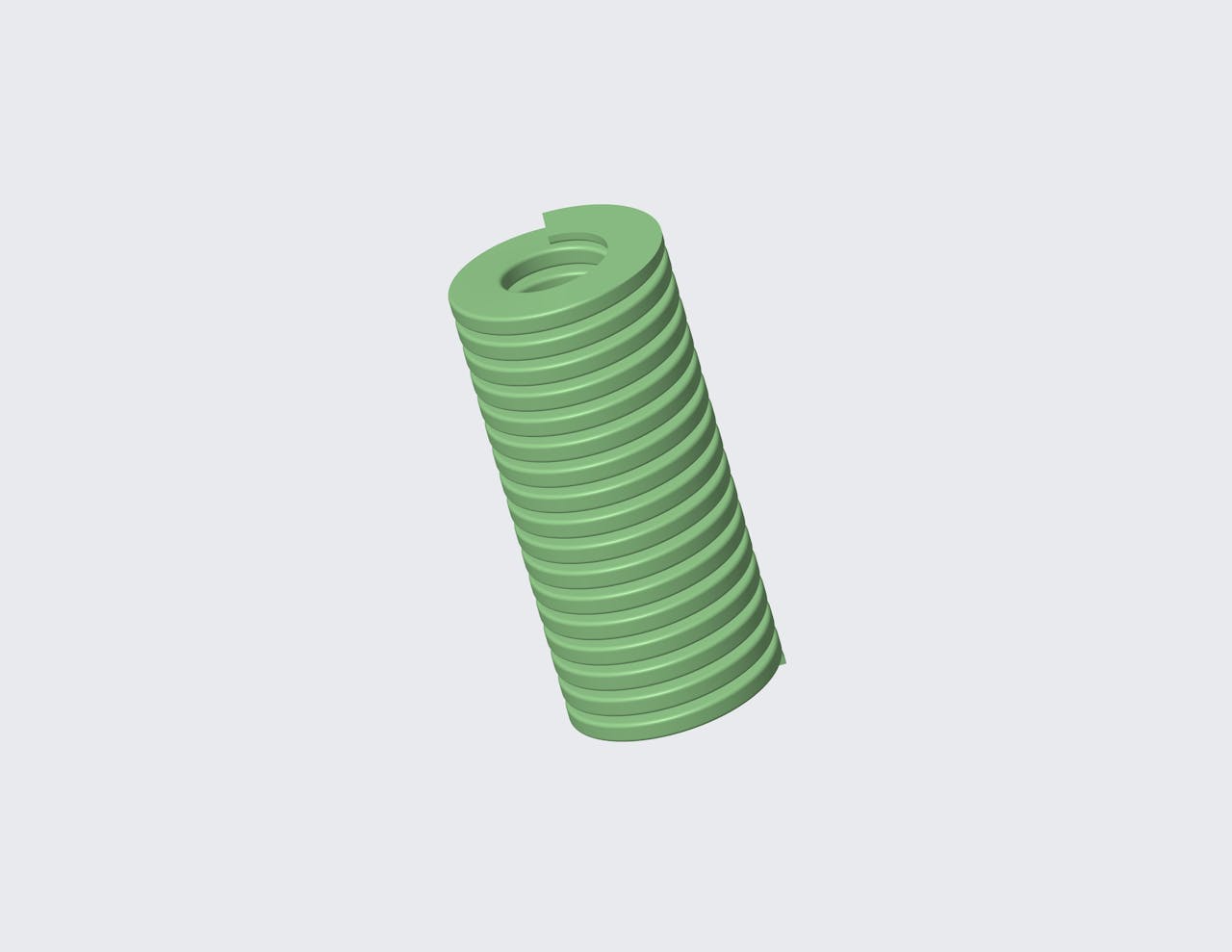

D-305820CS - 127 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 127 Millimeter long and has a 189.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1 in
Deflection 2 1.252 in
Deflection 3 1.5 in
Display Name D-305820
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 5 in
Hole Size 1.9685 in
Load 1 1080.036 lbf
Load 2 1350.045 lbf
Load 3 1619.8291 lbf
Load At Max Deflection 1900.6295 lbf
Material Chrome Silicon
Max Deflection 1.7598 in
Measurement Units Metric
Rate 1079.9543 lbs/in
Rod Size 0.9843 in
SKU D-305820CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.4 mm
Deflection 2 31.8 mm
Deflection 3 38.1 mm
Display Name D-305820
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 127 mm
Hole Size 50 mm
Load 1 4804 N
Load 2 6005 N
Load 3 7205 N
Load At Max Deflection 8454 N
Material Chrome Silicon
Max Deflection 44.7 mm
Measurement Units Metric
Rate 189.1 N/mm
Rod Size 25 mm
SKU D-305820CS
