Century Spring

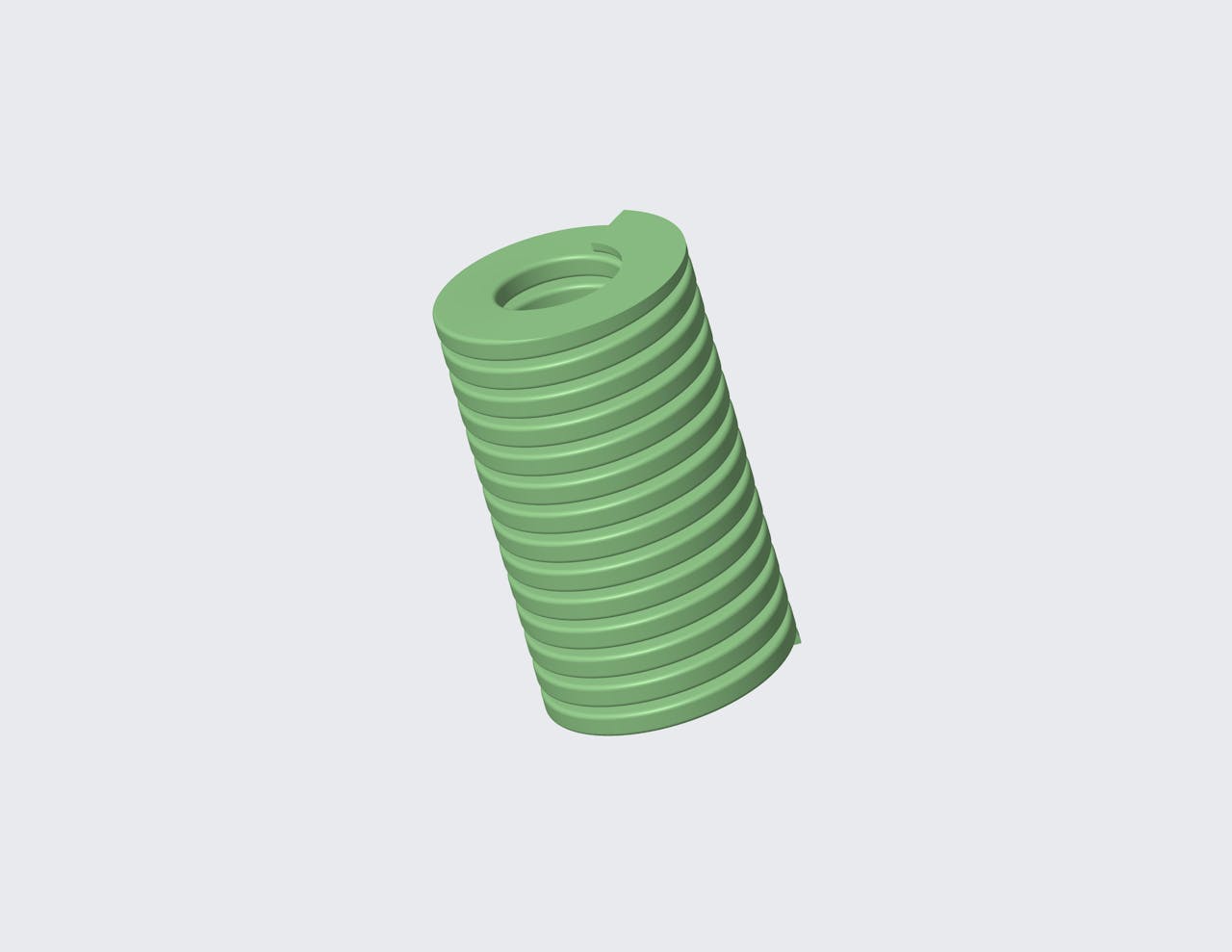

D-305610CS - 64 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 64 Millimeter long and has a 204.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6299 in
Deflection 3 0.7559 in
Display Name D-305610
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 2.5197 in
Hole Size 1.2598 in
Load 1 587.9047 lbf
Load 2 734.9371 lbf
Load 3 881.9694 lbf
Load At Max Deflection 955.4856 lbf
Material Chrome Silicon
Max Deflection 0.8189 in
Measurement Units Metric
Rate 1166.7619 lbs/in
Rod Size 0.6299 in
SKU D-305610CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 16 mm
Deflection 3 19.2 mm
Display Name D-305610
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 64 mm
Hole Size 32 mm
Load 1 2615 N
Load 2 3269 N
Load 3 3923 N
Load At Max Deflection 4250 N
Material Chrome Silicon
Max Deflection 20.8 mm
Measurement Units Metric
Rate 204.3 N/mm
Rod Size 16 mm
SKU D-305610CS
