Century Spring

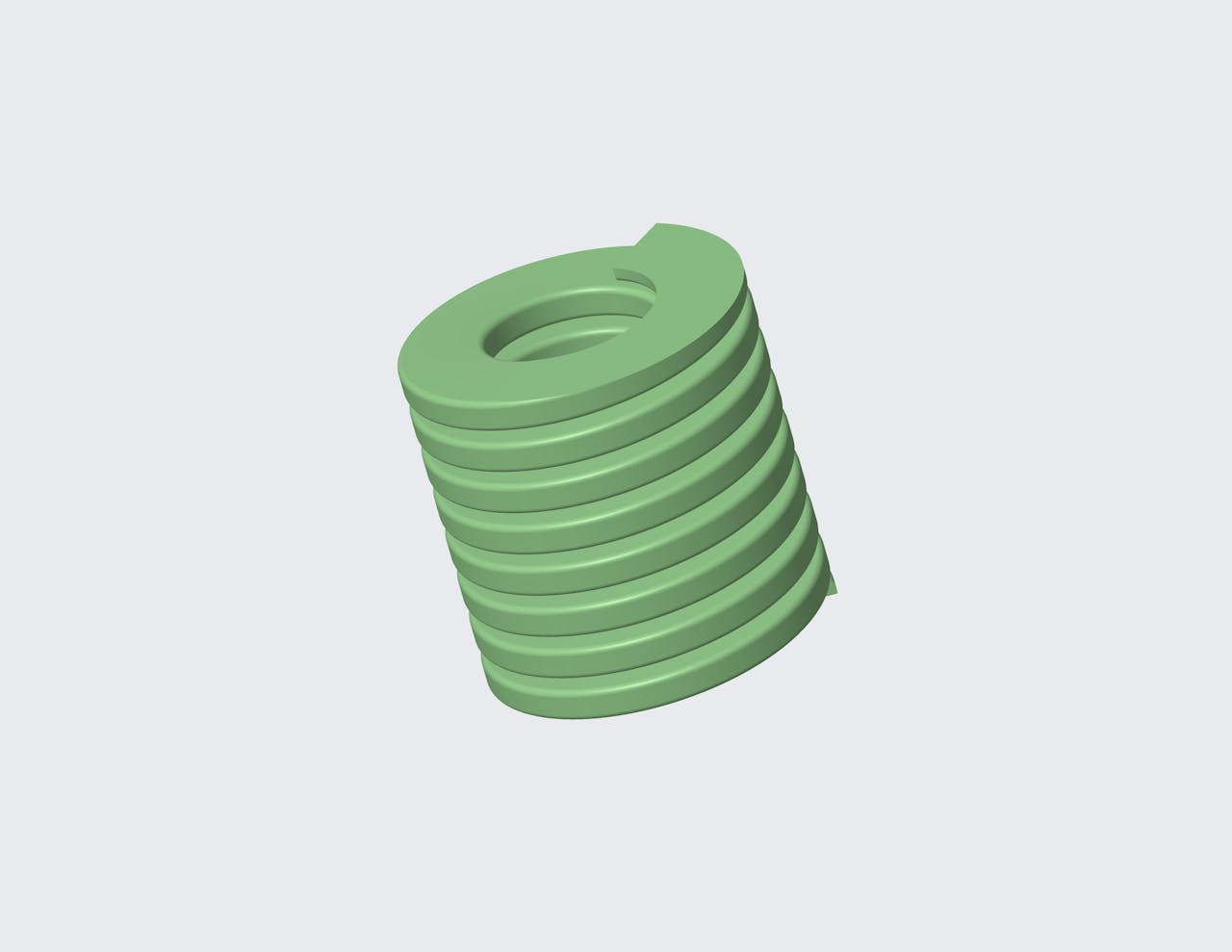

D-305606CS - 38 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 38 Millimeter long and has a 387.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2992 in
Deflection 2 0.374 in
Deflection 3 0.4488 in
Display Name D-305606
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 1.4961 in
Hole Size 1.2598 in
Load 1 661.6457 lbf
Load 2 826.8885 lbf
Load 3 992.3561 lbf
Load At Max Deflection 1096.8975 lbf
Material Chrome Silicon
Max Deflection 0.4961 in
Measurement Units Metric
Rate 2211.3078 lbs/in
Rod Size 0.6299 in
SKU D-305606CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 7.6 mm
Deflection 2 9.5 mm
Deflection 3 11.4 mm
Display Name D-305606
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 38 mm
Hole Size 32 mm
Load 1 2943 N
Load 2 3678 N
Load 3 4414 N
Load At Max Deflection 4879 N
Material Chrome Silicon
Max Deflection 12.6 mm
Measurement Units Metric
Rate 387.2 N/mm
Rod Size 16 mm
SKU D-305606CS
