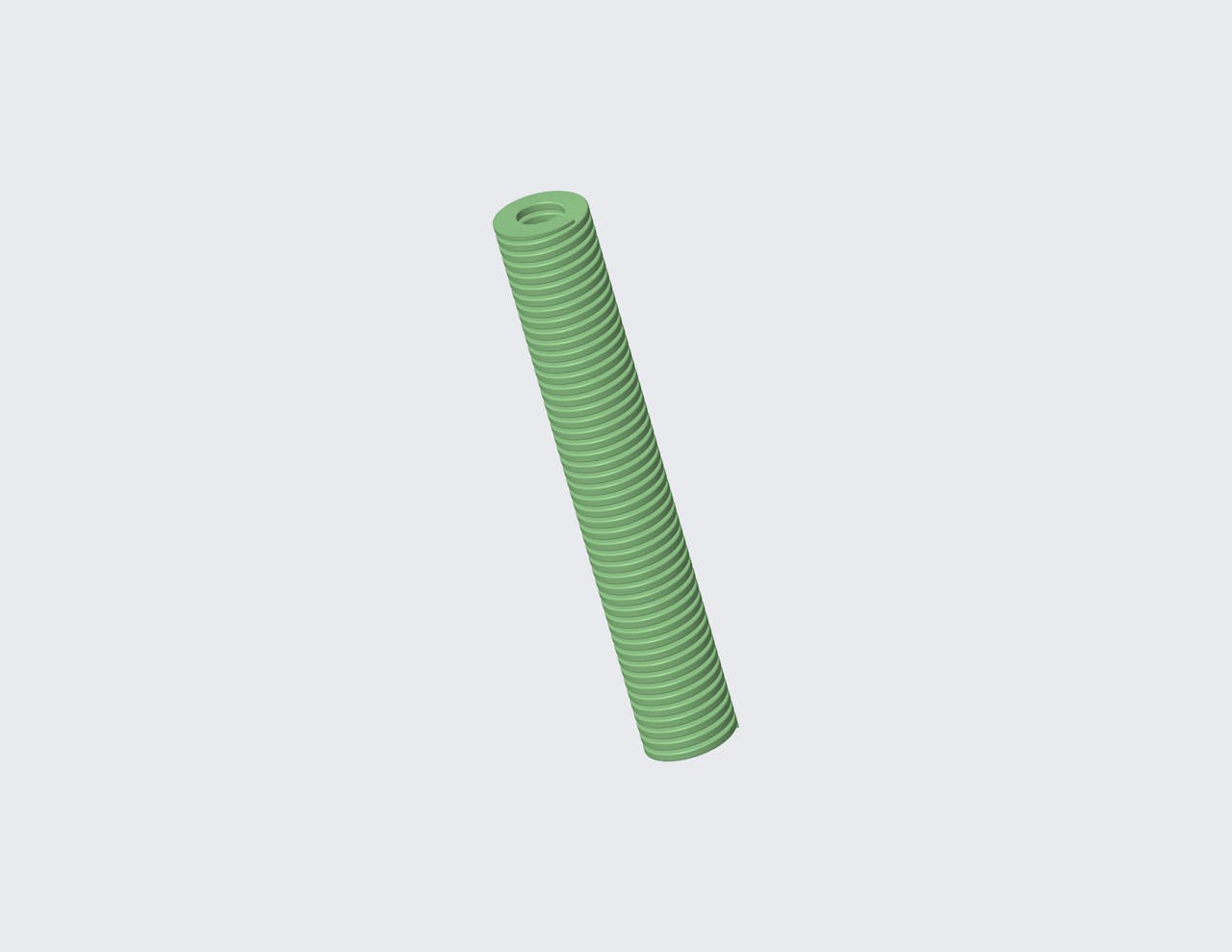

D-305528CS - 178 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 178 Millimeter long and has a 45.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.4016 in
Deflection 2 1.752 in
Deflection 3 2.1024 in
Display Name D-305528
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 7.0079 in
Hole Size 0.9843 in
Load 1 361.7356 lbf
Load 2 452.3381 lbf
Load 3 542.7158 lbf
Load At Max Deflection 661.6457 lbf
Material Chrome Silicon
Max Deflection 2.563 in
Measurement Units Metric
Rate 258.1382 lbs/in
Rod Size 0.4921 in
SKU D-305528CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 35.6 mm
Deflection 2 44.5 mm
Deflection 3 53.4 mm
Display Name D-305528
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 178 mm
Hole Size 25 mm
Load 1 1609 N
Load 2 2012 N
Load 3 2414 N
Load At Max Deflection 2943 N
Material Chrome Silicon
Max Deflection 65.1 mm
Measurement Units Metric
Rate 45.2 N/mm
Rod Size 12.5 mm
SKU D-305528CS
